Robust and tested: The MKS, SKS and EKS cable tray systems from OBO
The cable tray systems from OBO Bettermann can look back on a long tradition:
For 45 years, the robust systems have been successfully employed by planners and specialists in the field of electrical installations – and for good reason: They are not only robust but also tested for different areas of application.

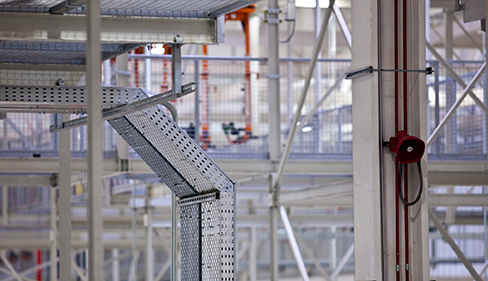

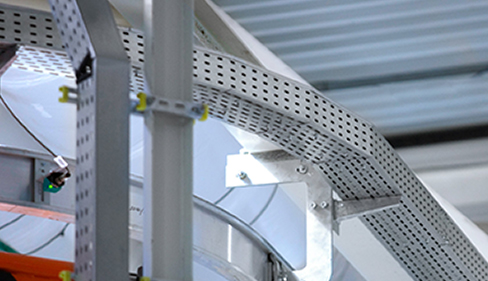

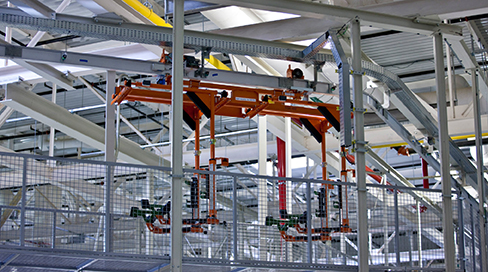

OBO cable tray systems are suitable for a wide range of areas of application, such as the BMW plant in Spartanburg, seen here.
OBO cable tray systems: Wide-ranging areas of application
The MKS, SKS and EKS cable tray systems have proved their worth in indoor and outdoor areas, both in industrial environments as well as in public buildings.
They can be used on ships just as much as in tunnels or in the construction of power stations and mines.
Mastering all the challenges of the construction site with cable trays of OBO quality
The different versions of the medium-duty, heavy-duty and extra-heavy-duty cable trays are intrinsically closed systems, comprising all the necessary fittings and accessories.
With the cable trays in the kind of quality OBO is known for, all the requirements for electrical installations on the construction site can be mastered professionally and safely.
Advantages of the cable tray systems at a glance
- Tested quality: The OBO cable tray systems fulfil the highest quality requirements and are also tested according to UL and VDE criteria.
- Maximum load capacity: The robust cable trays from OBO stand out through their load capacity. Their load capacity according to DIN EN 61537 was tested and confirmed in the OBO BET Test Centre.
- Can be used in escape and rescue routes: The OBO cable tray systems can be used in false ceiling areas of escape and rescue routes, as they have a proven mechanical stability of 30 minutes in cases of fire.
Medium-duty, heavy-duty and extra-heavy-duty cable tray systems
Depending on the area of application and the load, the OBO product range can offer you the right cable tray system for your requirements:
The cable trays are available in the material thicknesses 1.0 mm, 1.5 mm and 2.0 mm. Various system heights and widths are available. An unperforated version is also available. Wall and ceiling mounting is possible with threaded rods, suspended supports, and wall and support brackets.
The heavy-duty cable tray can also be used as a standard support structure for the maintenance of electrical function classes E60 to E90.
