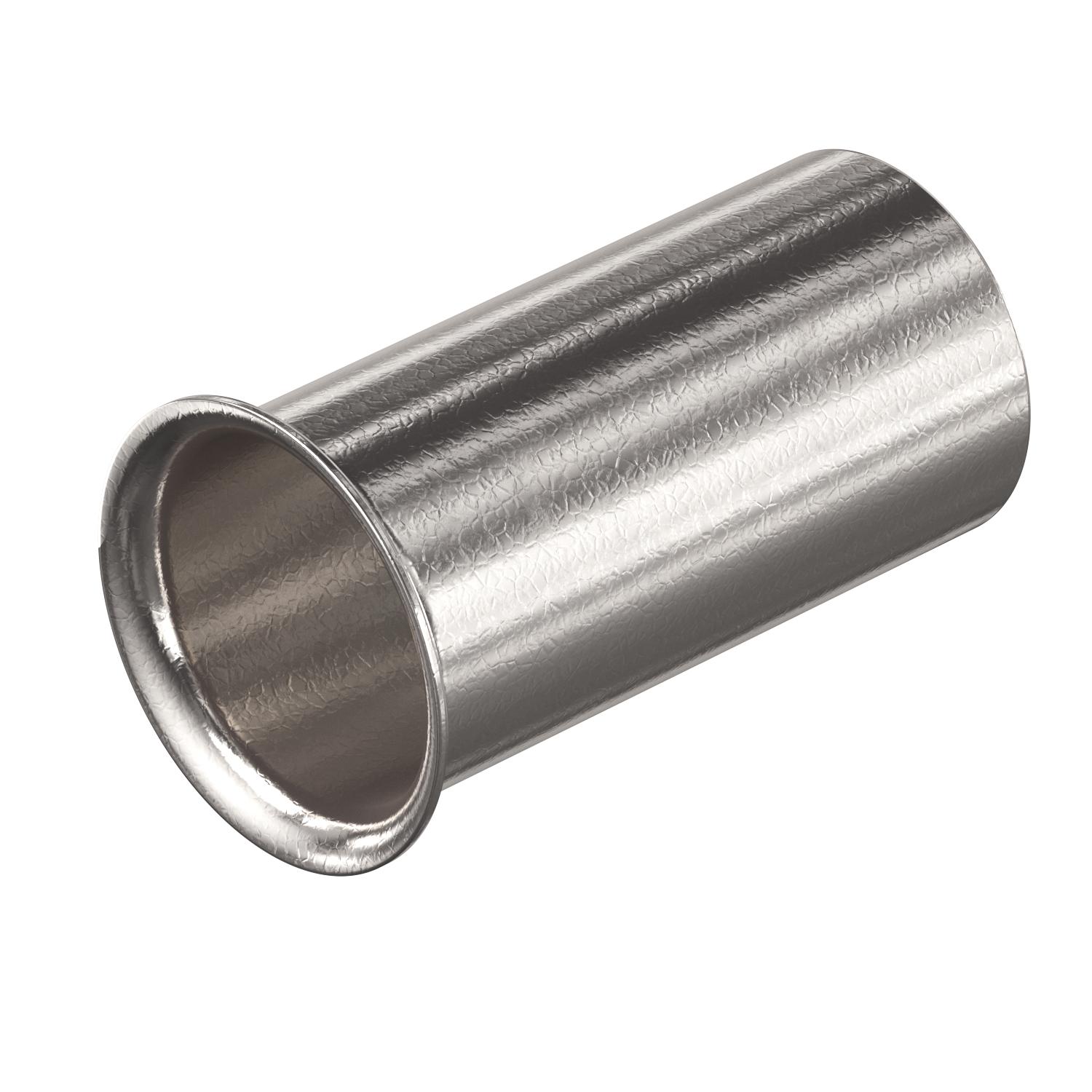

Wire end sleeve for aluminium cables 50 mm²
Item no. 5021740 | EAN 4012196792245
- Product description
-
Product description
Wire end sleeve for secure fixing of the aluminium cable with a cross-section of 50 mm².
- Technical data
-
Technical data

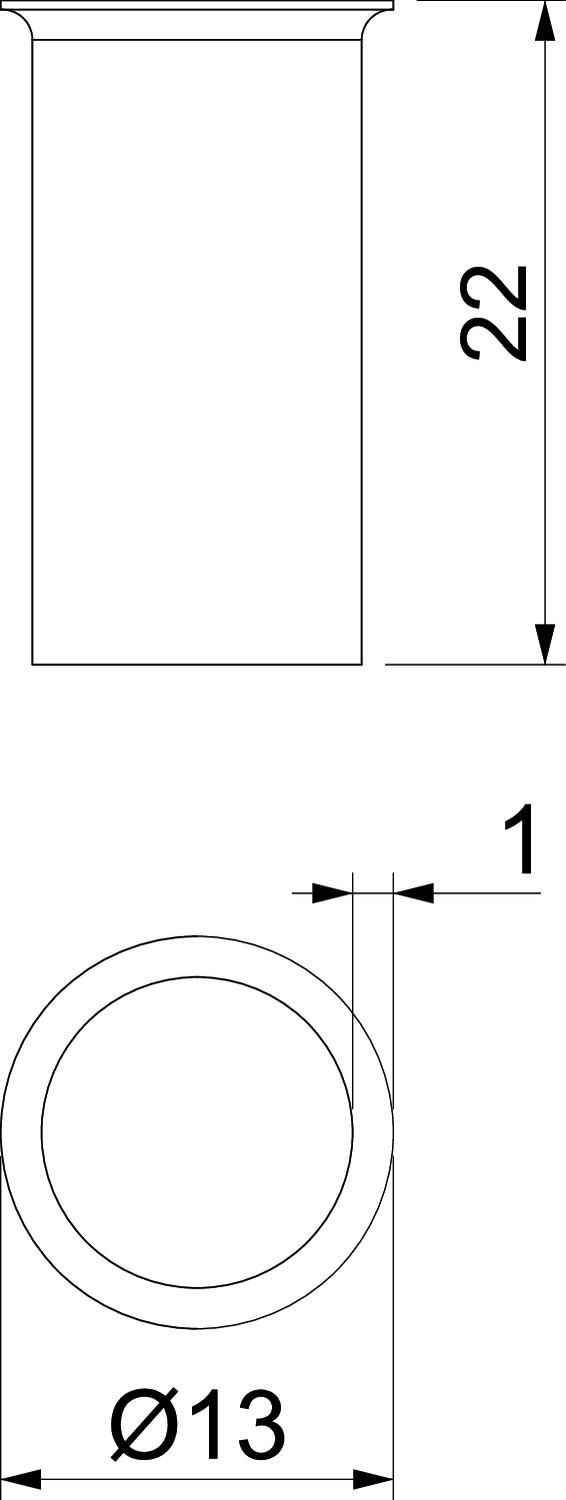

Dimension 10x22 Dimension L 22 mm Fit 9 mm mm for cable diameter, max. 9 mm for cable diameter, min. 9 mm Insulator no Length 22 mm Material Copper Surface Tin-plated Type wire end sleeve Standard Usable cross-section 50 mm² - All types
- Downloads
-
Data sheet AEH S 9-AL / 5021740 , 0.24MB , pdf
