Wall and support bracket AW 55 FT
Item no. 6418554 | EAN 4012196204731
- Product description
-
Product descriptionHeavy-duty wall and support bracket with welded head plate.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Colour zinc Dimension B210mm Dimension A 50 mm Dimension B 210 mm Dimension H 90 mm EPD article yes F in kN 5,5 kN Height 90 mm Hole diameter 13,5 mm Length 50 mm Maintain electrical functions yes Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Wall and support bracket Width 210 mm Technical data

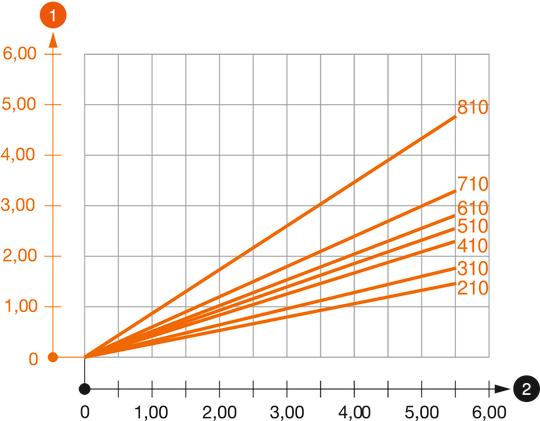

Load diagram, bracket, type AW 55
-
Bending of the bracket tip at permitted bracket load
-
Permitted bracket load in kN without man load
-
Load curve with bracket lengths in mm
-
