Wall and support bracket AW 30 FT
Item no. 6419720 | EAN 4012196206711
- Product description
-

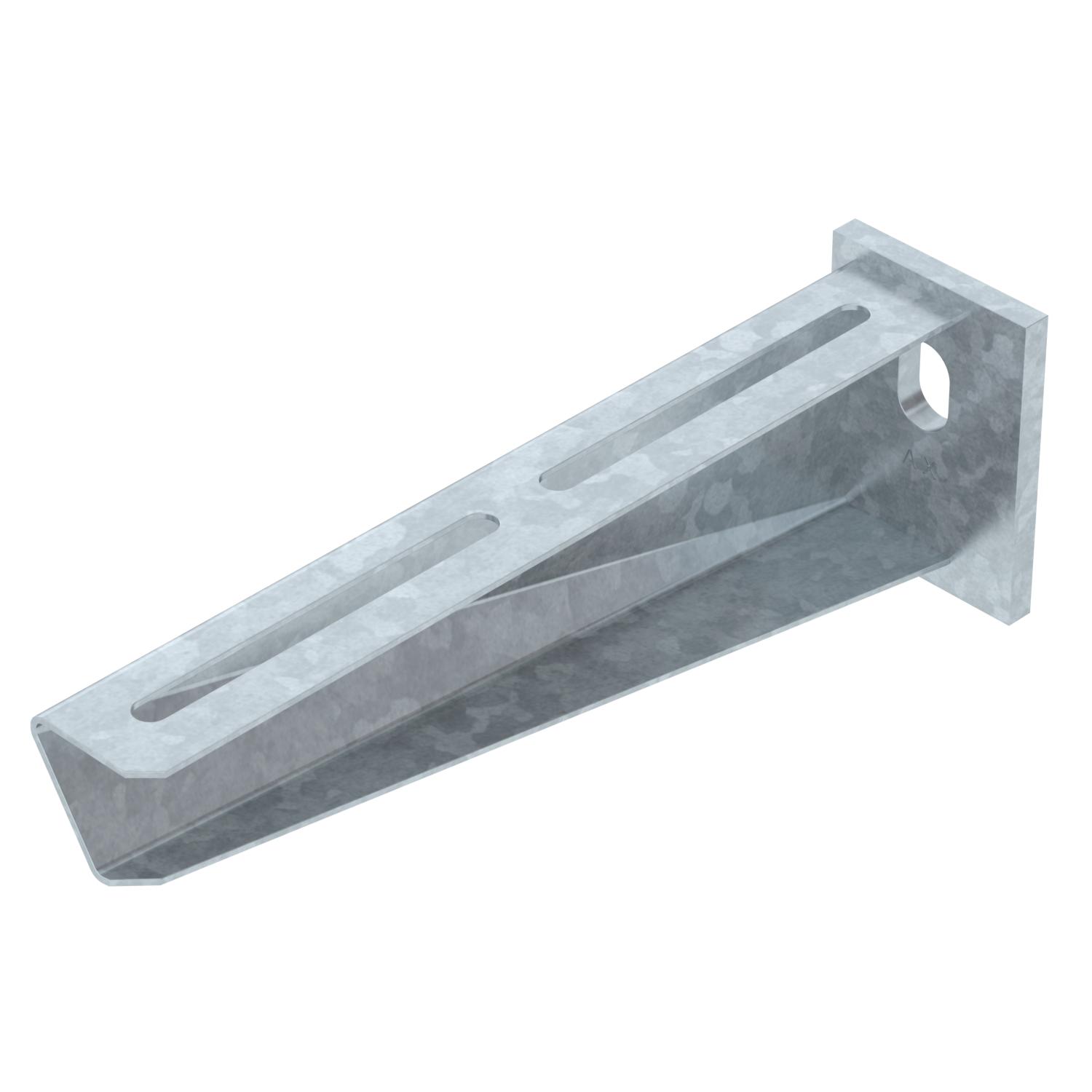

Product descriptionMedium-duty wall and support bracket with welded head plate.
-
- Technical data
-
Technical data

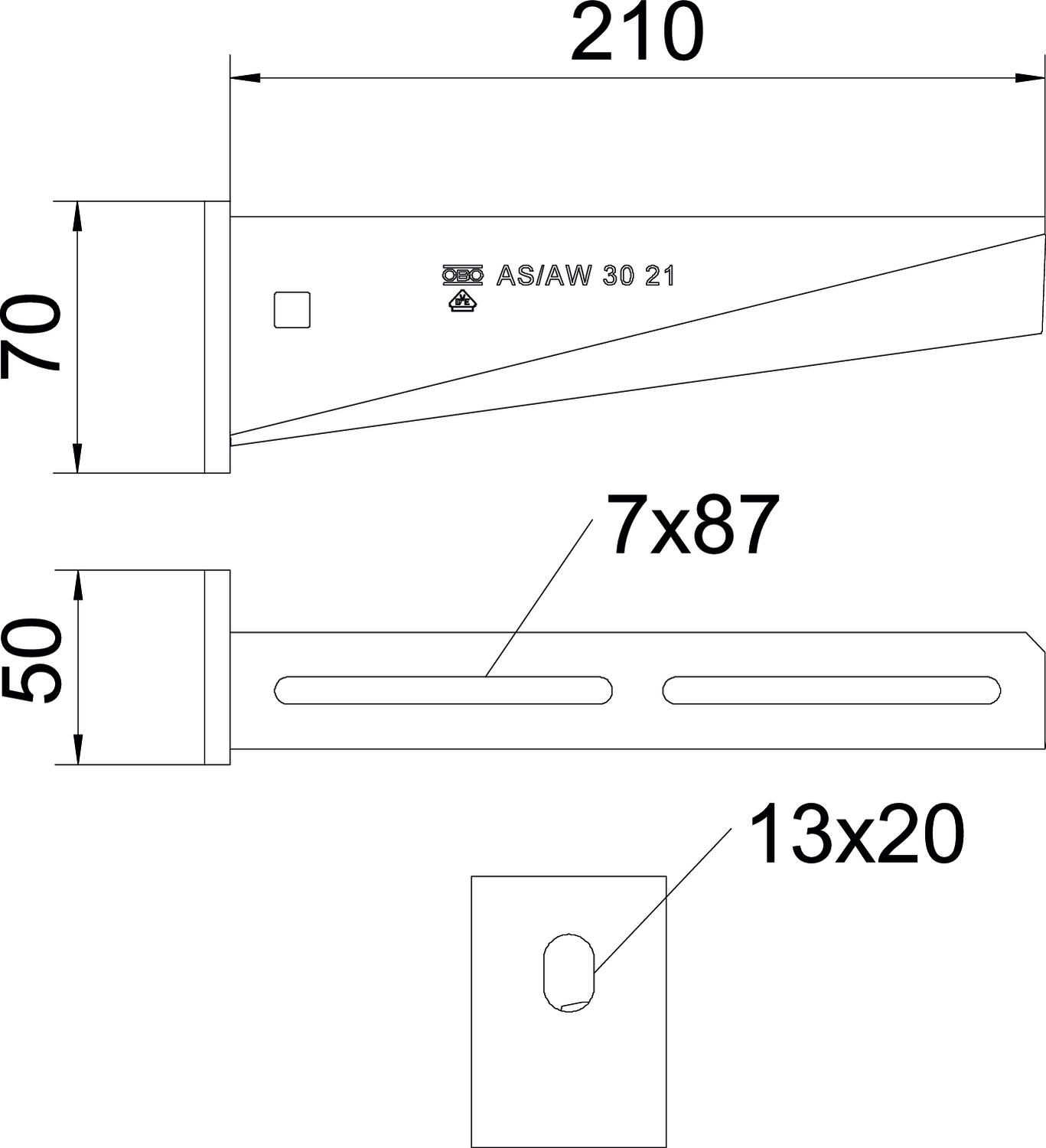

Angle range, max. 90 mm Angle range, min. 90 mm Colour zinc Dimension B210mm Dimension A 50 mm Dimension B 210 mm Dimension H 70 mm EPD article yes F in kN 3 kN Height 70 mm Hole diameter 13 mm Length 50 mm Maintain electrical functions yes Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Wall and support bracket Width 210 mm Technical data
Load diagram, bracket, type AW 30
-
Bending of the bracket tip at permitted bracket load
-
Permitted bracket load in kN without man load
-
Load curve with bracket lengths in mm
-
