Wall and clamping bracket AWSS FT

Item no. 6417930 | EAN 4012196340637

Item no. / Types

Width

F in kN

Product description

Product description

Wall bracket, heavy duty.

Technical data

Technical data

Colour	zinc
Dimension	B810mm
Dimension A	400 mm
Dimension b	160 mm
Dimension B	810 mm
Dimension b1	240 mm
Dimension b2	320 mm
Dimension H	341 mm
F in kN	7 kN

Height	341 mm
Hole diameter	14 mm
Length	400 mm
Maintain electrical functions	no
Material	Steel
Rustproof steel, pickled	no
Surface	Hot-dip galvanised
Version for	Wall brackets
Width	810 mm

All types

All types

Types	Width	F in kN	Item no.	Quantity	SSU
AWSS 21 FT	210 mm	10 kN	6417906	piece	1 piece
AWSS 31 FT	310 mm	10 kN	6417910	piece	1 piece
AWSS 41 FT	410 mm	10 kN	6417914	piece	1 piece
AWSS 51 FT	510 mm	10 kN	6417918	piece	1 piece
AWSS 61 FT	610 mm	10 kN	6417922	piece	1 piece
AWSS 71 FT	710 mm	8 kN	6417926	piece	1 piece
AWSS 81 FT	810 mm	7 kN	6417930	piece	1 piece
AWSS 91 FT	910 mm	6.5 kN	6417934	piece	1 piece
AWSS 101 FT	1010 mm	6 kN	6417938	piece	1 piece

Downloads

Data sheet AWSS 81 FT / 6417930 , 0.20MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

EU declaration of conformity AWSS 81 FT / 6417930 , 0.13MB , pdf

REACH Declaration of conformity AWSS 81 FT / 6417930 , 0.12MB , pdf

Download

RoHS Declaration of conformity AWSS 81 FT / 6417930 , 0.12MB , pdf

Download

Environmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

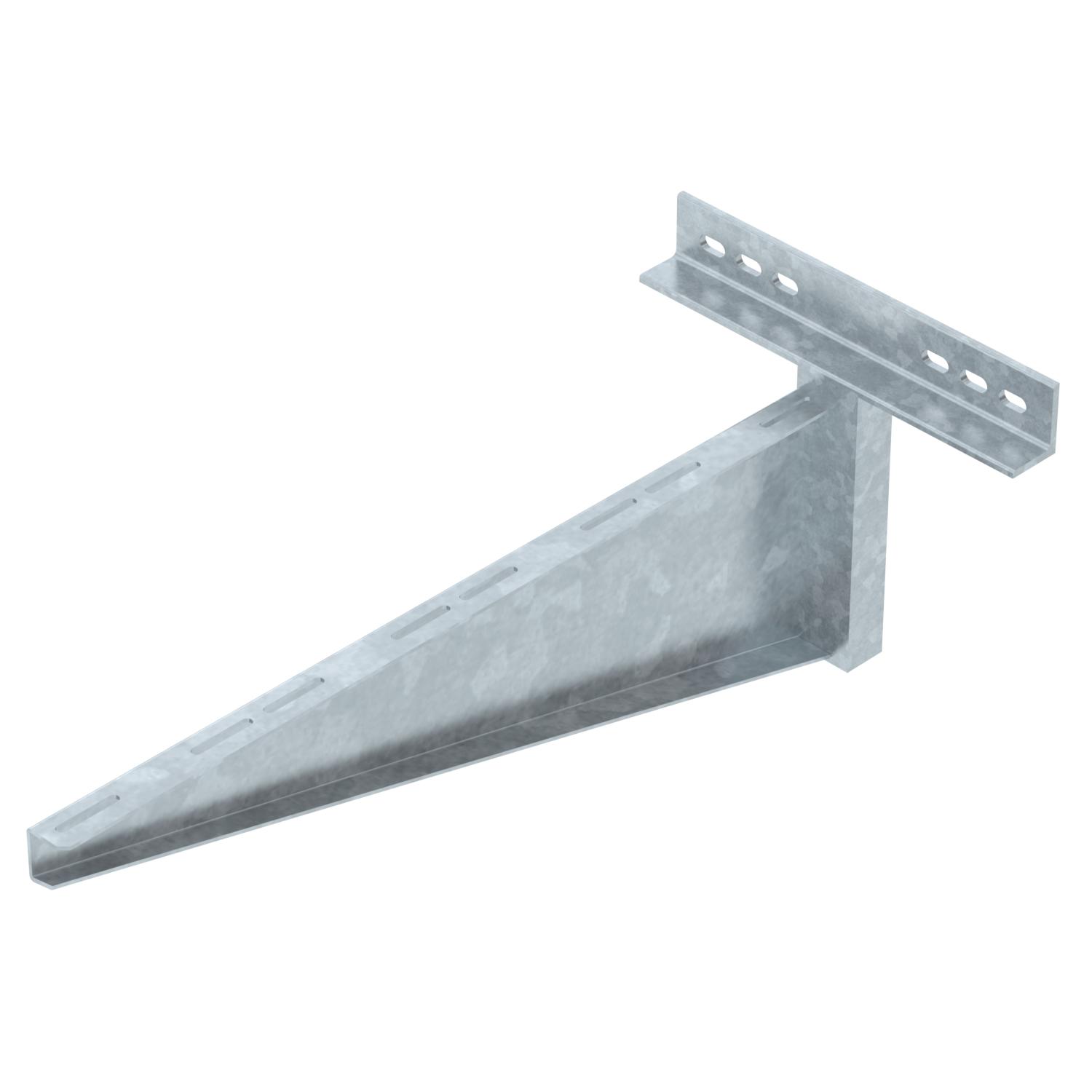

Product graphic AWSS 81 FT / 6417930, 54.41 kB, jpg

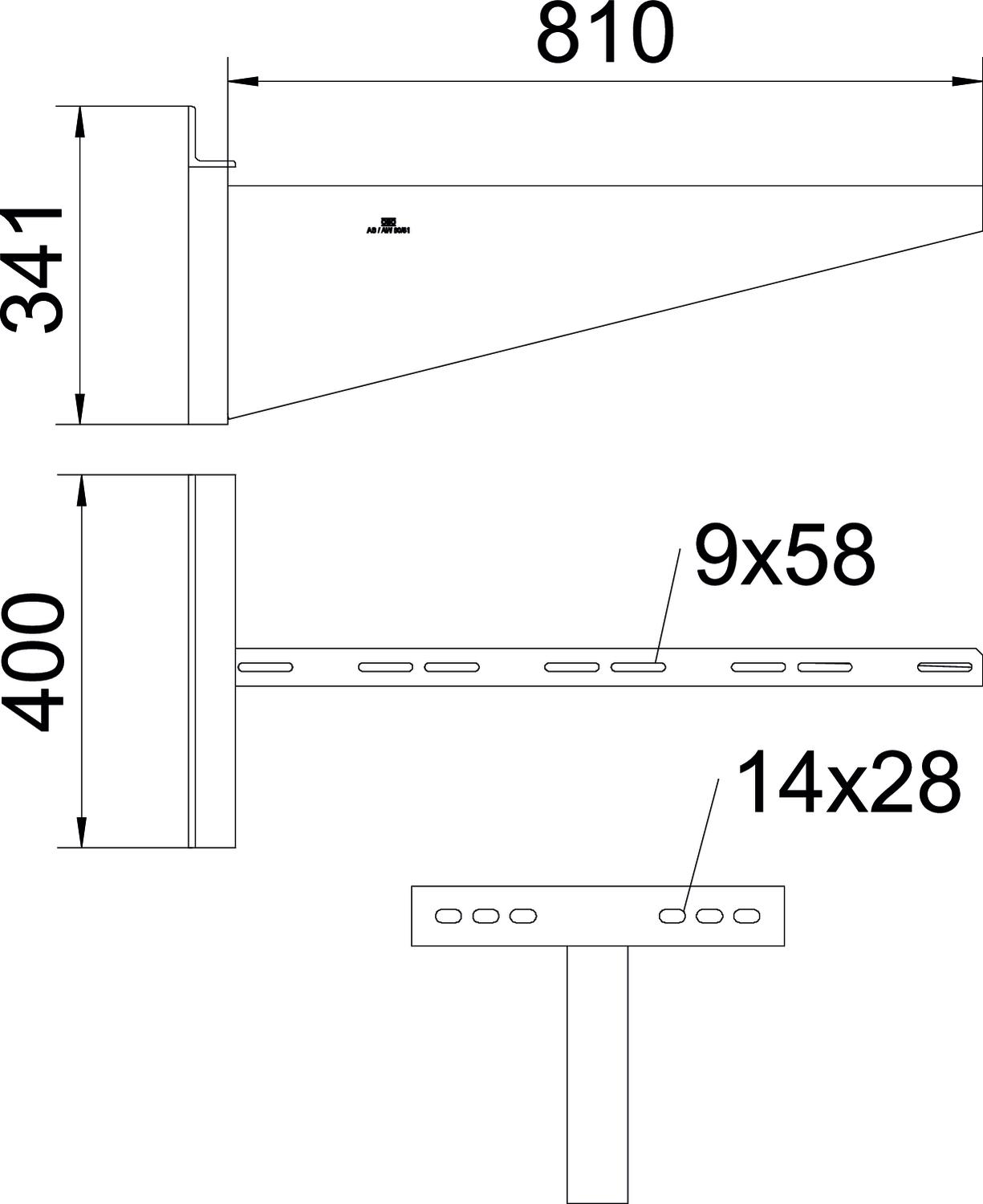

Scale drawing AWSS 81 FT / 6417930, 65.38 kB, jpg
