VHF cover plate, for 1x surface-mounted socket, type ASD
Item no. 6109856 | EAN 4012196169368
- Product description
-
Product description

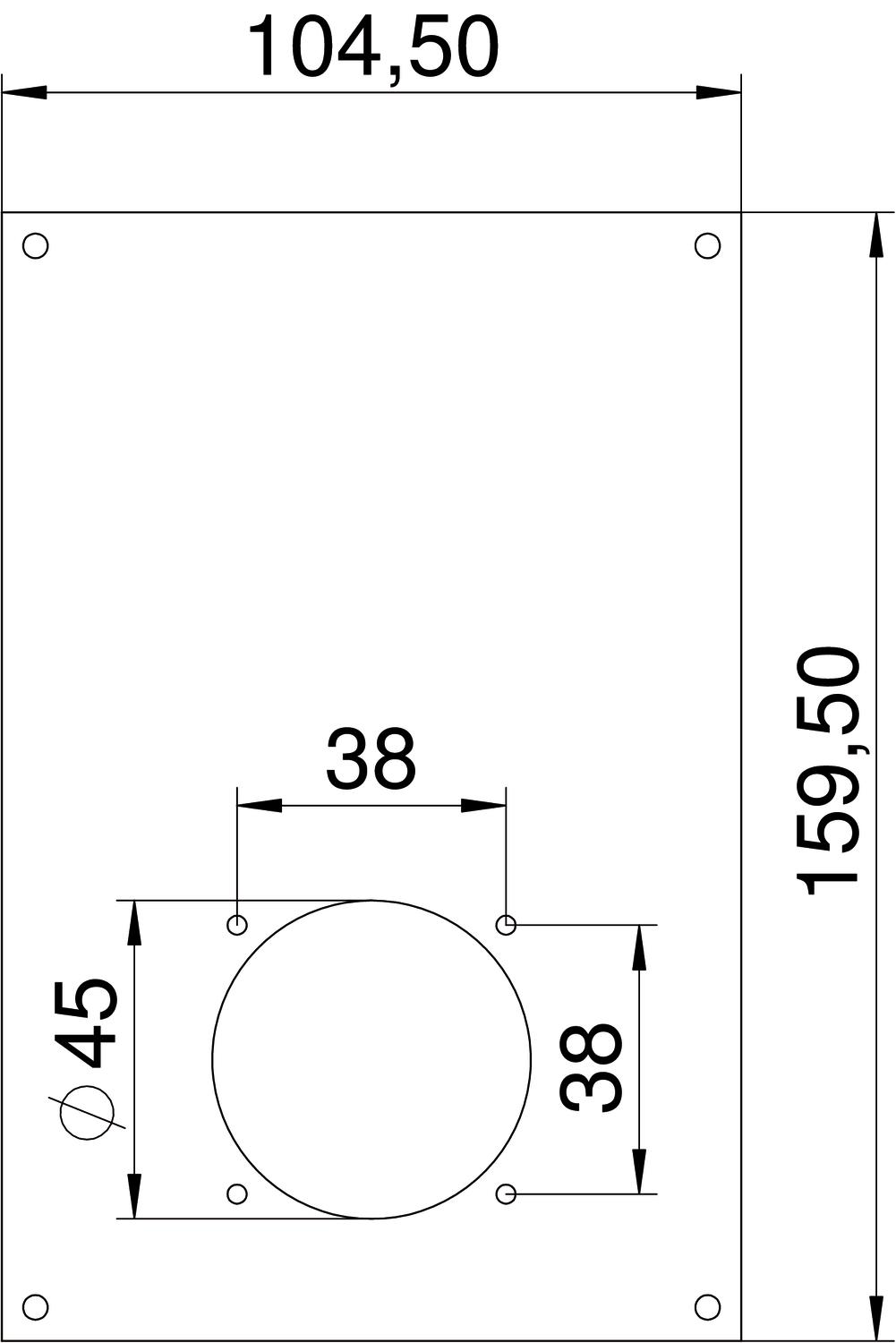

Cover plate with a Ø 45 mm opening for the installation of an extension socket (type ASD-...) with 38 mm fastening track, including 4 screws for fastening the device.
-
- Technical data
-
Technical data
Blanking lid no Colour Rape yellow; RAL 1021 Dimension 166x105mm Fastening type Screw-on Halogen-free no Installation technology Miscellaneous Material Polyvinylchloride Number of units 1 Opening shape Round Protection rating IP20 Dimensions
Height 159,5 mm Width 104,5 mm - All types
- Downloads
-
Data sheet VHF-P12 / 6109856 , 0.21MB , pdfCatalogue Installation systems , 28.45MB , pdfREACH Declaration of conformity VHF-P12 / 6109856 , 0.09MB , pdfRoHS Declaration of conformity VHF-P12 / 6109856 , 0.13MB , pdf
