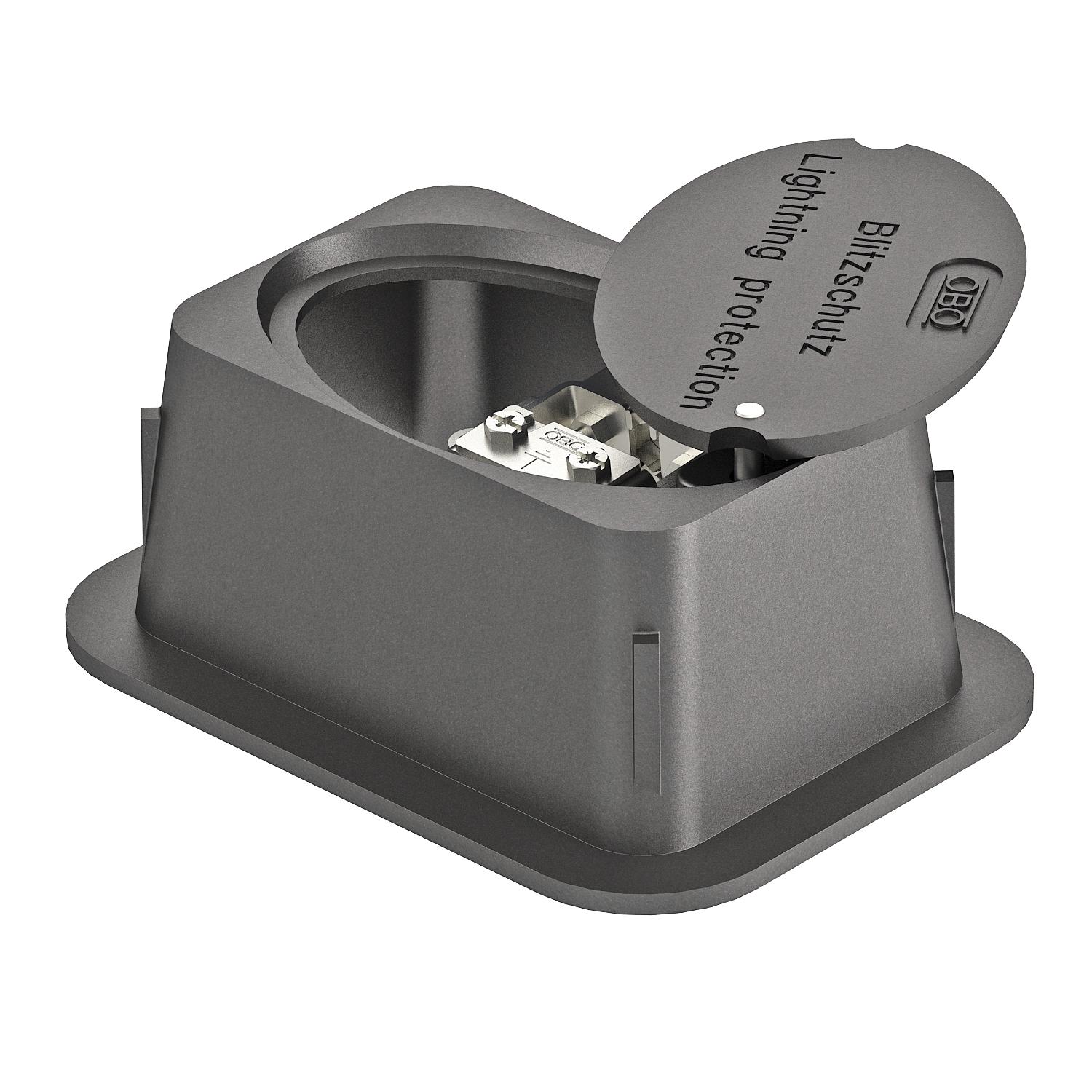

Underfloor test box with integrated separation point
Item no. 5106003 | EAN 4012196089512
- Product description
-
Product description
• Without base
• Cast iron, painted black
• With built-in cut-off unit for round conductors Rd 8-10 and flat conductors to FL 40
• To VDE 0185-561-5 (IEC 62561-5) suitable for heavy loads (up to 40 kN/4.0 t)
-
- Technical data
-
Technical data

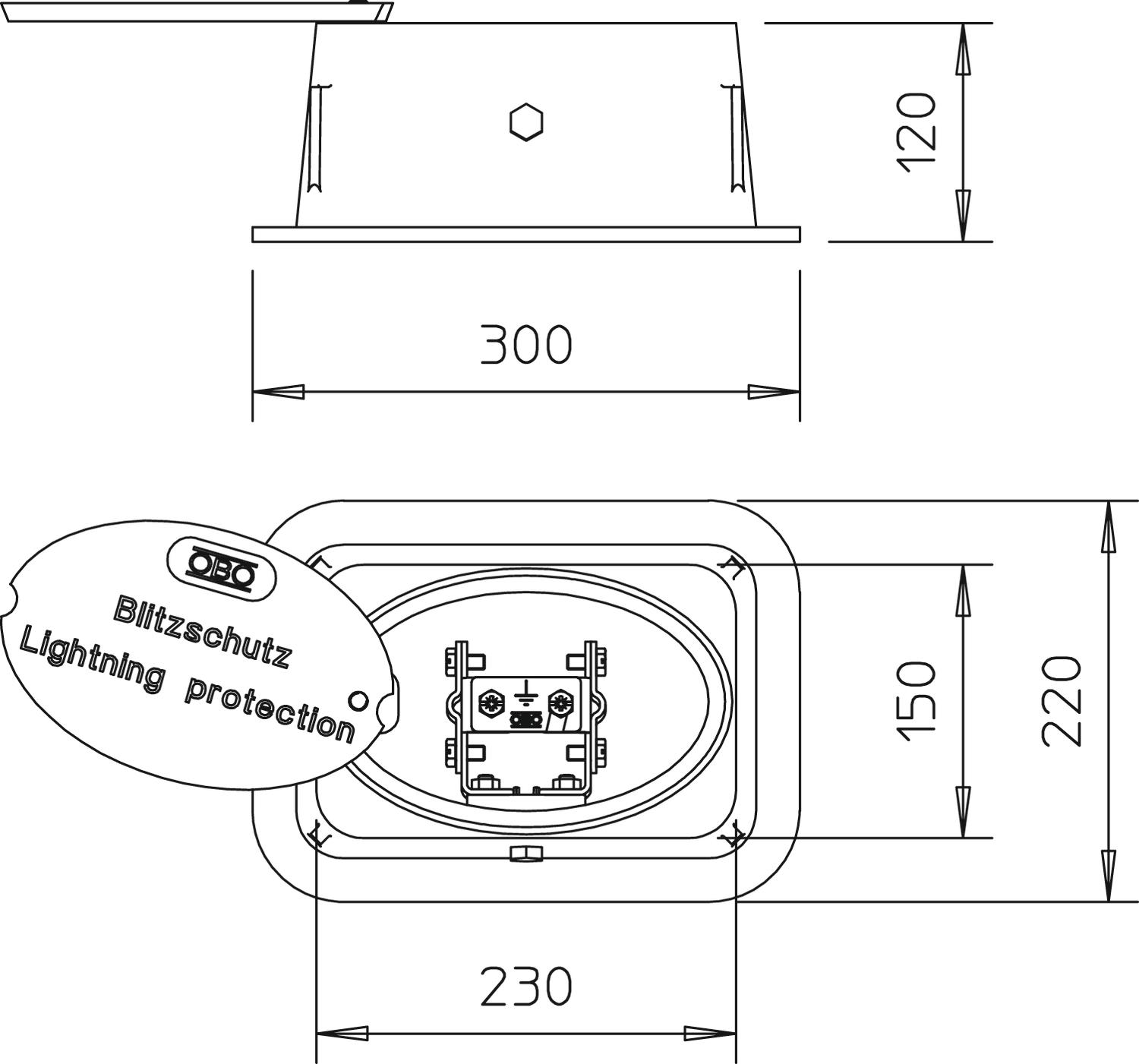

Colour Black CO₂ Footprint (GWP) Cradle-to-Gate 0,925 kg CO₂e / 1 Meter Dimension 227x155x115 Fit RD 8-10 x FL 30-40 mm Material Cast iron - All types
- Downloads
-
Data sheet 5700 SP / 5106003 , 0.23MB , pdfREACH Declaration of conformity 5700 SP / 5106003 , 0.12MB , pdfRoHS Declaration of conformity 5700 SP / 5106003 , 0.12MB , pdfMounting instructions Mounting instructions, 5700; 5700 SP , 2.00MB , pdf
