Trunking connector and joint cover Aluminium

Trunking connector and joint cover

Item no. 6113214 | EAN 4012196418268

Item no. / Types

Colour

Product description

Product description

Joint cover for the bases of the Rapid 45 device installation trunking to hide cut edges and provide a perfect connection of the trunking segments. The joint covers are attached. Suitable for trunking width 130 mm.

Technical data

Technical data

Colour	Aluminium
Cover width	45 mm

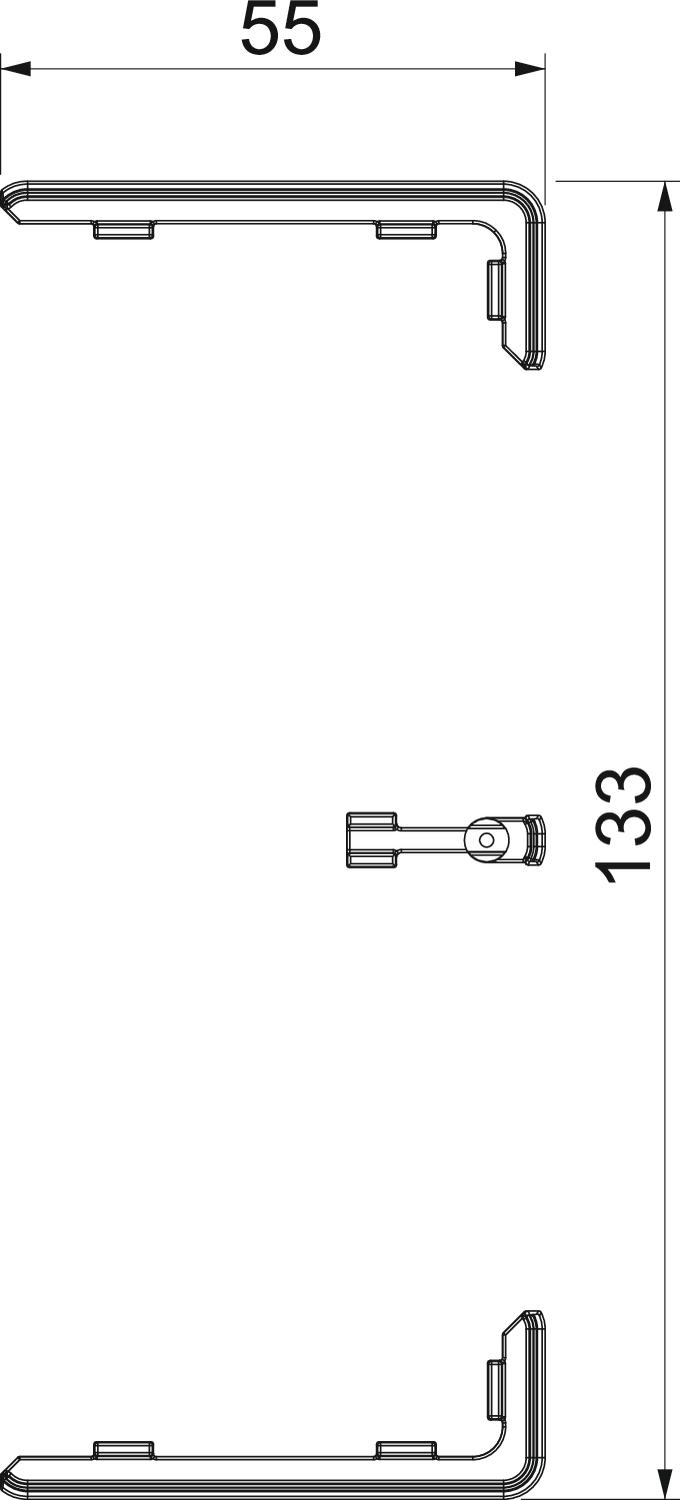

Dimension	133x55x15
Fastening type	Slide (before mounting)
for duct width	130 mm
for trunking height	53 mm
Halogen-free	yes
Height	17 mm
Length	15 mm

Material	Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-15 °C
Protection rating	IP40
Protection rating IK code	IK08
Shape	Symmetrical
Version for	Trunking cut cover
Width	55 mm
