Terminal strip set with screwless terminals for SDB 12
Item no. 2008922 | EAN 4012196465897
- Product description
-
Product description
Terminal strip set for the small distributors of the SDB series. The sets can be used to expand and equip the empty small distributors of the SDB 12... type series.

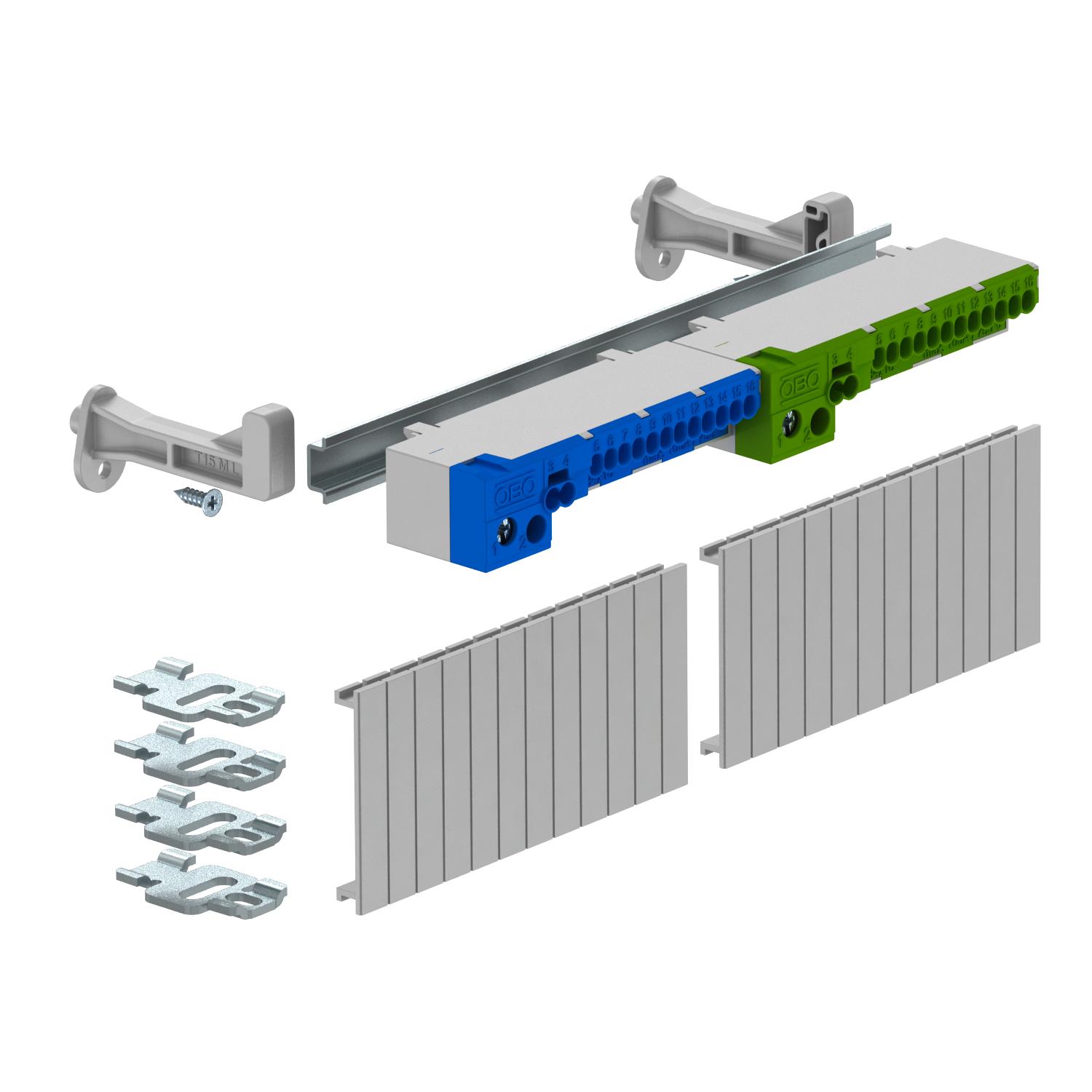

Mounting instructions; cover strip; hat rail with corresponding support and fastening material; one protective conductor terminal and one neutral conductor terminal each with two 16/25 mm² screw terminals and 2x 4 mm² and 12x 2.5 mm² screwless terminals
-
- Technical data
-
Technical data

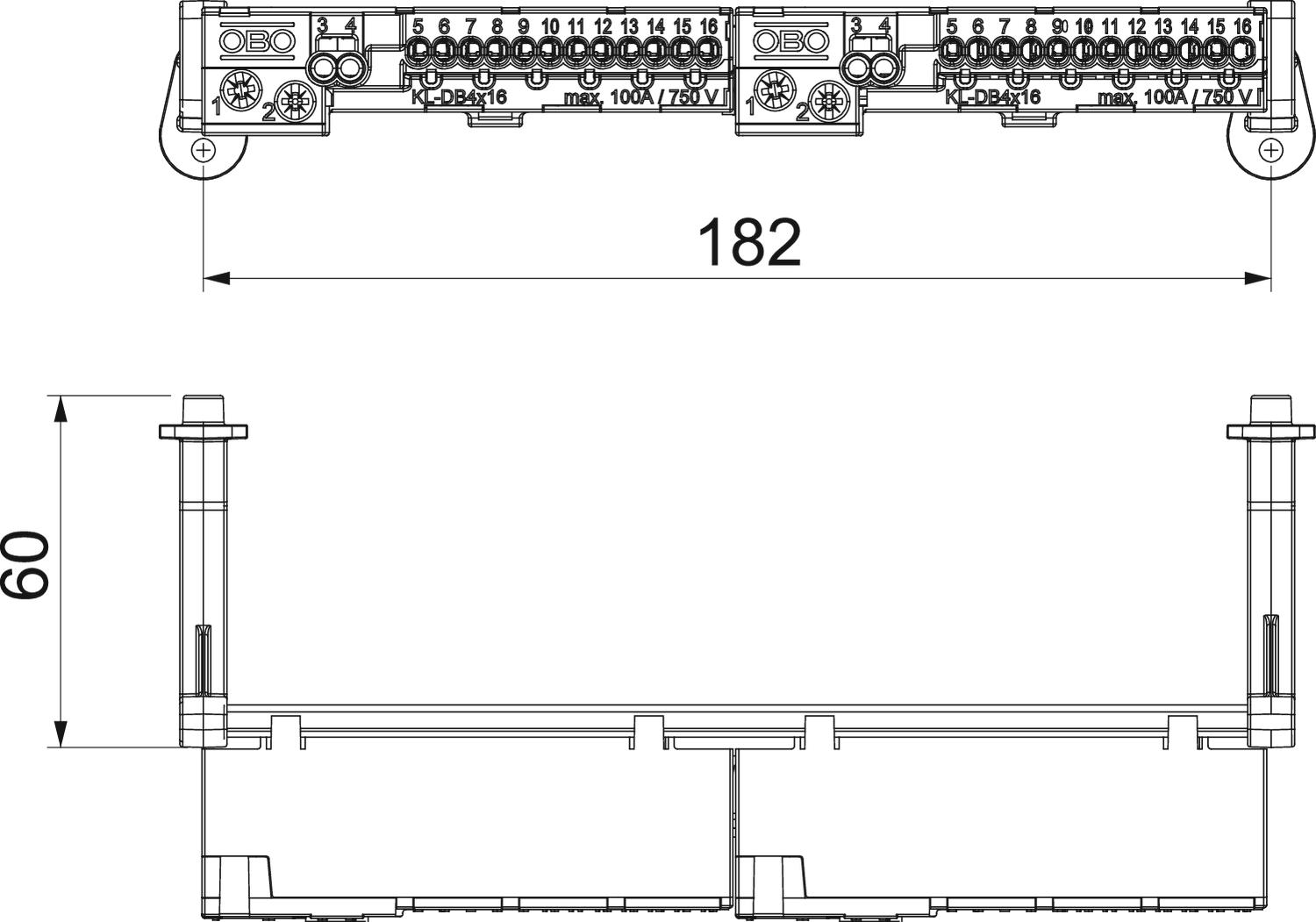

Cross-section 2.5 mm² Dimension 184x15x4 Dimensions
Height 4 mm Length 184 mm Width 15 mm - All types
- Downloads
-
Data sheet KLS-SDB 12S / 2008922 , 0.24MB , pdf
