Support bracket AS 15 41 | 610 | 1.5
morepic-1 morepic-2

Support bracket AS 15

Item no. 6421490 | EAN 4012196208098

41 mm
1.5 kN
Product description
Product description

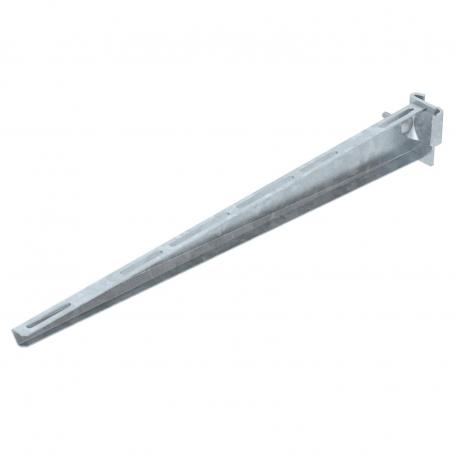

Light-duty support bracket for infinitely adjustable fastening on IS 8 support.
Technical data

Technical data

Colour zinc
Dimension B610mm
Dimension A 41 mm
Dimension B 610 mm
Dimension H 80 mm
EPD article yes
F in kN 1,5 kN
Height 80 mm
Length 41 mm
Maintain electrical functions no
Material Steel
Rustproof steel, pickled no
Surface Hot-dip galvanised
Version for Support bracket
Width 610 mm
All types

All types

Types Length Width F in kN Item no. Quantity SSU
AS 15 11 FT 41 mm 110 mm 1.5 kN 6421326
1 piece
AS 15 16 FT 41 mm 160 mm 1.5 kN 6421334
1 piece
AS 15 21 FT 41 mm 210 mm 1.5 kN 6421350
1 piece
AS 15 31 FT 41 mm 310 mm 1.5 kN 6421385
1 piece
AS 15 41 FT 41 mm 410 mm 1.5 kN 6421423
1 piece
AS 15 51 FT 41 mm 510 mm 1.5 kN 6421466
1 piece
AS 15 61 FT 41 mm 610 mm 1.5 kN 6421490
1 piece
