- Product description
-

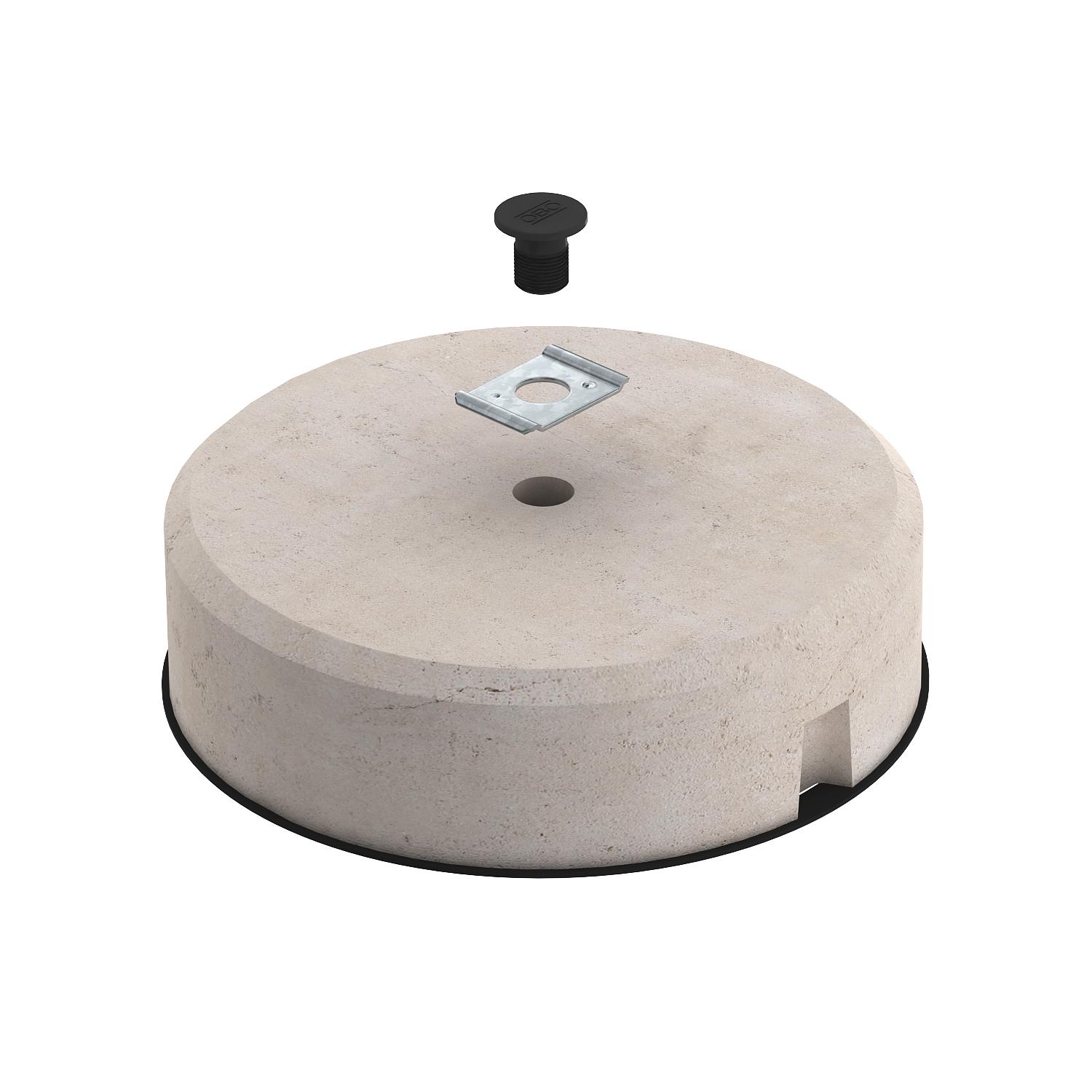

Product description• Mounting system for the fastening of mesh cable trays with the FangFix base, e.g. for cable routing on a flat roof.
• Matches OBO mesh cable tray systems with a minimum width of 100 mm
• Set consisting of TrayFix mounting adapter and concrete block incl. base for FangFix system 10 kg
- Technical data
-
Technical data

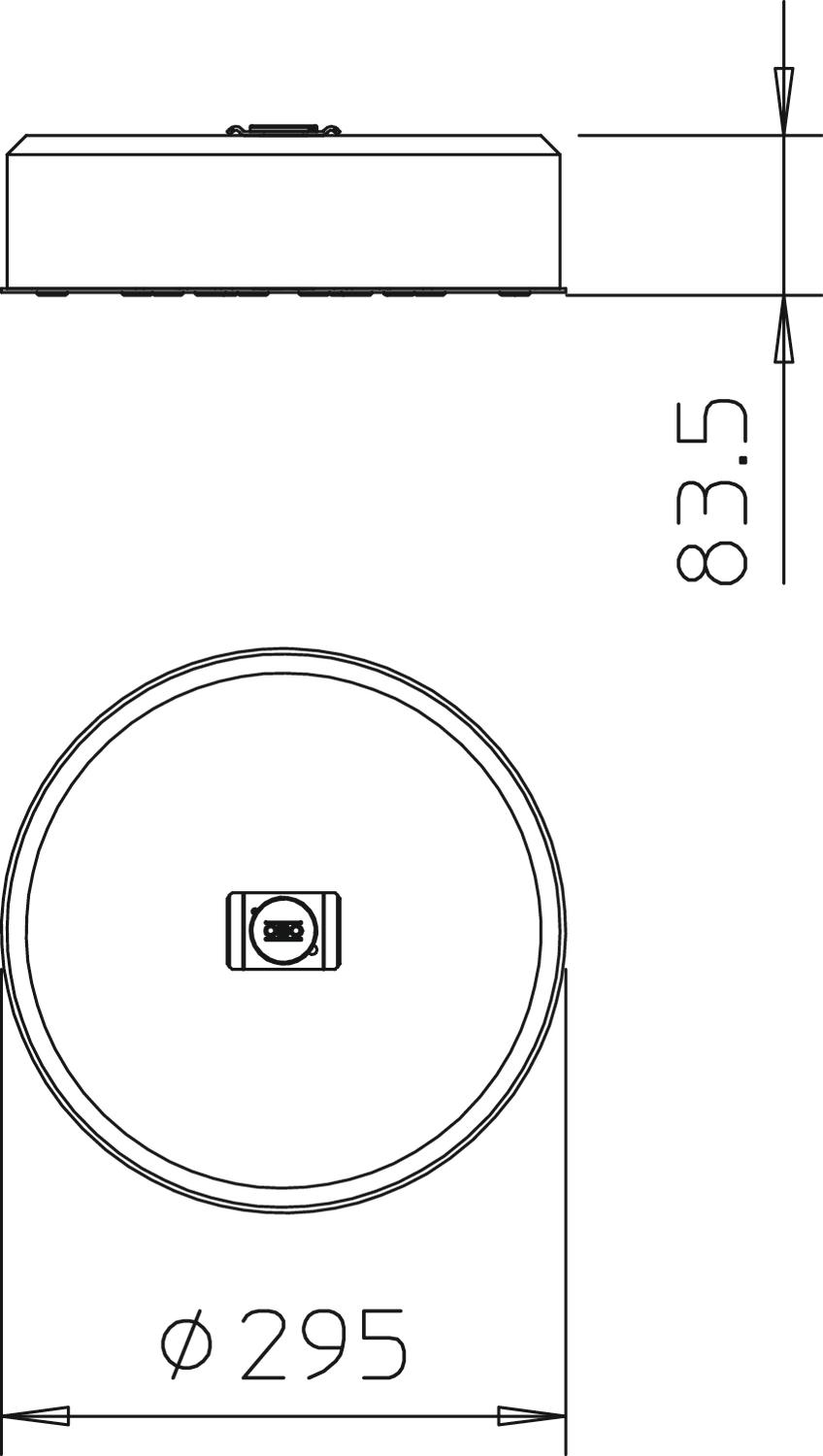

CO₂ Footprint (GWP) Cradle-to-Gate 2,627 kg CO₂e / 1 Piece Dimension 295x295x84 From tray width 100 mm Width 4 in - All types
- Downloads
-
Data sheet TrayFix-10-S / 5403102 , 0.16MB , pdfEU declaration of conformity TrayFix-10-S / 5403102 , 0.15MB , pdfREACH Declaration of conformity TrayFix-10-S / 5403102 , 0.27MB , pdfRoHS Declaration of conformity TrayFix-10-S / 5403102 , 0.12MB , pdfMounting instructions Mounting instructions, TrayFix , 2.89MB , pdf
