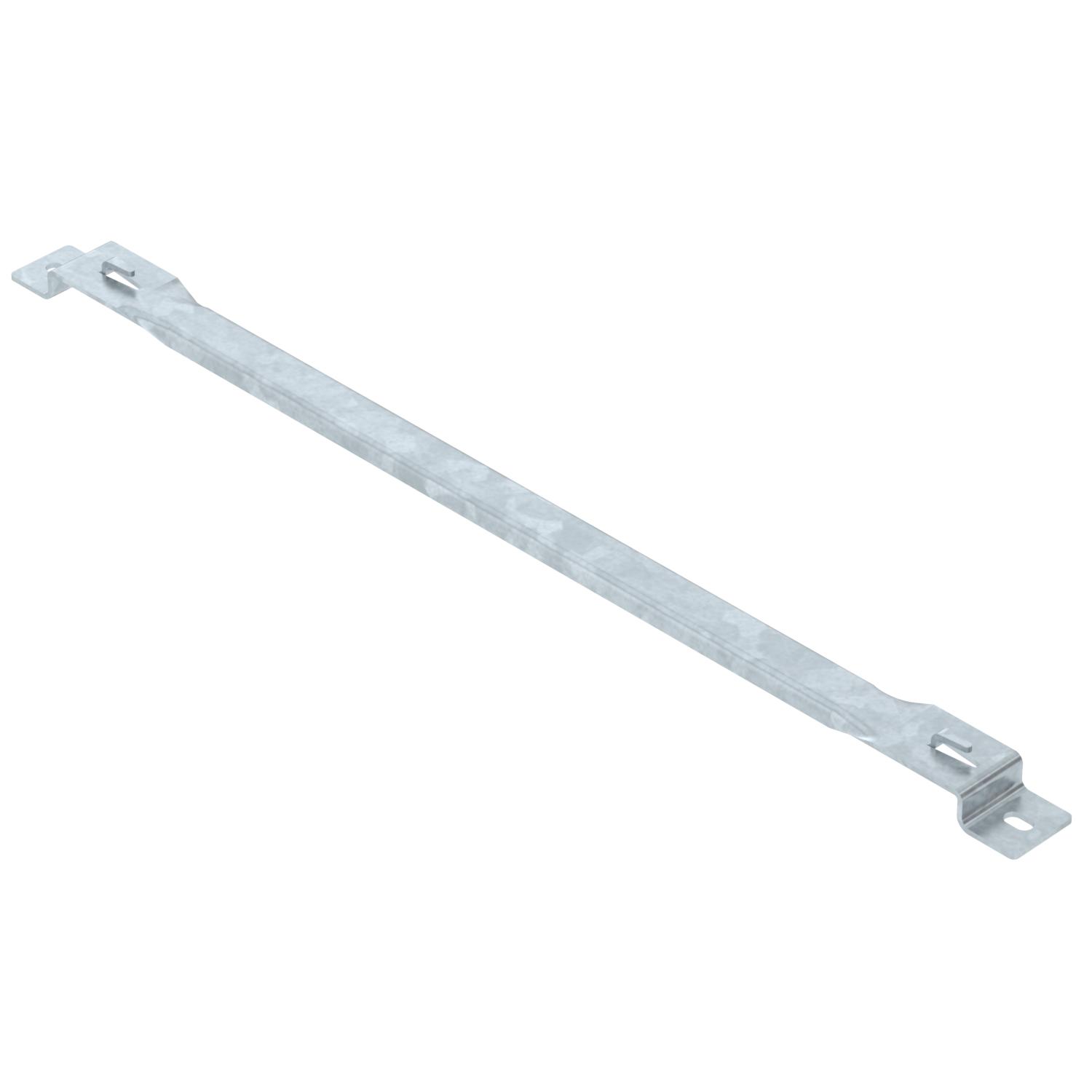

Stand-off bracket FT
Item no. 6015699 | EAN 4012195239284
- Product description
-
Product description
Stand-off bracket for stand-off of mesh cable trays on the floor or on the wall.
GRM mesh cable tray types with side heights of 35, 55 and 105 mm can be mounted onto the spacer clamp.
-
- Technical data
-
Technical data
Colour zinc Dimension B600mm Dimension A 40 mm Dimension B 606 mm Dimension L 670 mm Height 0,79 in Height 20 mm Material Steel Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Surface Hot-dip galvanised Tray fastening Retaining lug Version for Wall/ceiling clamp, trapezoidal profile - All types
-
All types
