Stand-off bracket FT
Item no. 6015656 | EAN 4012196042968
- Product description
-
Product description

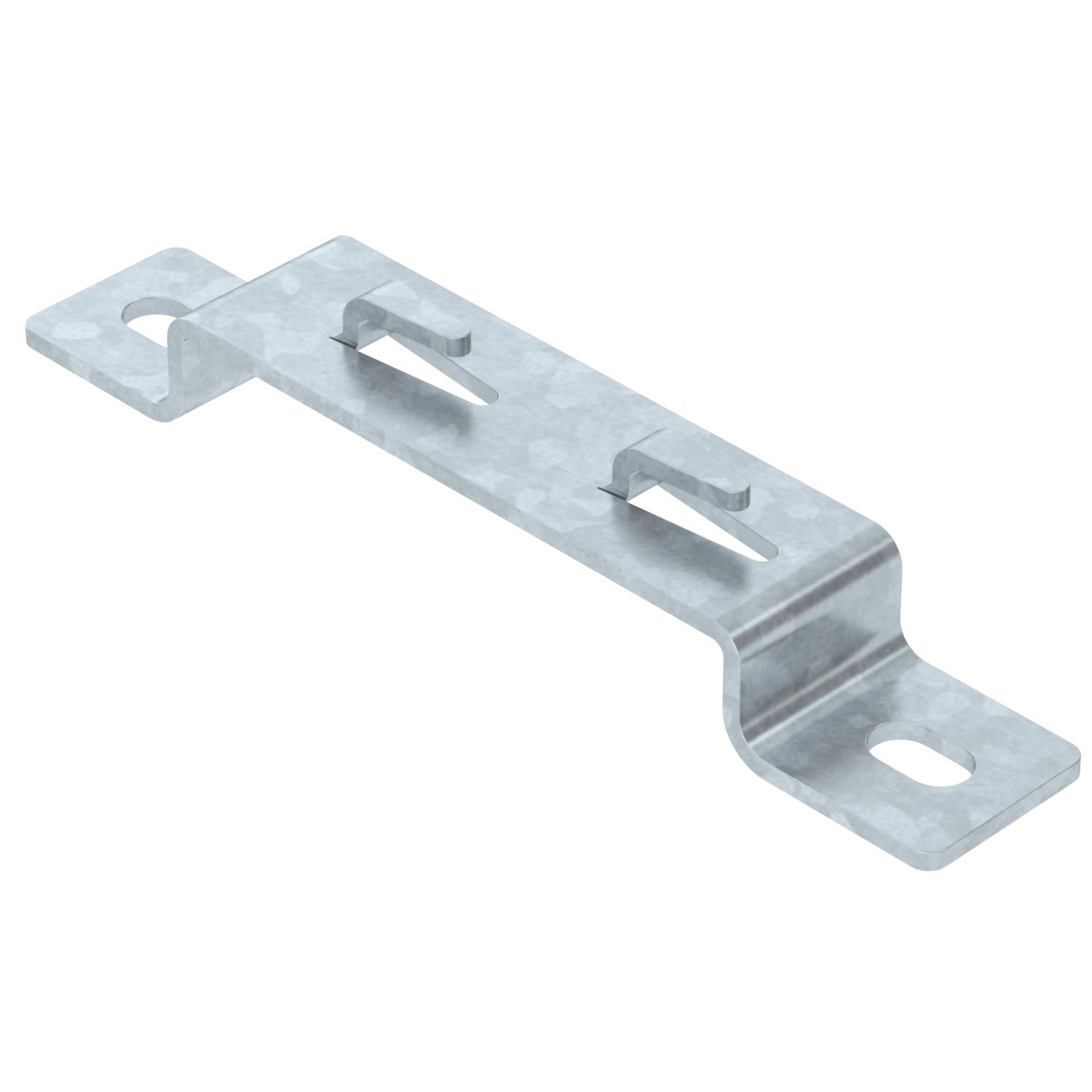

Stand-off bracket for stand-off of mesh cable trays on the floor or on the wall.
GRM mesh cable tray types with side heights of 35, 55 and 105 mm can be mounted onto the spacer clamp.
-
- Technical data
-
Technical data

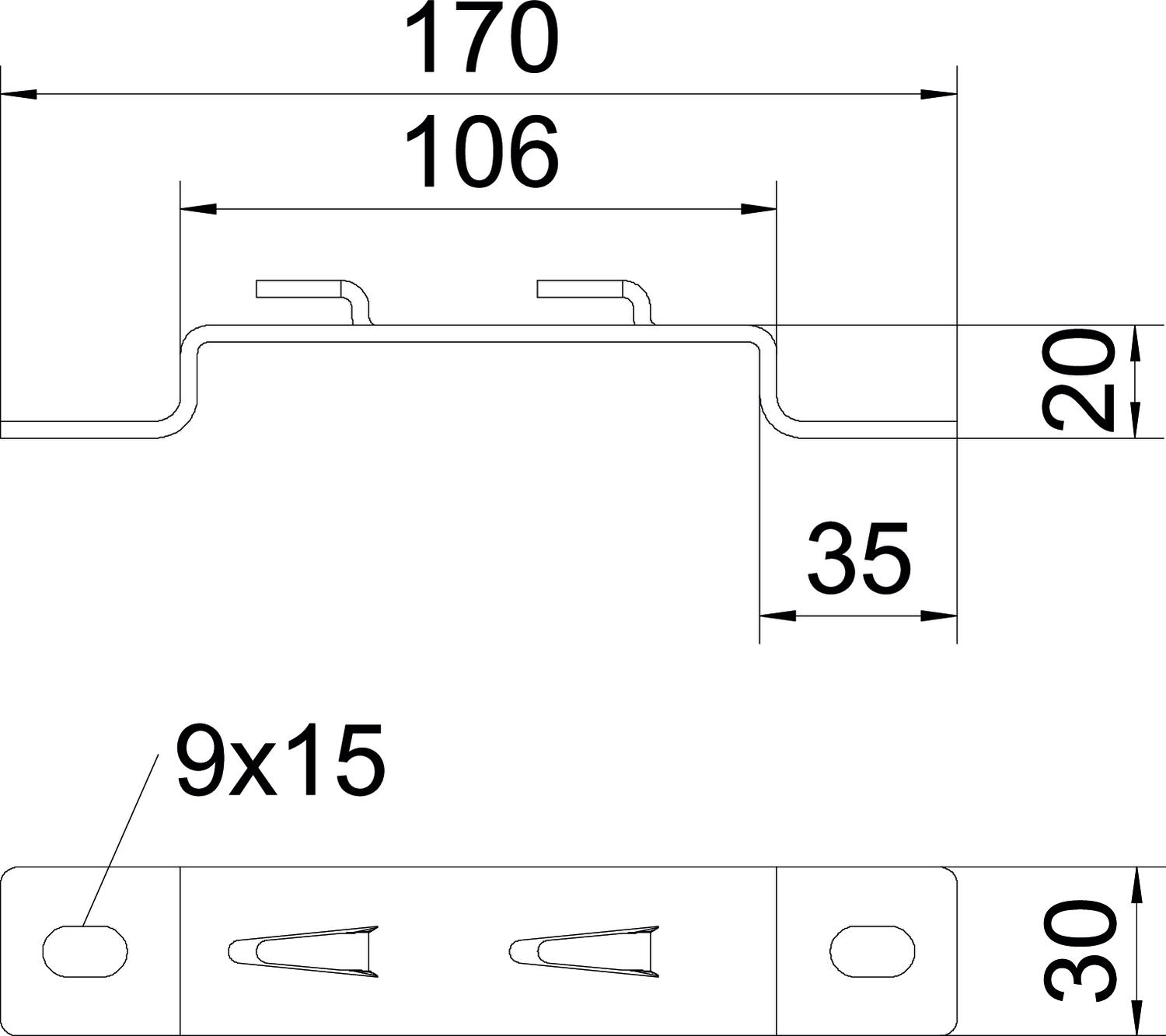

Colour zinc CO₂ Footprint (GWP) Cradle-to-Gate 0,925 kg CO₂e / 1 Meter Dimension B100mm Dimension A 30 mm Dimension B 106 mm Dimension L 170 mm Height 20 mm Height 0,79 in Material Steel Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Surface Hot-dip galvanised Tray fastening Retaining lug Version for Wall/ceiling clamp, trapezoidal profile - All types
-
All types
