Stand for FangFix system, min. 16 kg
Item no. 5403205 | EAN 4012195110637
- Product description
-
Product description• System consisting of FangFix block with edge protection and clamp
• FangFix clamp made of VA; complies with the requirements of VDE 0185-305 (IEC 62305)

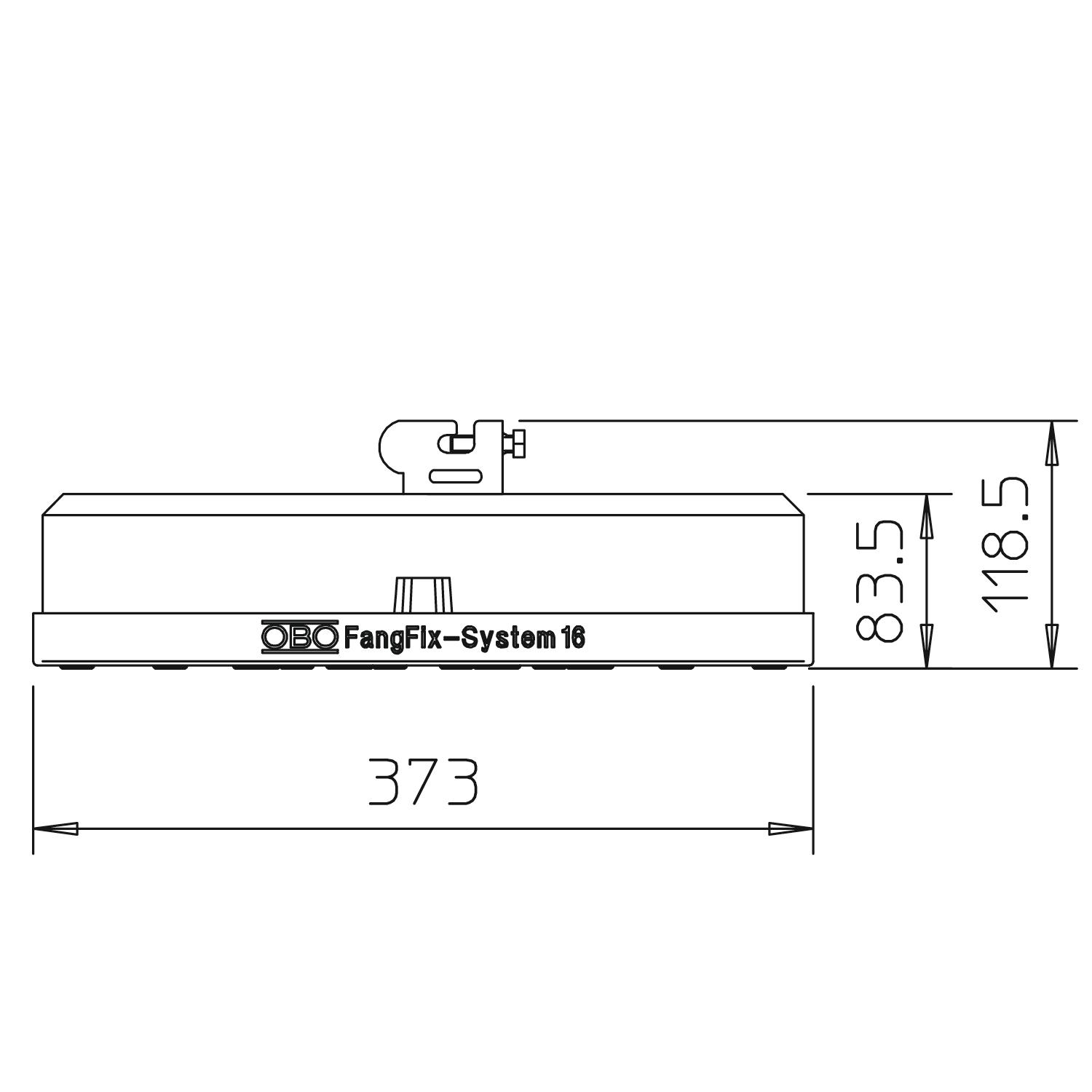

• Min. 16 kg block of Ø 365 mm, high level of stability
• Quick and easy installation of air-termination rod using anchors
• Frost-resistant concrete
• The FangFix block can be stacked
• Suitable for Ø 16 mm pipe air-termination rods
-
- Technical data
-
Technical data
Air-termination rod holder Thread Diameter 373 mm Dimension 16kg Fit Rd 8 mm Material Concrete Nominal size Ø 373 mm Tapered no Version for Base Weight 16 kg - All types
- Downloads
-
Data sheet F-FIX-16B / 5403205 , 0.23MB , pdfMounting instructions Mounting instructions, FangFix , 0.04MB , pdf
