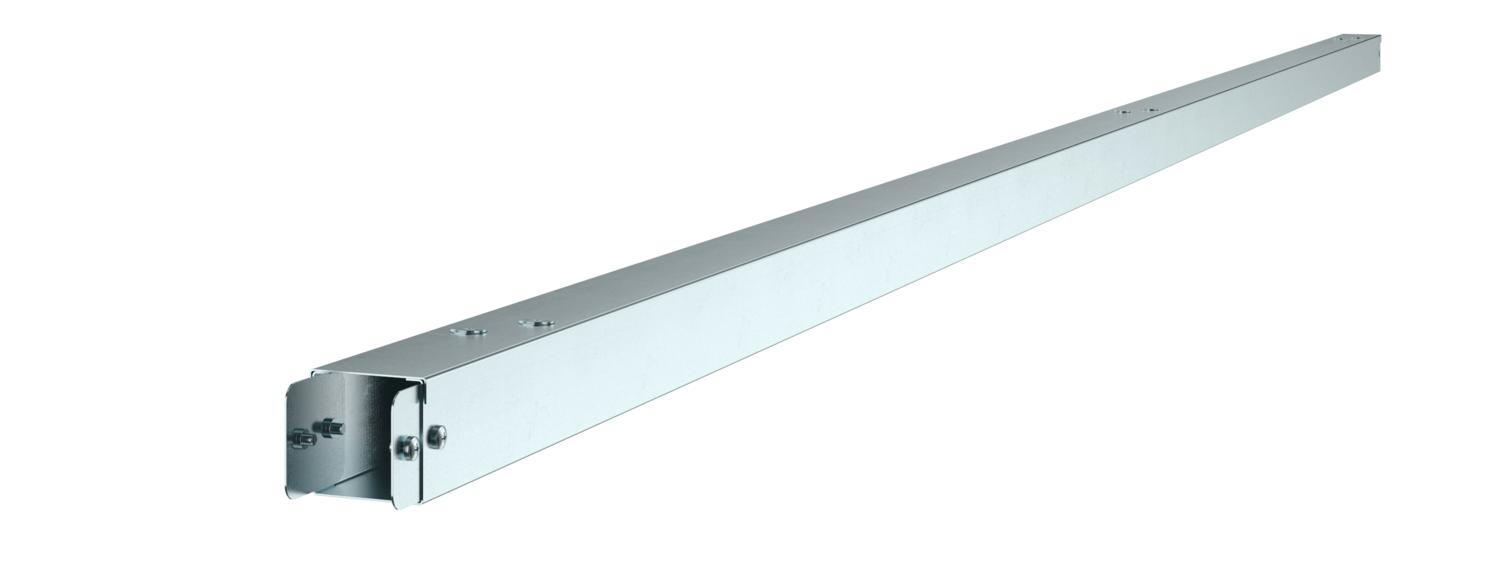

Single-compartment cable duct 50 FS, cover with turn buckle
Item no. 6081150 | EAN 4012196381029
- Product description
-
Product description
Cable duct, single-compartment, complete with cover.
Connectors should be ordered separately and in the appropriate quantity.
-
- Technical data
-
Technical data
Antibacterial treatment no Cable retaining clip no Delivery on a roll no Dimension 50x50x3000 Duct connector no Halogen-free yes Maintain electrical functions no Material Steel Material thickness 0,8 mm Plate thickness 0,8 mm Protective film no Surface Strip galvanized Transparent no Dimensions
Dimension B 50 mm Dimension H 50 mm Dimension L 3000 mm Height 50 mm Length 3000 mm Width 50 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
90° bend 50, with top cover, FS
SA2290T 6081270 40 piece
45° bend 50, with top cover, FS
SA2245T 6081450 90 piece
T branch piece 50, with top cover FS
SA22TTC 6081630 40 piece - Downloads
-
Data sheet ST22 / 6081150 , 0.20MB , pdfCatalogue Cable support systems , 2.10MB , pdfDeclaration of conformity ST22 / 6081150 , 0.13MB , pdfLabel approval VDE symbol approval, ducts , 0.26MB , pdf
