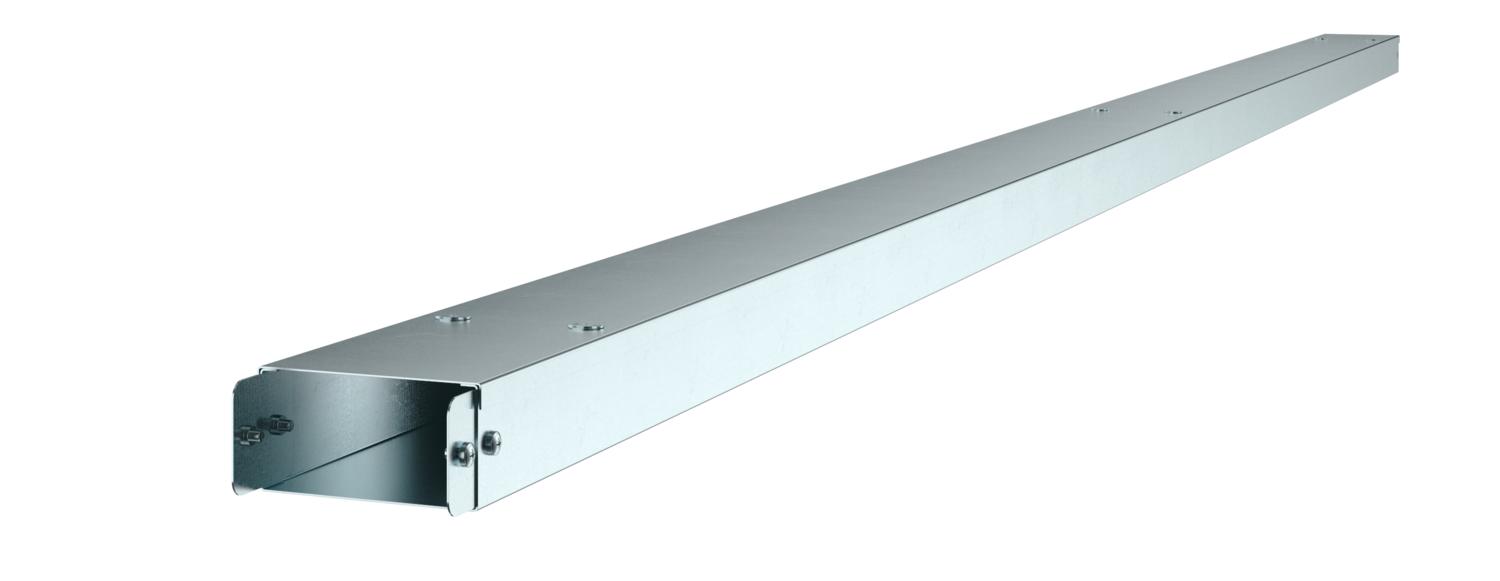

Single-compartment cable duct 50 FS, cover with turn buckle
Item no. 6081154 | EAN 4012196381043
- Product description
-
Product descriptionCable duct, single-compartment, complete with cover.
Connectors should be ordered separately and in the appropriate quantity.
-
- Technical data
-
Technical data
Antibacterial treatment no Cable retaining clip no Delivery on a roll no Dimension 100x50x3000 Dimension B 100 mm Dimension H 50 mm Dimension L 3000 mm Duct connector no Halogen-free yes Height 50 mm Length 3000 mm Maintain electrical functions no Material Steel Material thickness 1 mm Plate thickness 1 mm Protective film no Surface Strip galvanized Transparent no Width 100 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
90° bend 50, with top cover, FS
SA4290T 6081274 18 piece
T branch piece 50, with top cover FS
SA42TTC 6081634 12 piece - Downloads
-
Data sheet ST42 / 6081154 , 0.20MB , pdfCatalogue Cable support systems , 2.10MB , pdfEU declaration of conformity ST42 / 6081154 , 0.13MB , pdfLabel approval VDE symbol approval, ducts , 0.26MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
