- Product description
-
Product description

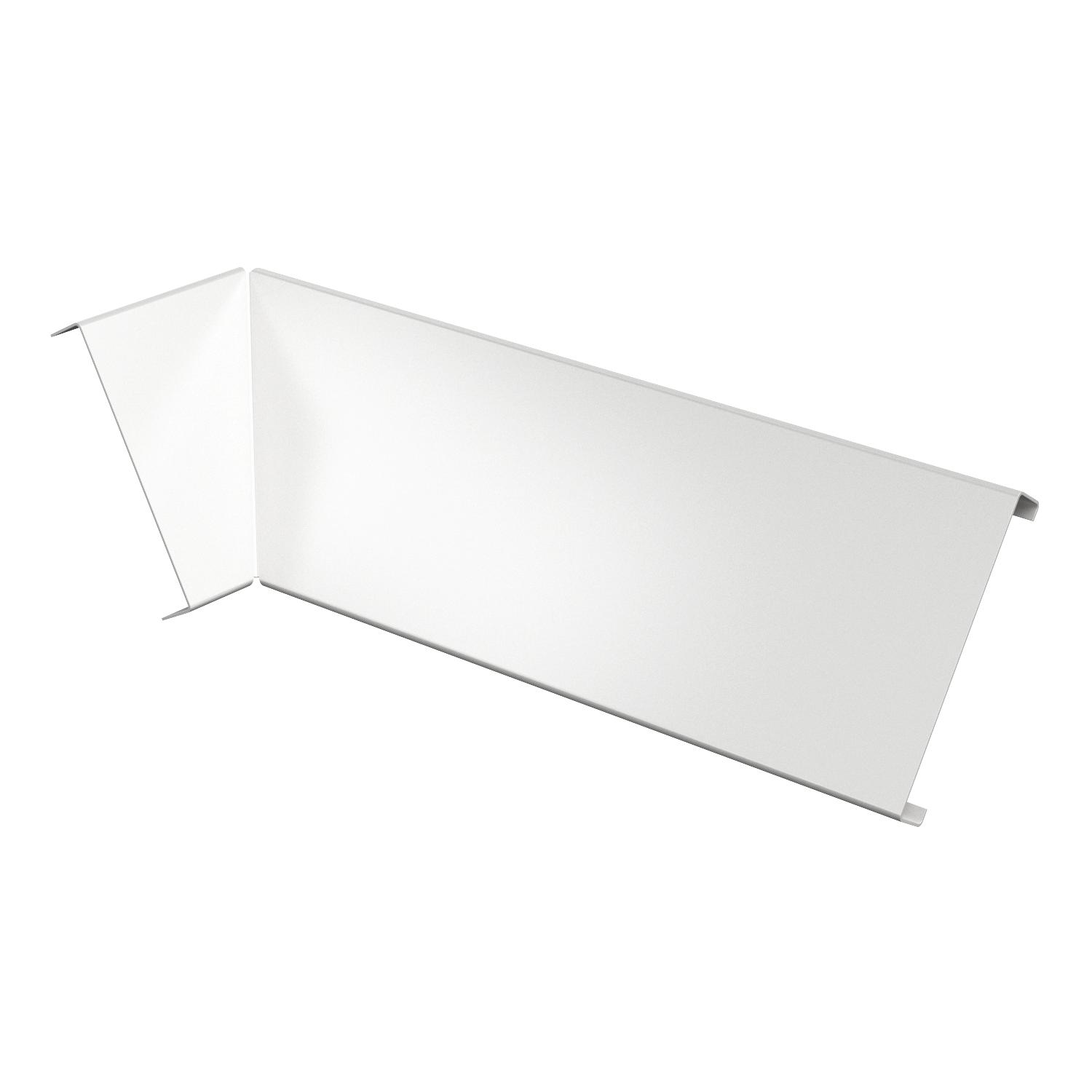

Cover for closing internal corners.
- Technical data
-
Technical data

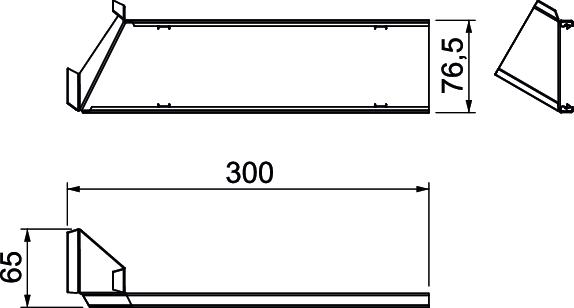

Colour Pure white; RAL 9010 Cover mounting type Internal Dimension 12x76,5x300 Halogen-free yes Height 12 mm Length 300 mm Material Steel Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Protection rating IP30 Protection rating IK code IK10 Protective film yes Version for Smooth Width 76,5 mm - All types
- Downloads
-
Data sheet IOP3RW / 6287080 , 0.22MB , pdfDeclaration of conformity IOP3RW / 6287080 , 0.13MB , pdfUK Declaration of Conformity IOP3RW / 6287080 , 0.14MB , pdfREACH Declaration of conformity IOP3RW / 6287080 , 0.12MB , pdfRoHS Declaration of conformity IOP3RW / 6287080 , 0.12MB , pdf
