Service pole, type ISSDM45 3000 | Tension | Aluminium | Pure white; RAL 9010 |

Service pole, type ISSDM45

Item no. 6289970 | EAN 4012195773863

Item no. / Types

Length	3000 mm

Fastening type	Tension

Material	Aluminium

Colour

Surface

Product description

Product description

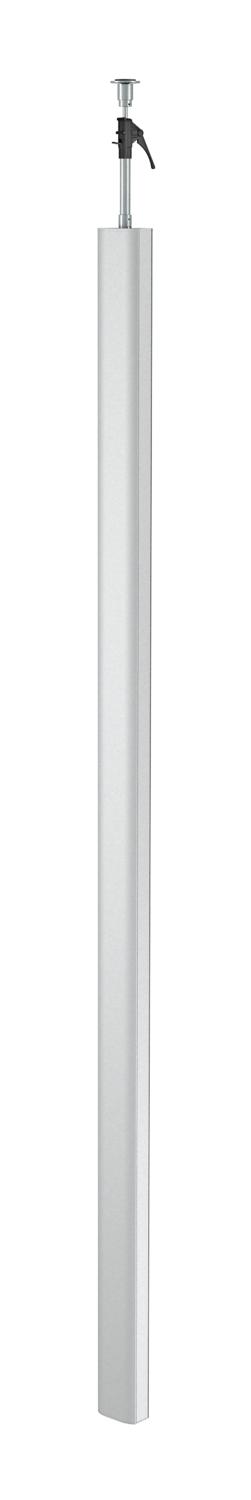

ISS aluminium service pole with a 45 mm system opening.

Set consists of:
1 two-compartment pole with clamping fastening
Total length 3,315–3,480 mm
1 ceiling fastening with clamping device
2 aluminium covers, length: 3,000 mm
The clamping device attached at the top of the ISS service pole can be variably adjusted between 315 and 480 mm. Possible colour options are aluminium anodised or pure white. The pole is based on a slender, oval aluminium profile. There are two 45 mm system openings on opposite sides for direct installation of Module 45® devices.

Technical data

Technical data

Adjustable	yes
Cable entry	Top/bottom
Ceiling mounting	yes
Changes according to location	no
Colour	Pure white; RAL 9010
Continuous profile	yes
Cover width	45 mm
Dimension	3000x80x130
Fastening type	Tension
Floor mounting	yes
Halogen-free	yes
Height	130 mm

Height compensation, max.	480 mm
Height compensation, min.	315 mm
Length	3000 mm
Material	Aluminium
Number of compartments	2 St.
Number of usable covers	2
Pole height, max.	3480 mm
Pole height, min.	3315 mm
Pole shape	Oval
Pre-wired	no
Version for	Double-sided
Width	80 mm

All types

All types

Types	Length	Fastening type	Material	Colour	Surface	Item no.	Quantity	SSU
ISSDM45RW	3000 mm	Tension	Aluminium	Pure white; RAL 9010	-	6289970	piece	1 piece
ISSDM45EL	3000 mm	Tension	Aluminium	-	Anodised	6289972	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Floor plate for ISSDM45	ISSBPDM45RW	6290347	piece	1 piece
Rubber support for ISSDM45	ISSGUDM45	6290372	piece	1 piece
Ceiling panel for ISSDM45	WAGDM45	6290387	piece	1 piece
