Round conductor, copper sheathed 8 | | | 50 | Steel

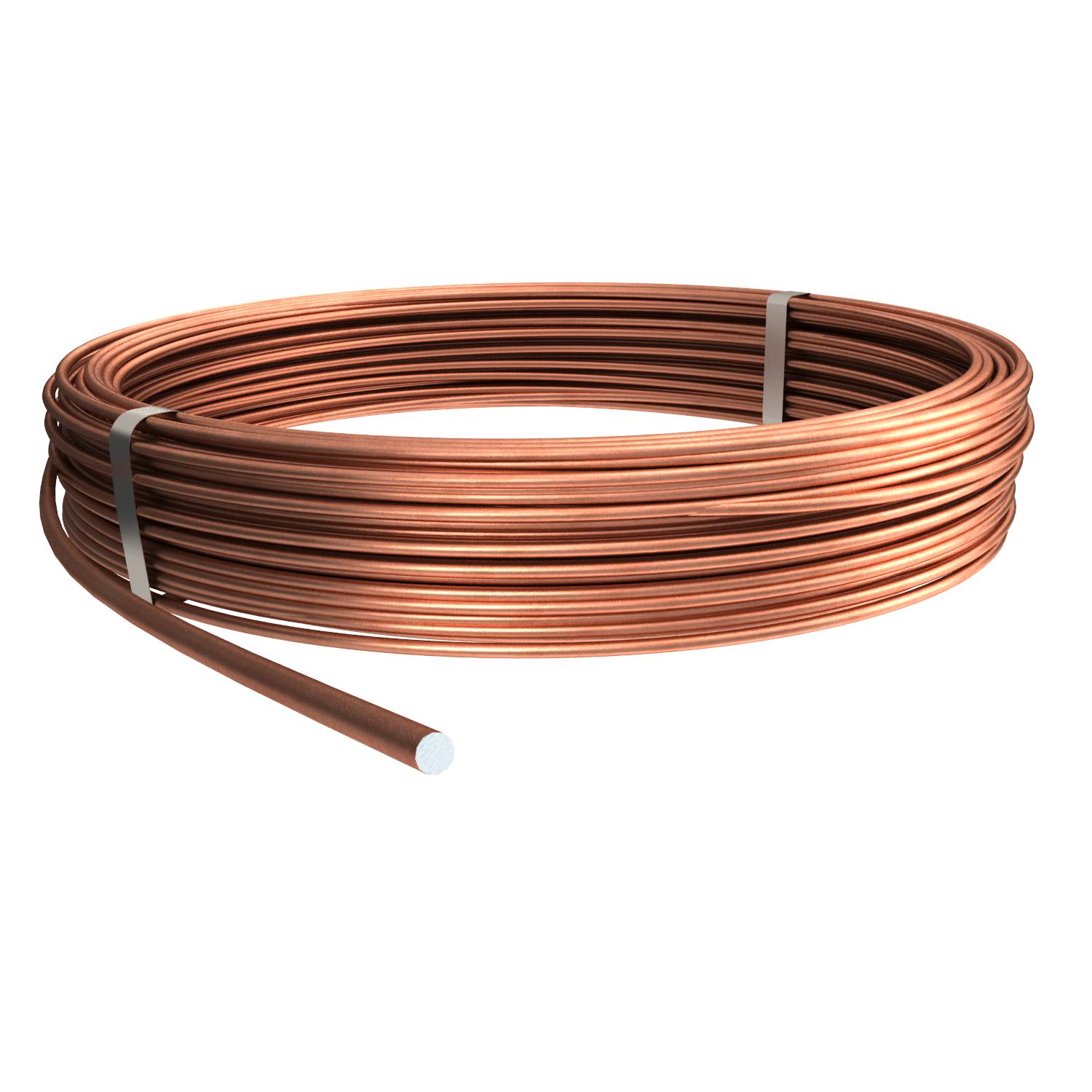

Round conductor, copper sheathed

Item no. 5021380 | EAN 4012196564804

Item no. / Types	5021380 / RD 8-ST CU

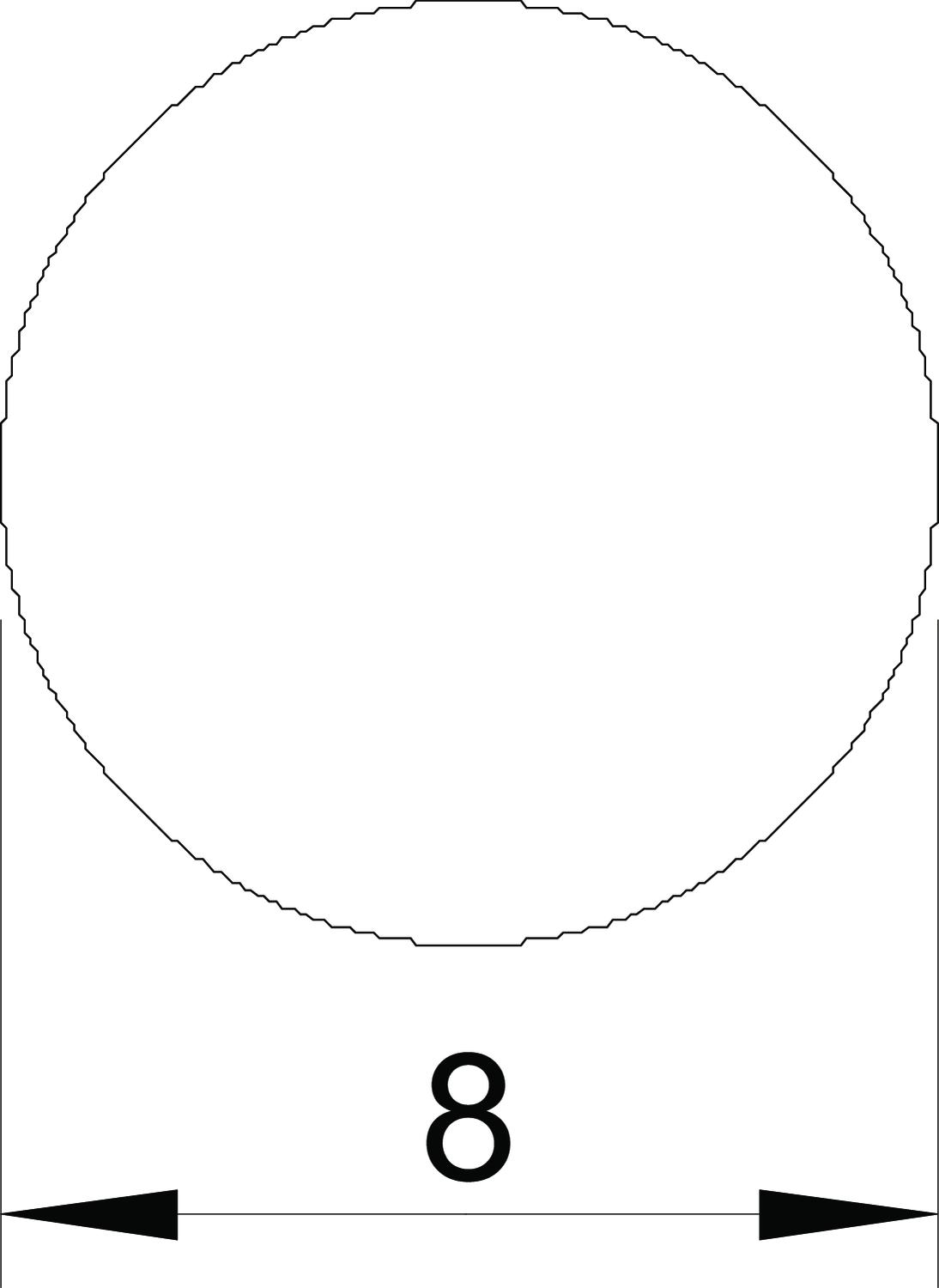

Diameter	8 mm

Cross-section	50 mm²

Material	Steel

Product description

Product description

• Can be used as a conductor according to IEC/ EN 62561-2 (VDE 0185-561-2)
• Complies with the requirements of VDE 0185-305 (IEC 62305)
• Copper layer thickness: Min. 70 µm

Technical data

Technical data

Cross-section	50 mm²
Diameter	8 mm
Dimension	8mm
High voltage-resistant, insulated version	no

Length tolerance ±	5 %
Material	Steel
Number of individual wires	1
Surface	Copper-plated

Dimensions

Length	100000 mm

All types

All types

Types	Diameter	Cross-section	Material	Item no.	Quantity	SSU
RD 8-ST CU	8 mm	50 mm²	Steel	5021380	m	100 m
