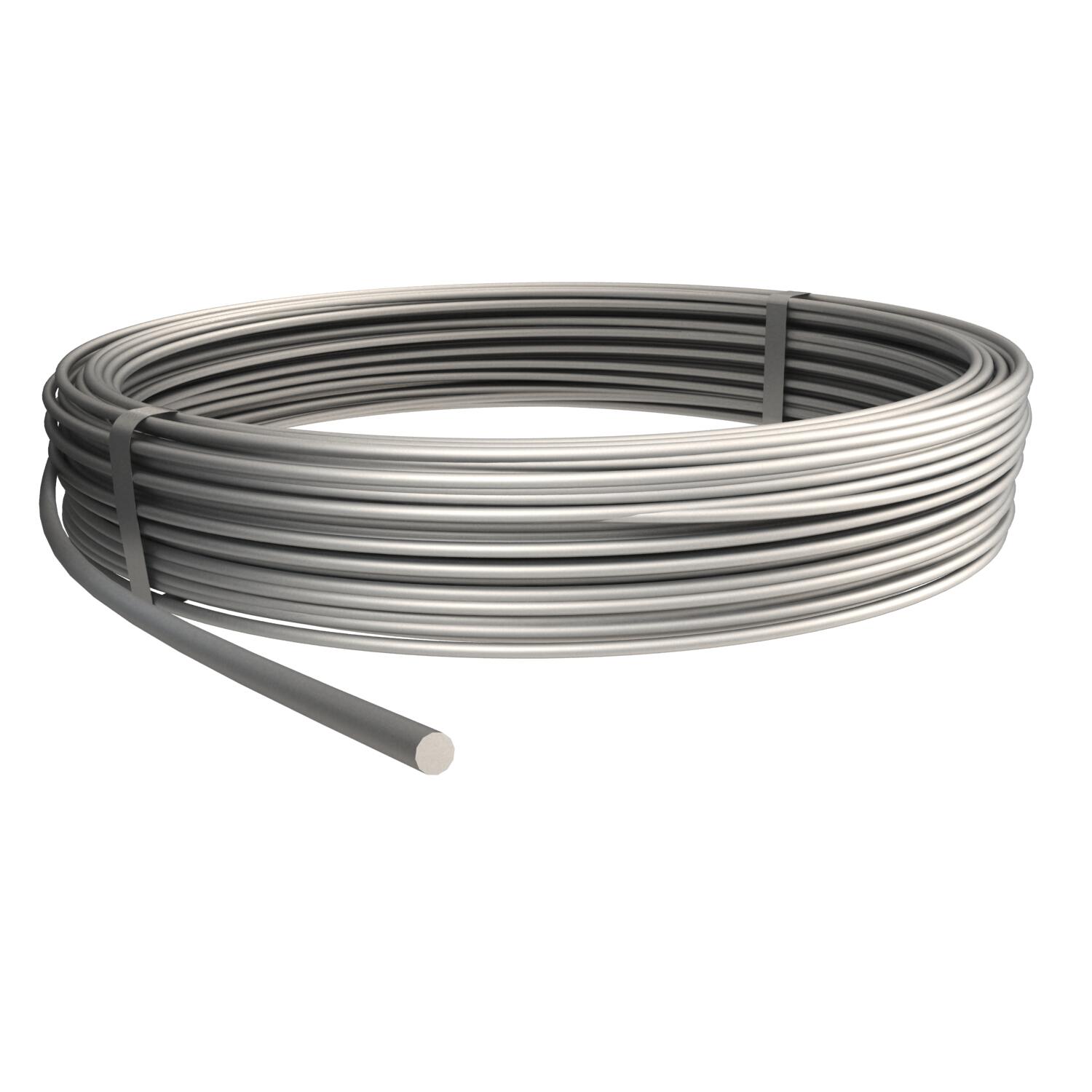

Round conductor, aluminium 8 | 20 | 150 | 50 | Aluminium

Round conductor, aluminium

Item no. 5021286 | EAN 4012195381914

Item no. / Types

Diameter

Normal ring (ca. kg)

Nomal ring (approx. m)

Cross-section

Material	Aluminium

Product description

Product description

• Can be used as a conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• RD 8 ALU: Semi-hard (E-AlMgSi0.5 corresponds to DIN 48801)
• RD 8 ALU-T: Can be subjected to torsion (E-AlMgSi0.5 corresponds to DIN 48801)
• RD 10 ALU: Pure aluminium (E-Al corresponds to DIN 48801)
• AL and ALMgSi may not be routed directly on, in or under plaster, mortar or concrete, nor routed in the earth

Technical data

Technical data

Cross-section	50 mm²

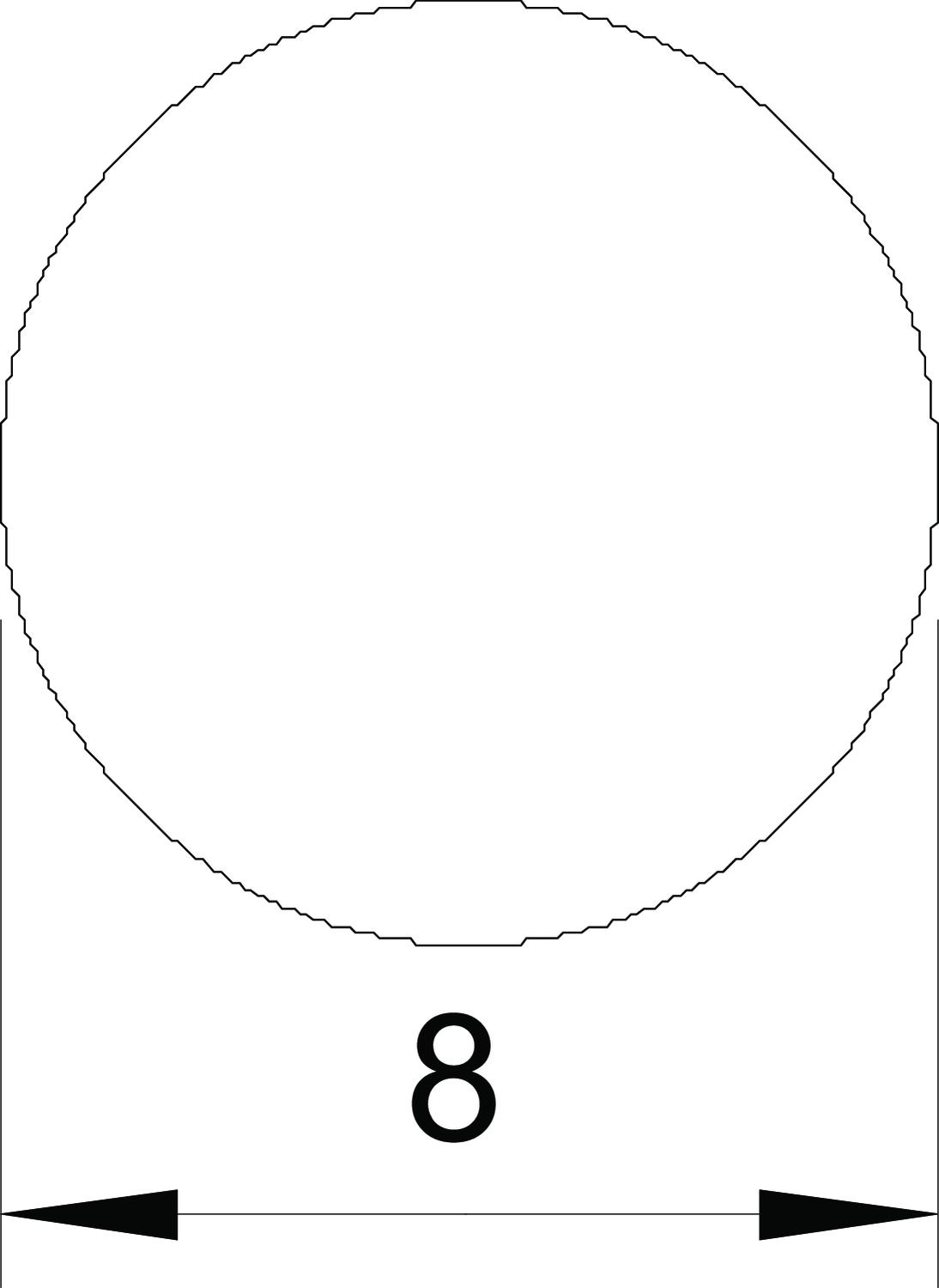

Diameter	8 mm
Dimension	8mm
Dimension D	8 mm
High voltage-resistant, insulated version	no
Length tolerance ±	5 %

Material	Aluminium
Material jacket	Without
Material property	Semi-hard
Nomal ring (approx. m)	150
Normal ring (ca. kg)	20
Number of individual wires	1

All types

All types

Types	Diameter	Normal ring (ca. kg)	Nomal ring (approx. m)	Cross-section	Material	Item no.	Quantity	SSU
RD 8-ALU	8 mm	20	150	50 mm²	Aluminium	5021286	m	150 m
RD 8-ALU-T	8 mm	20	150	50 mm²	Aluminium	5021294	m	150 m
RD 8-ALU-T 75	8 mm	10	75	50 mm²	Aluminium	5021296	m	75 m
RD 10-ALU	10 mm	20	95	78 mm²	Aluminium	5021308	m	95 m

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Cable bracket for Rd 8 mm, through-way Ø 5 mm	177 20 VA M6	5207339	piece	20 piece
Cable bracket Rd 8–10 mm	177 30 M8	5207460	piece	20 piece
165 MBG... roof cable holder for flat roofs, black, with concrete	165 MBG-8-10	5218700	piece	12 piece
Folding and construction clamp	RSF 177 20 VA M8	5317512	piece	50 piece
Connection component with double crossbar	287 DCT	5320707	piece	10 piece
