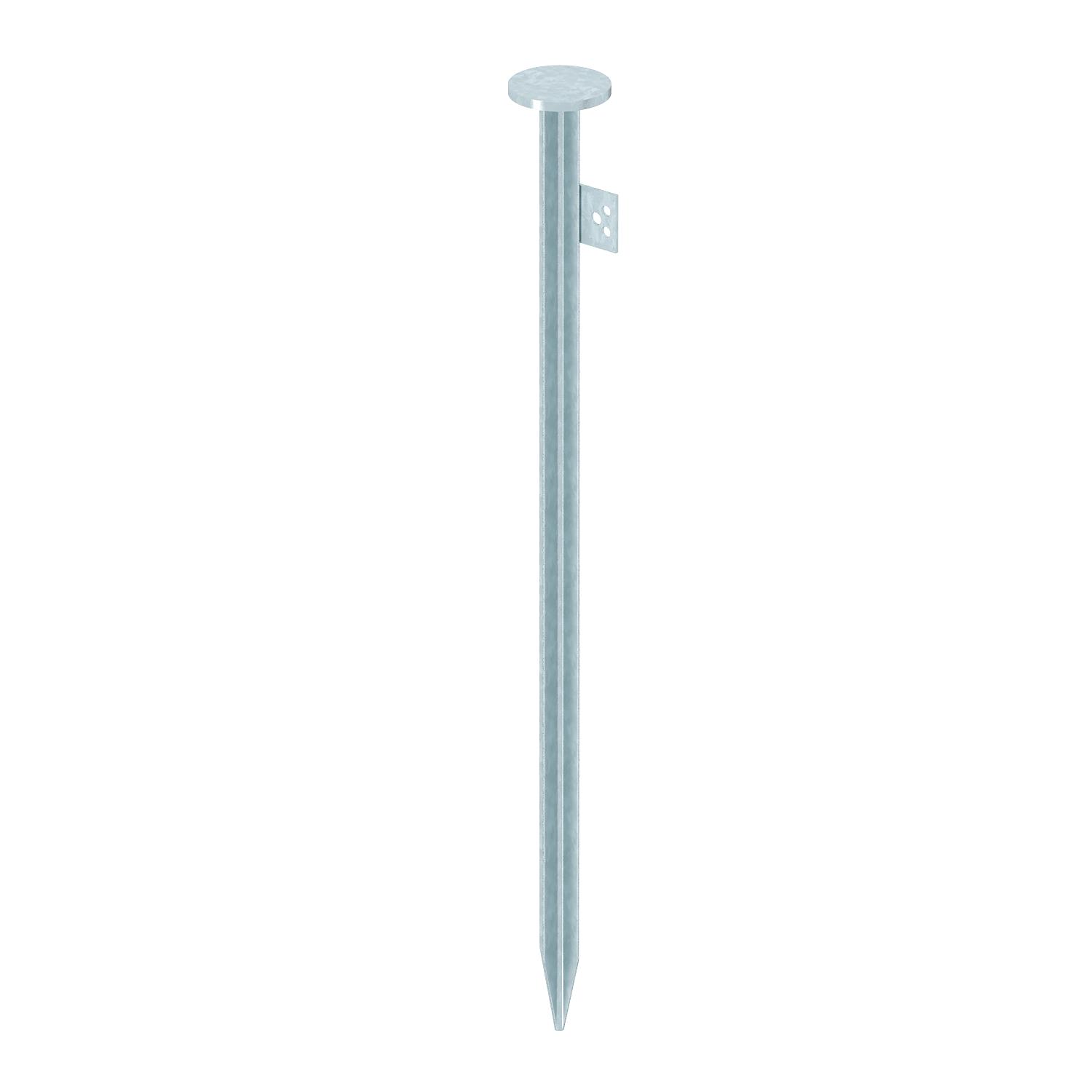

Profile earth rod with connection strap/hand protection
Item no. 5003081 | EAN 4012196527069
- Product description
-
Product description
• Cross-profile 50 x 50 x 3 mm
• Hand protection Ø 100 mm
• With connecting strap
• 1 gland hole Ø 13 mm
• 2 gland holes Ø 11 mm
• Round conductor fastening, e.g. with type 5001 DIN-FT possible
• For the construction of earthing systems, e.g. antennas or earthing of
building site distribution boards
- Technical data
-
Technical data
Dimension 1000mm Length 1000 mm Material Steel Profile type Cross Surface Hot-dip galvanised - All types
- Downloads
-
Data sheet 213 1000 DIN HS / 5003081 , 0.15MB , pdfDeclaration of conformity 213 1000 DIN HS / 5003081 , 0.06MB , pdf
