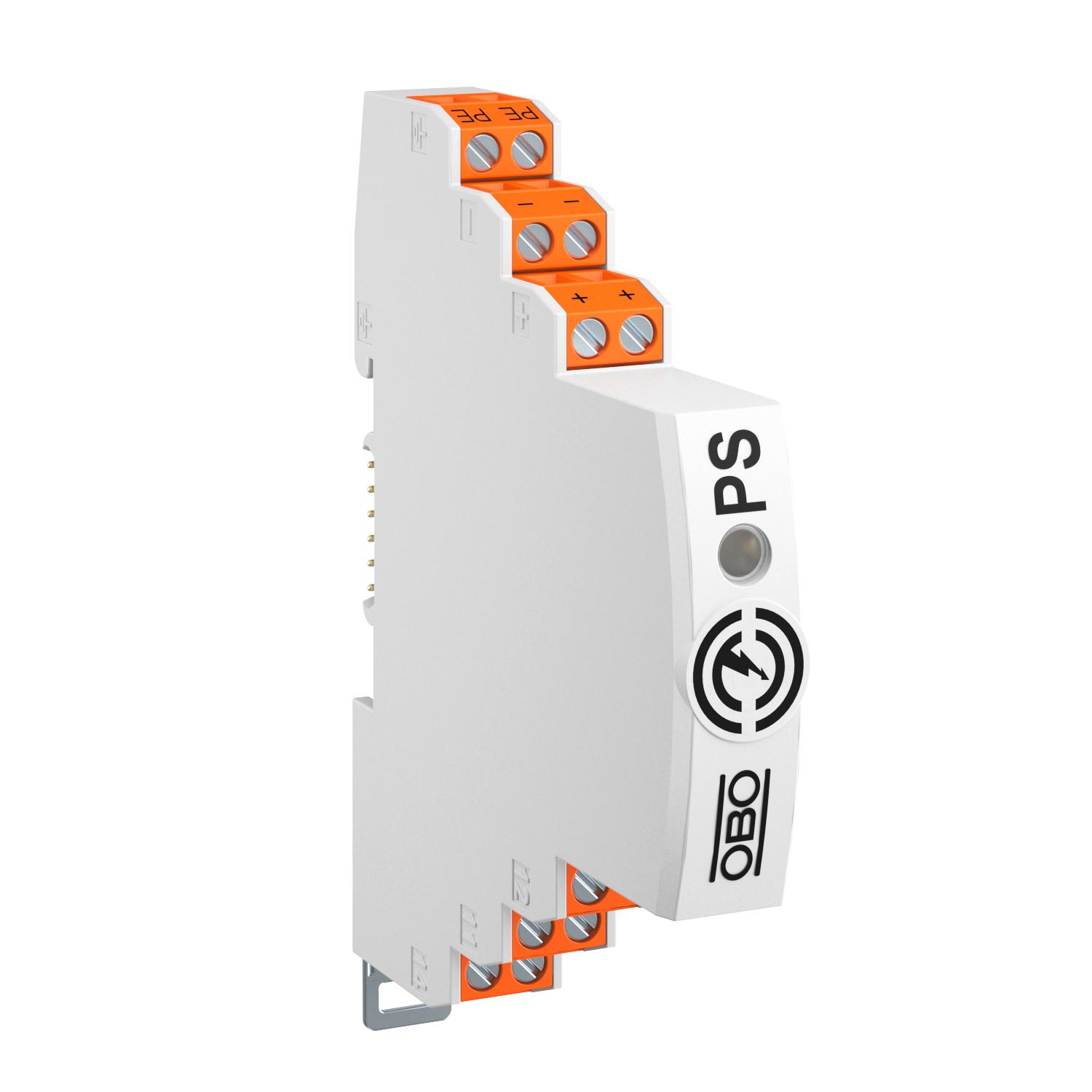

Power supply for PDP-OS, 5 V
Item no. 5080452 | EAN 4012196742158
- Product description
-
Product descriptionPower supply for PDP-OS plug-in data cable protection with visual and remote signalling.
• Support of max. 25 PDP-OS
• Suitable for DIN rail mounting

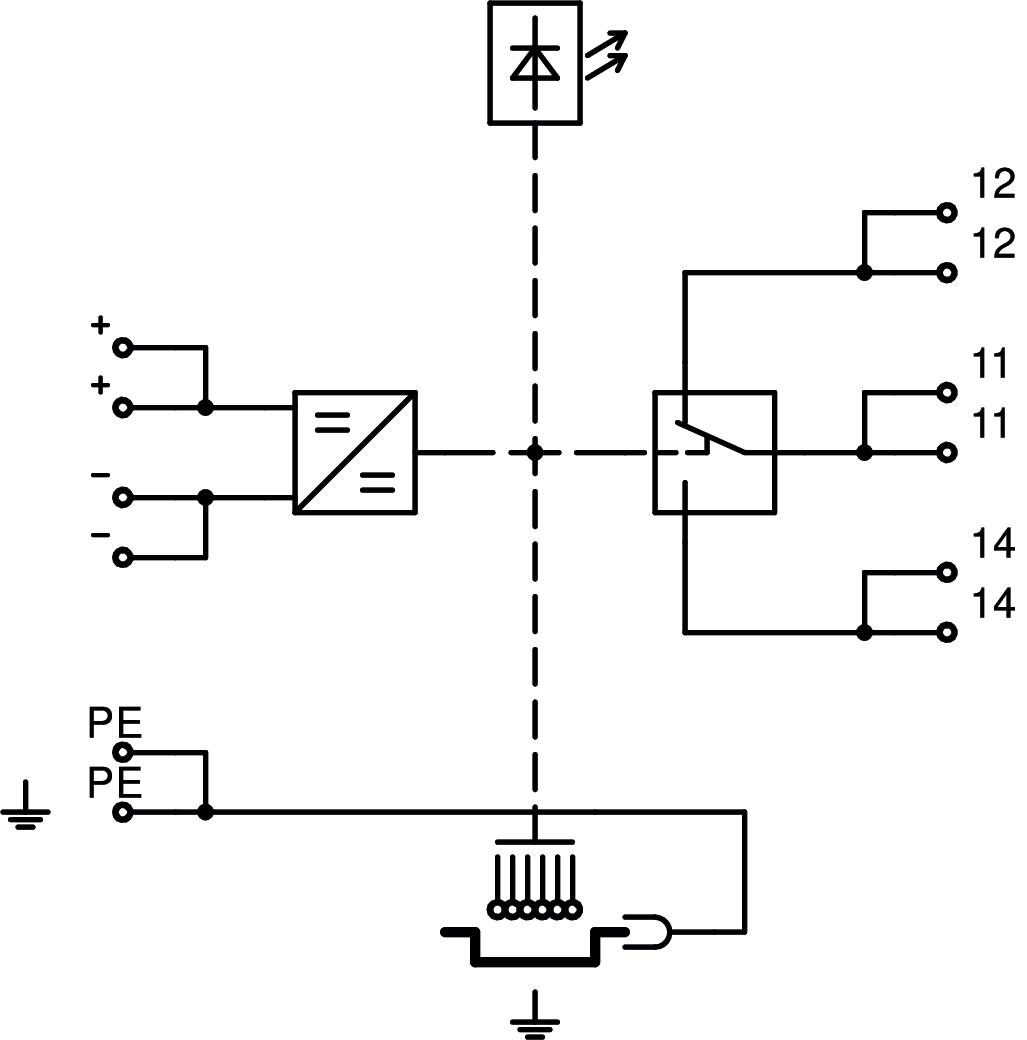

• With visual signalling and option of remote signalling
Application: Universal lightning and surge protection for data transmission devices with MCR technology.
-
- Technical data
-
Technical data

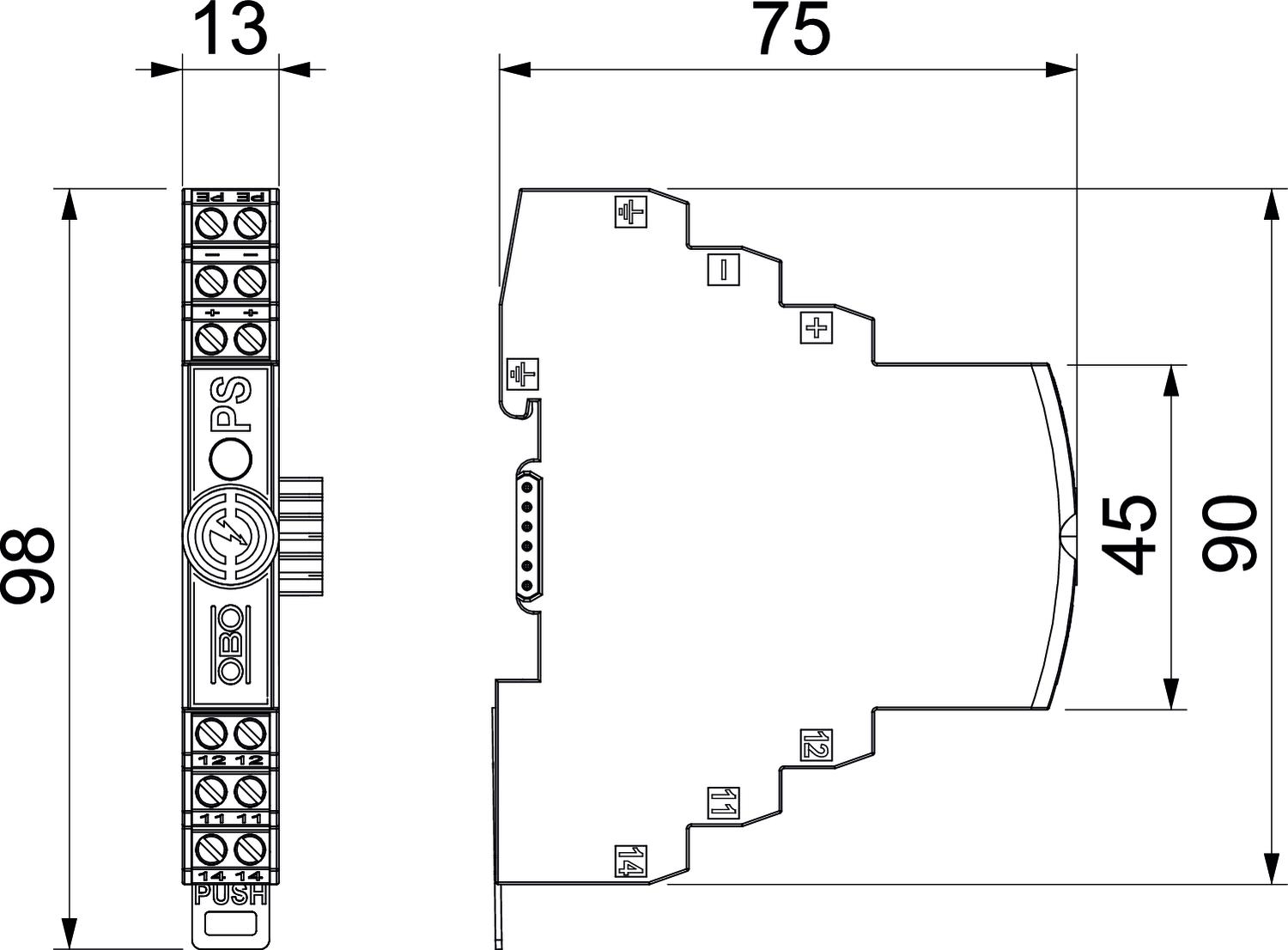

Connection cross-section, flexible, max. 1,5 mm² Connection cross-section, flexible, min. 0,14 mm² Connection cross-section, multi-wire, max. 2,5 mm² Connection cross-section, multi-wire, min. 0,14 mm² Connection cross-section, rigid, max. 2,5 mm² Connection cross-section, rigid, min. 0,14 mm² Dimension 5V Earthing via: Connection cable Height 98 mm Length 75 mm Mounting of input / output Screw terminals Permitted temperature range, max. 80 °C Permitted temperature range, min. -40 °C Protection rating IP20 Shielding connection available no Signalling on device Visual Telecommunications contact yes Width 13 mm - All types
