Partition GKH-TW70 2000 | 70
morepic-1 morepic-2 video-1

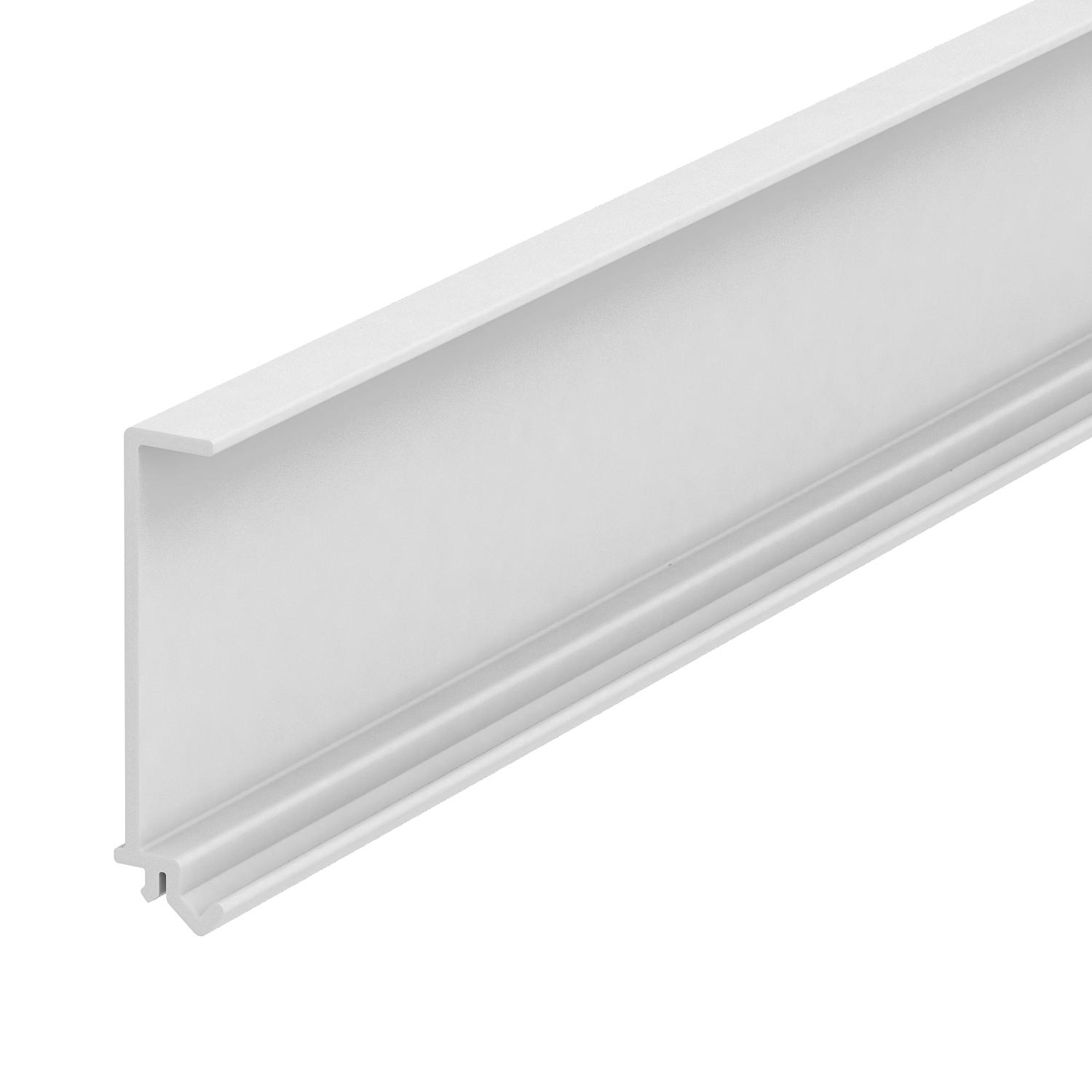

Partition GKH-TW70

Item no. 6114290 | EAN 4012196451173

6114290 / GKH-TW70
2000 mm
70
Product description

Product description

Partition made of halogen-free PC/ABS for mounting in Rapid 80 GKH (GA) device installation trunking or ISS service poles for installing cables of different voltage levels.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Pure white; RAL 9010
Dimension 70x2000
Fastening type Plug-in
Halogen-free yes
Height 10 mm
Length 2000 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -15 °C
Protection rating IP30
Protection rating IK code IK08
Suitable for duct depth 70
Version for Single
Width 44,5 mm
All types

All types

Types Length Suitable for duct depth Item no. Quantity SSU
GKH-TW70 2000 mm 70 6114290
2 m
Downloads

Download

Download

Declaration of conformity GKH-TW70 / 6114290 , 0.13MB , pdf
Download
UK Declaration of Conformity GKH-TW70 / 6114290 , 0.14MB , pdf
Download
REACH Declaration of conformity GKH-TW70 / 6114290 , 0.12MB , pdf
Download
RoHS Declaration of conformity GKH-TW70 / 6114290 , 0.12MB , pdf
Download

Download

No invitation to tender text is available for this product.
