MMS-plus ST 6x55 push-in tie, with connection thread 6x55 | 60 | 5 | 10

morepic-1

morepic-2

MMS-plus ST 6x55 push-in tie, with connection thread

Item no. 3498264 | EAN 4012196559671

Item no. / Types	3498264 / MMS+ ST 6x55

Dimension	6x55

Anchor length	60 mm

Drill hole diameter, min.	5 mm

WAF	10

Product description

Product description

Bolt tie for direct mounting without additional anchors in cracked and uncracked concrete and masonry. M6 connection thread for fastening clips with threaded foot.

Construction product tested according to EAD and CE mark, with European Technical Assessment (ETA) and proof of suitability. Load-bearing capacities under fire loads proven up to fire resistance class R120.

Technical data

Technical data

Anchor length	60 mm
Dimension	6x55
Dimension	6x55mm
Dimension L	55 mm
Drill hole diameter, min.	5 mm

Length	55 mm
Material	Steel
Surface	Electrogalvanized
WAF	10

All types

All types

Types	Dimension	Anchor length	Drill hole diameter, min.	WAF	Item no.	Quantity	SSU
MMS+ ST 6x55	6x55	60 mm	5 mm	10	3498264	piece	100 piece

Downloads

Data sheet MMS+ ST 6x55 / 3498264 , 0.16MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Brochure Brochure The Experts , 2.10MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Catalogue Schutzinstallation Brandgeprüfte Verlegesysteme , 19.95MB , pdf

REACH Declaration of conformity MMS+ ST 6x55 / 3498264 , 0.12MB , pdf

Download

RoHS Declaration of conformity MMS+ ST 6x55 / 3498264 , 0.12MB , pdf

Download

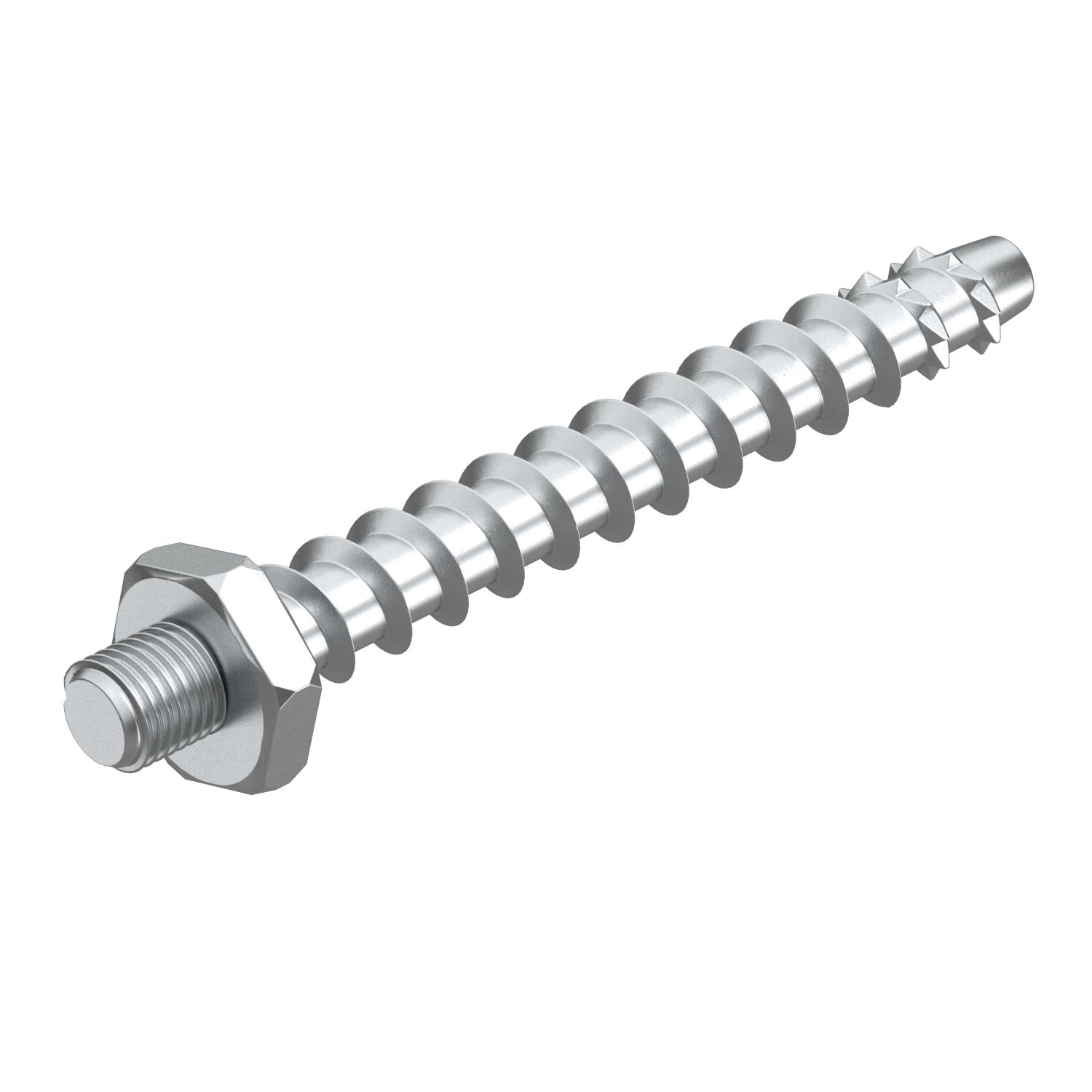

Product graphic MMS+ ST 6x55 / 3498264, 56.81 kB, jpg

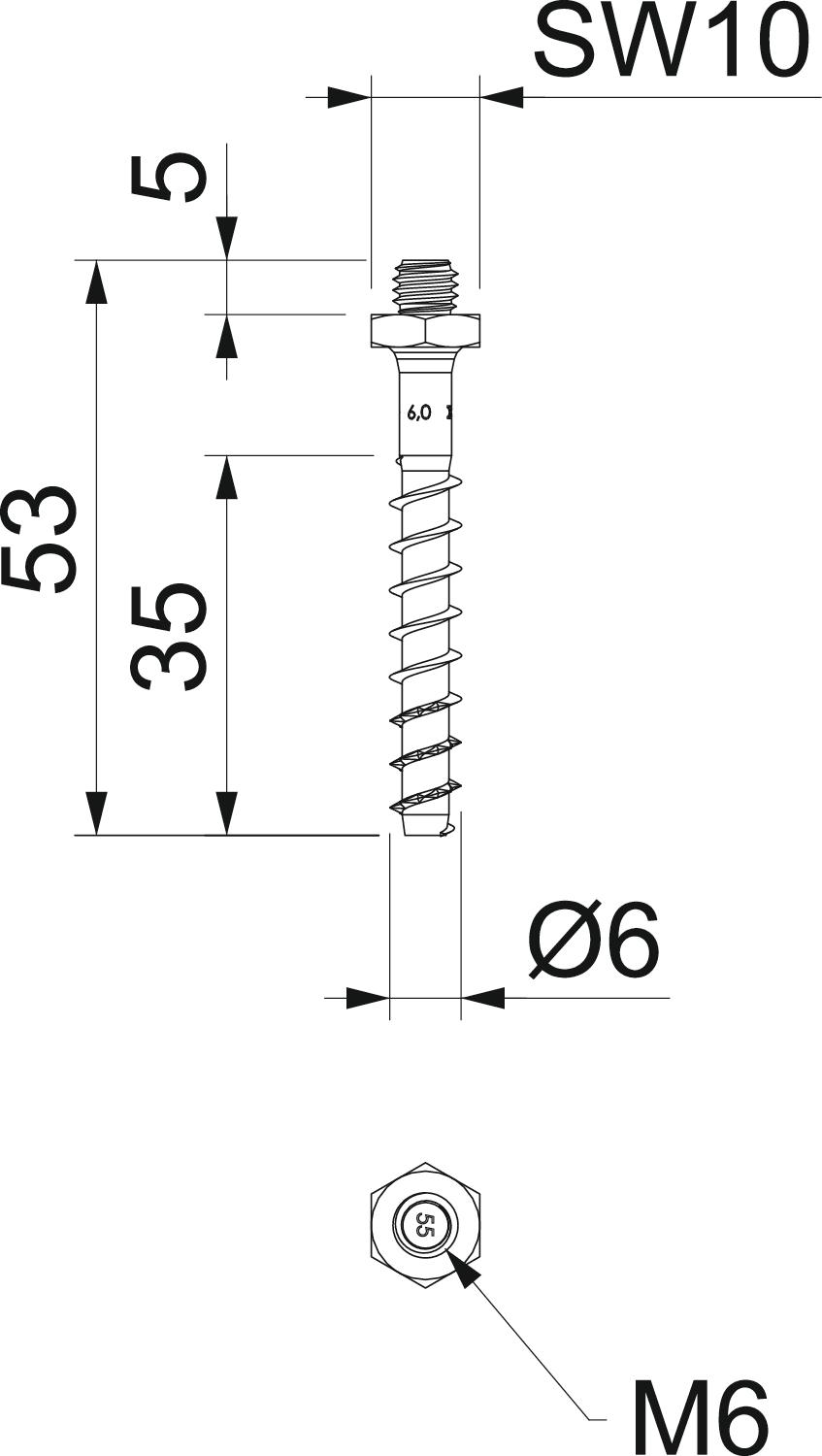

Scale drawing MMS+ ST 6x55 / 3498264, 54.74 kB, jpg
