LSA separating strip
Item no. 5084012 | EAN 4012195525196
- Product description
-
Product description

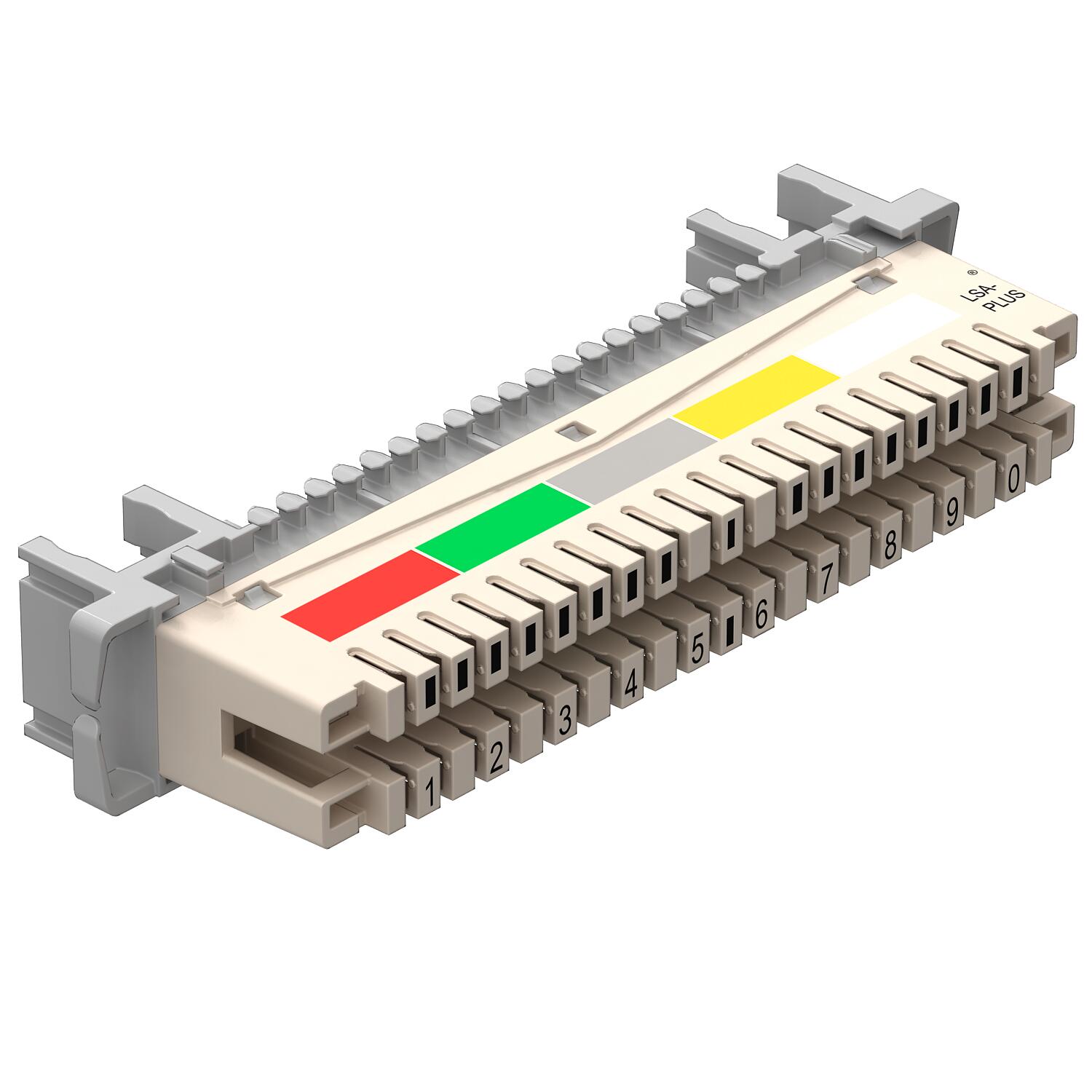

LSA separating strip 2/10 for attaching up to 10 double-cores.
• For use with protection element LSA-BF-180; LSA-BF-24; LSA-B-MAG
• Fastening to mounting trough LSA-M
• Colour: White
• Clampable cross-sections 0.14–0.5 mm2 (AWG 26-20)
LSA-Plus separating strip with the options of temporarily interrupting connections for testing purposes
-
- Technical data
-
Technical data
Colour White Dimension 40-polig Number of poles 20 - All types
- Downloads
-
Data sheet LSA-T-LEI / 5084012 , 0.20MB , pdfDeclaration of conformity LSA-T-LEI / 5084012 , 0.06MB , pdfREACH Declaration of conformity LSA-T-LEI / 5084012 , 0.12MB , pdfRoHS Declaration of conformity LSA-T-LEI / 5084012 , 0.12MB , pdfTechnical information Technical information, LSA ... , 0.47MB , pdf
