LSA installation trough
Item no. 5084036 | EAN 4012195525554
- Product description
-

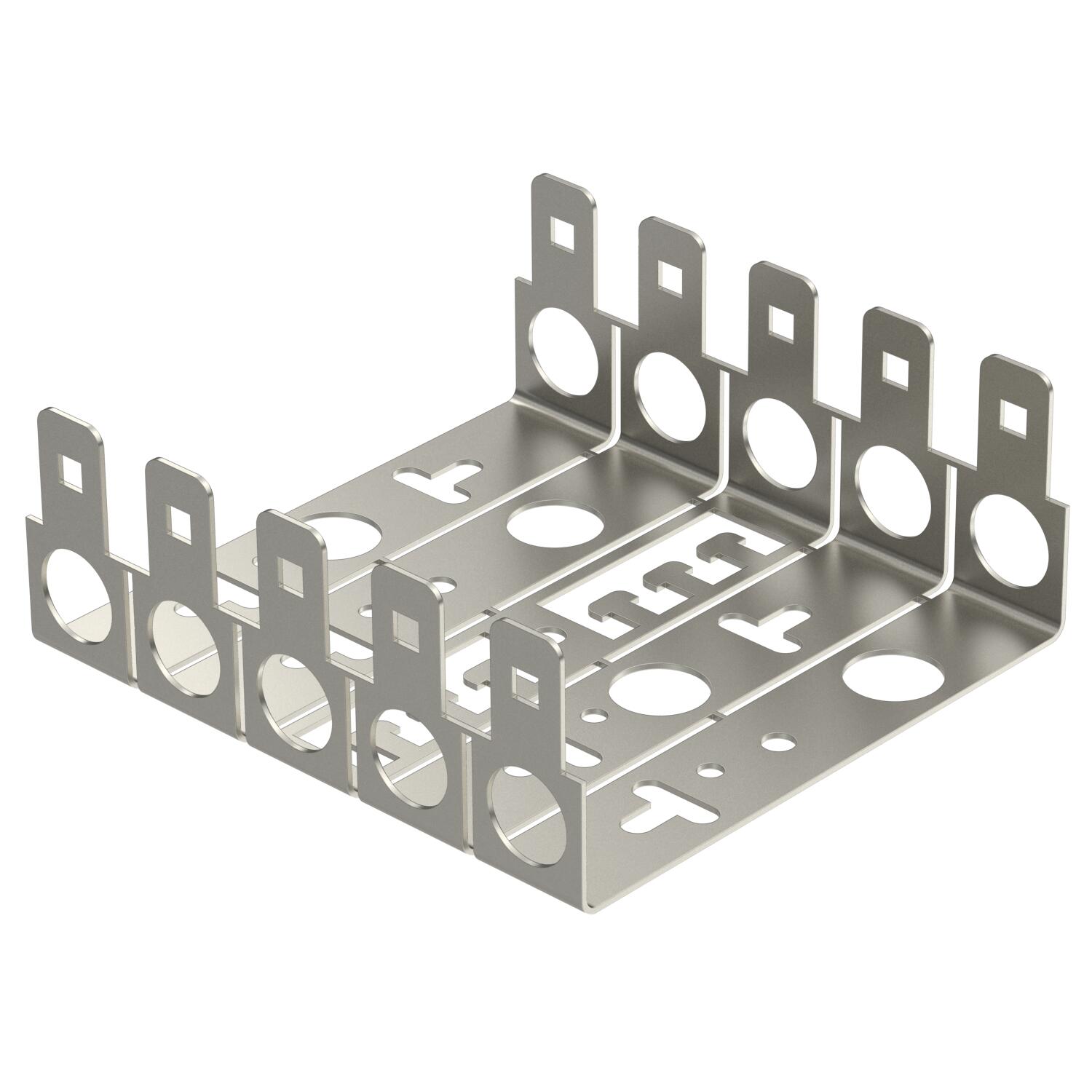

Product descriptionInstallation trough for 5 connection rails or separating strips. Grid 22.5 mm.
Depth: 22 mm; 30 mm; 50 mm
LSA-Plus mounting trough for mounting LSA Plus connection rails and separating strips.
-
- Technical data
-
Technical data

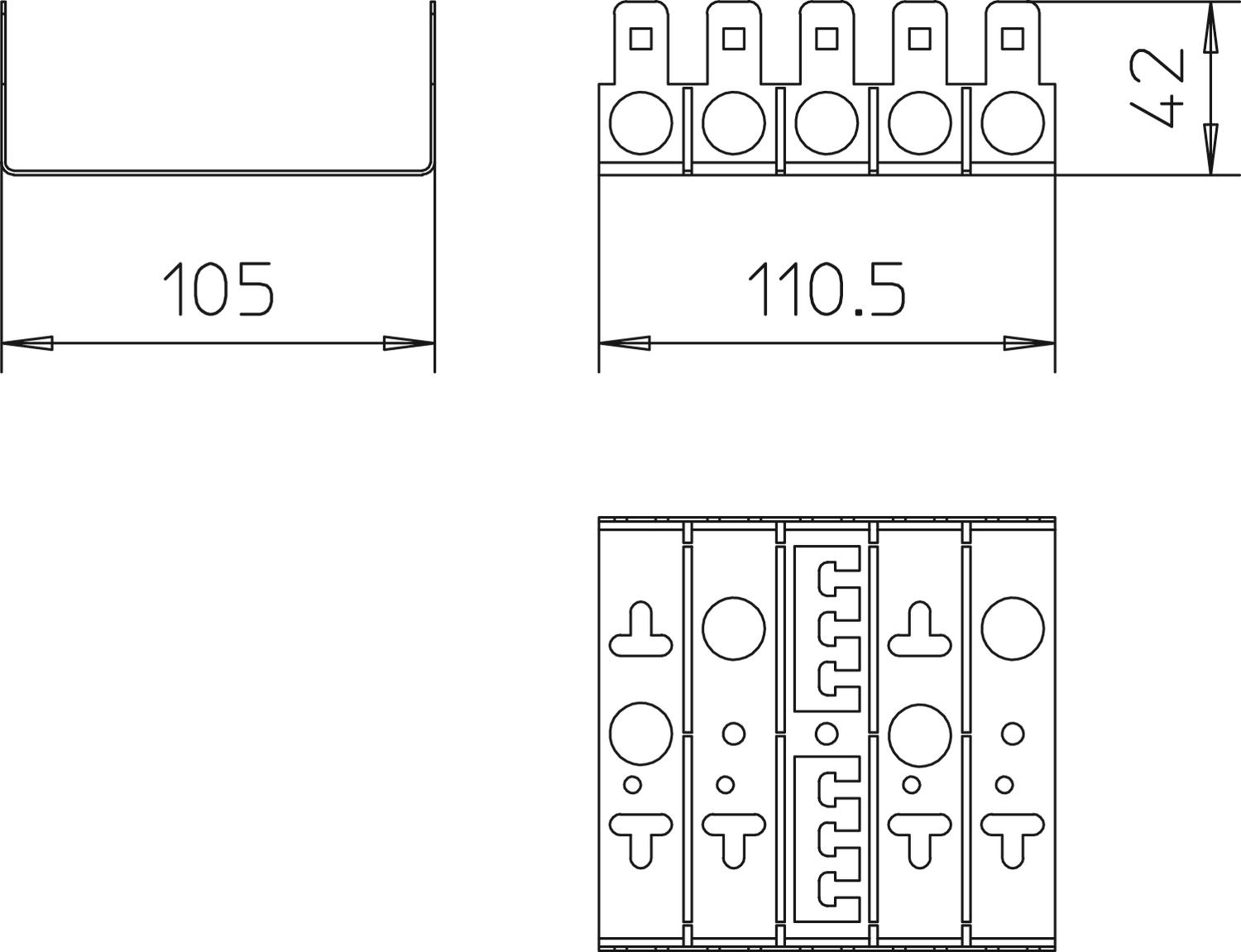

Dimension 5 Grid 22,5 mm Height 42 mm Length 110,5 mm Material Steel Number of installable connection strips 5 Width 105 mm - All types
- Downloads
-
Data sheet LSA-M / 5084036 , 0.21MB , pdfEU declaration of conformity LSA-M / 5084036 , 0.06MB , pdfREACH Declaration of conformity LSA-M / 5084036 , 0.12MB , pdfRoHS Declaration of conformity LSA-M / 5084036 , 0.12MB , pdfTechnical information Technical information, LSA ... , 0.47MB , pdf
