Joint cover, trunking height 90 mm
Item no. 6279788 | EAN 4012195667940
- Product description
-
Product description

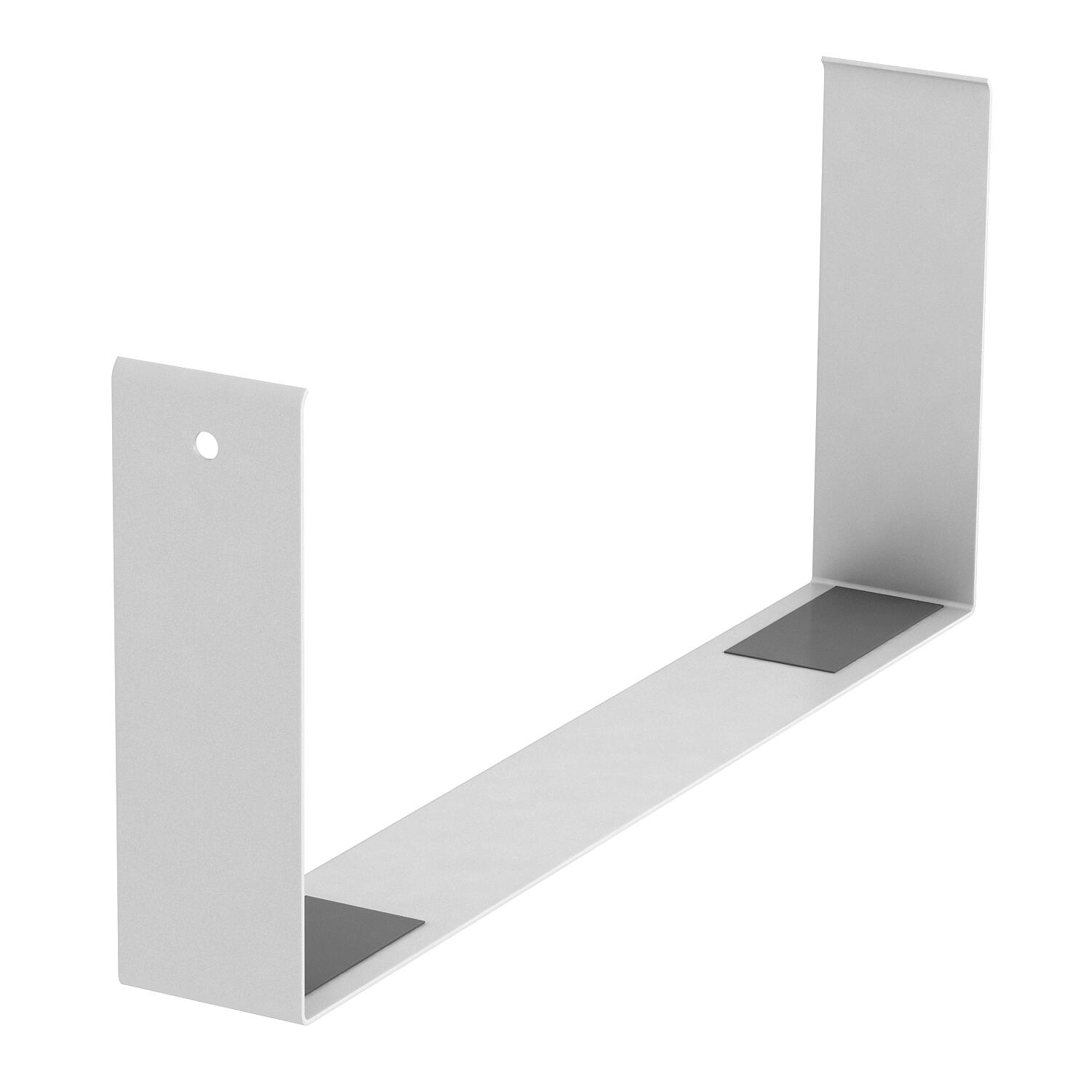

Joint cover to hide sawn trunking joint edges.
-
- Technical data
-
Technical data

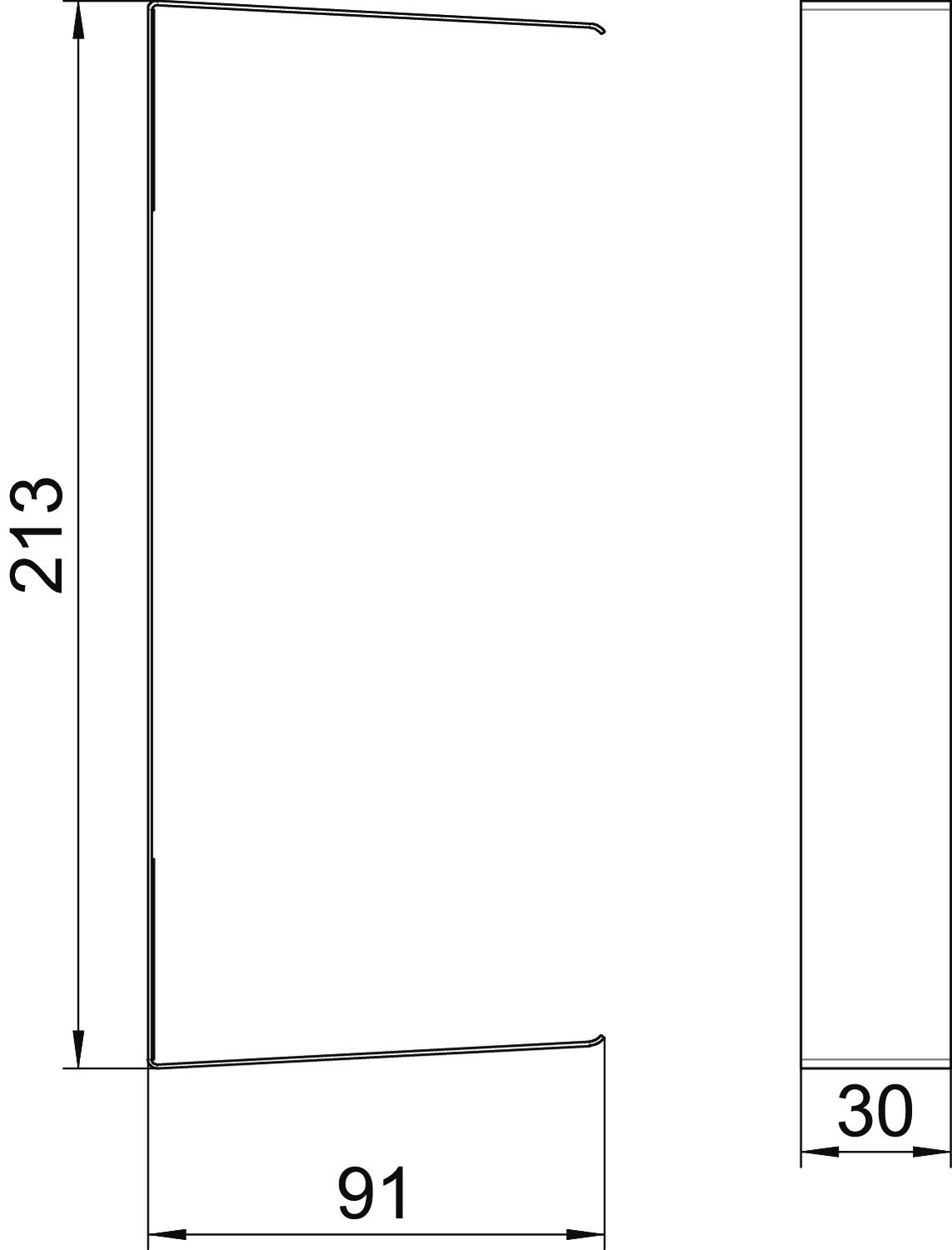

Colour Pure white; RAL 9010 Cover width 76,5 mm Dimension 90x210x30mm Duct height, min. 90 mm Fastening type Self-adhesive for duct dimension 90x210 for duct width 210 mm for trunking height 90 mm Halogen-free yes Height 91 mm Length 30 mm Material Steel Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Protection rating IP30 Protection rating IK code IK10 Shape Universal Trunking depth 90 mm Version for Trunking cut cover Width 213 mm - All types
- Downloads
-
Data sheet G-SVS90210RW / 6279788 , 0.19MB , pdfDeclaration of conformity G-SVS90210RW / 6279788 , 0.13MB , pdfUK Declaration of Conformity G-SVS90210RW / 6279788 , 0.14MB , pdfNo invitation to tender text is available for this product.
