Joint connector FT
Item no. 6016573 | EAN 4012196593873
- Product description
-
Product descriptionJoint connector for mesh cable tray, type SGR.
Figure: Positioning and quantity of mesh cable tray connectors.
50–150 mm = 2 units
200–300 mm = 3 units
400–450 mm = 4 units
500–600 mm = 5 units
-
- Technical data
-
Technical data

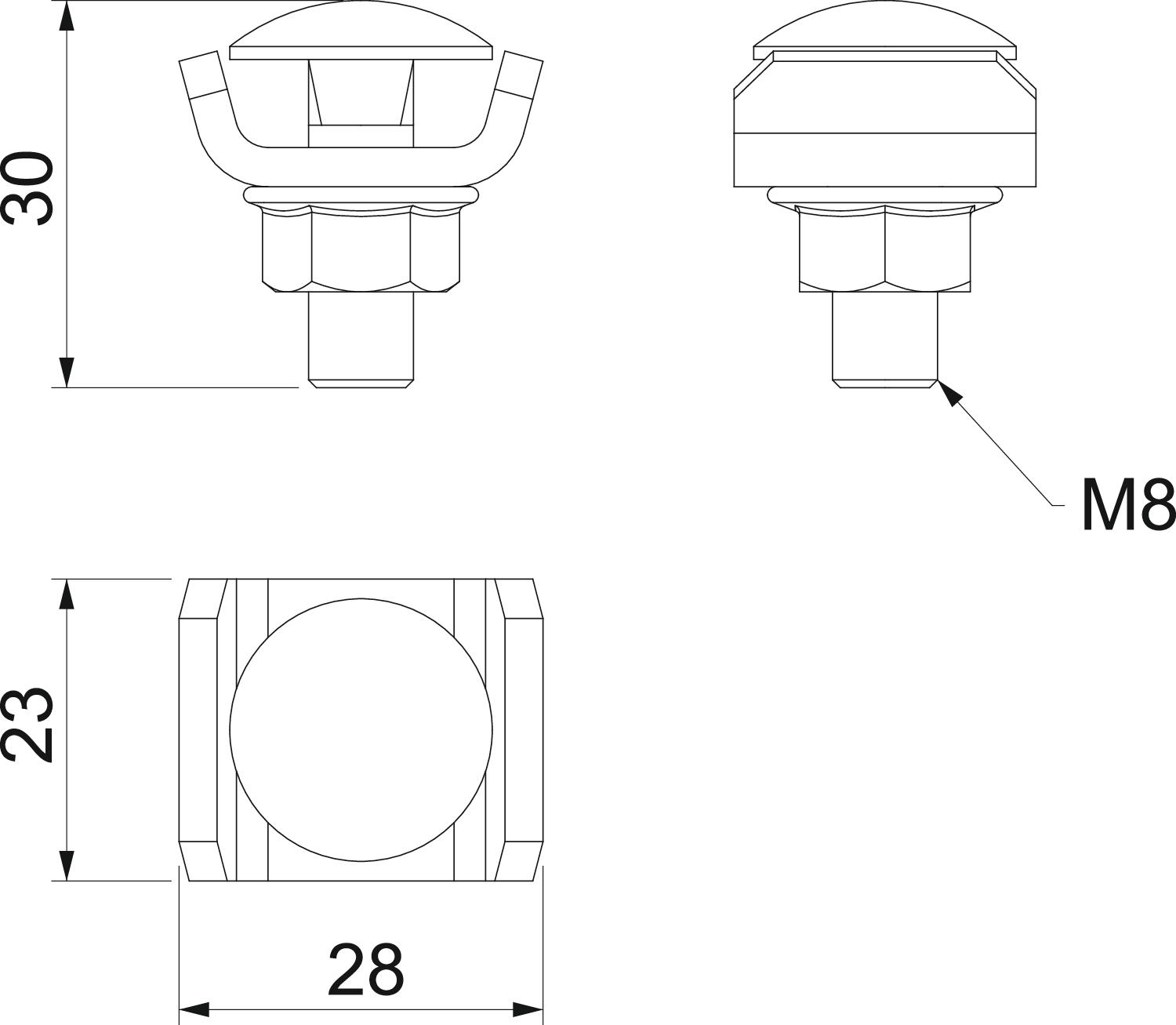

Adjustable connector, horizontal no Articulated connector, vertical no Colour zinc Connection type Screw connector Dimension 24 x 28 Dimension 24x28x30 Height 1,18 in Height 30 mm Length 24 mm Maintain electrical functions no Material Steel Rustproof steel, pickled yes Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Suitable for mesh cable tray wire, min. 6 mm Surface Hot-dip galvanised Width 28 mm Width 1,1 in - All types
