isFang support for wall mounting, 200 mm spacing
Item no. 5408910 | EAN 4012196219476
- Product description
-

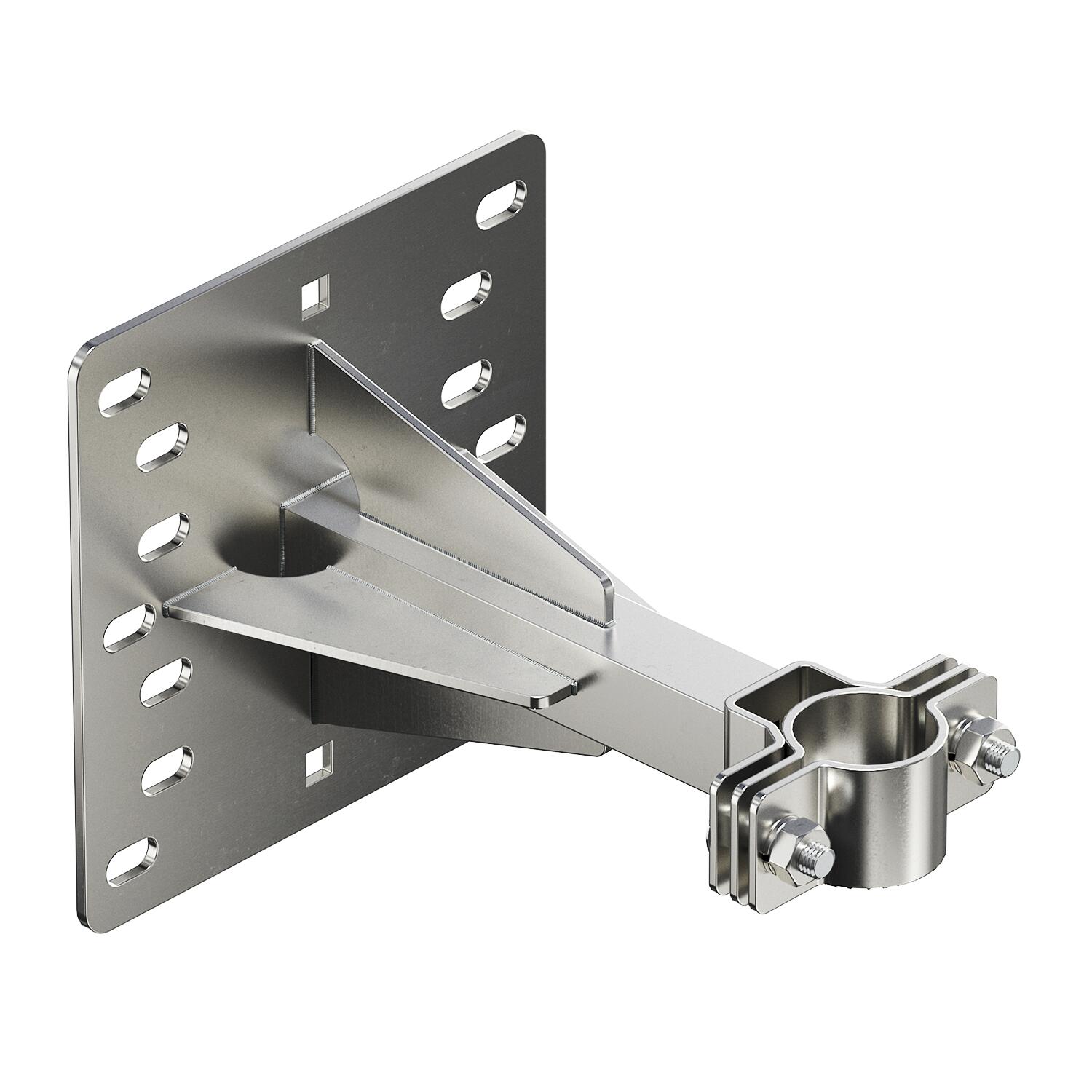

Product descriptionFastening clip to fasten the insulated support pipes on the structure to be protected or on the wall.
- Technical data
-
Technical data

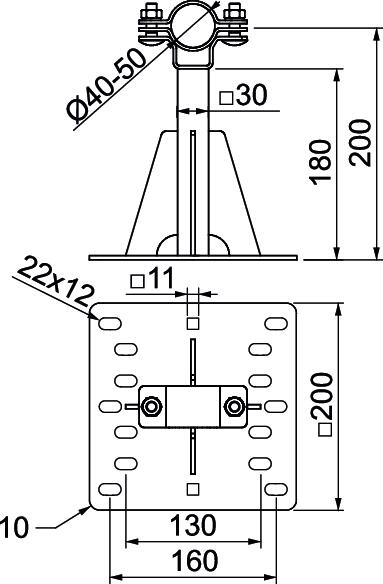

Dimension 200x200mm Dimension d min. 50 mm Dimension L 200 mm Height 200 mm Holder fastening type Drill hole Length 247 mm Material Stainless steel Material of the base Stainless steel, rustproof 1.4301 Rod fastening type With screw clip Width 200 mm - All types
- Downloads
-
Data sheet isFang TW200 12 / 5408910 , 0.16MB , pdfMounting instructions Extended mounting instructions, long isCon® , 6.17MB , pdf
