- Product description
-
Product description
• For routing OBO isCon® conductors in pipes
• For installation on the building structure with isFang support
• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• Tested according to VDE V 0185-561-8 (IEC TS 62561-8)
• Aluminium standpipe and air-termination tip
• Centre section made of fibre-glass reinforced plastic (GRP)
- Technical data
-
Technical data

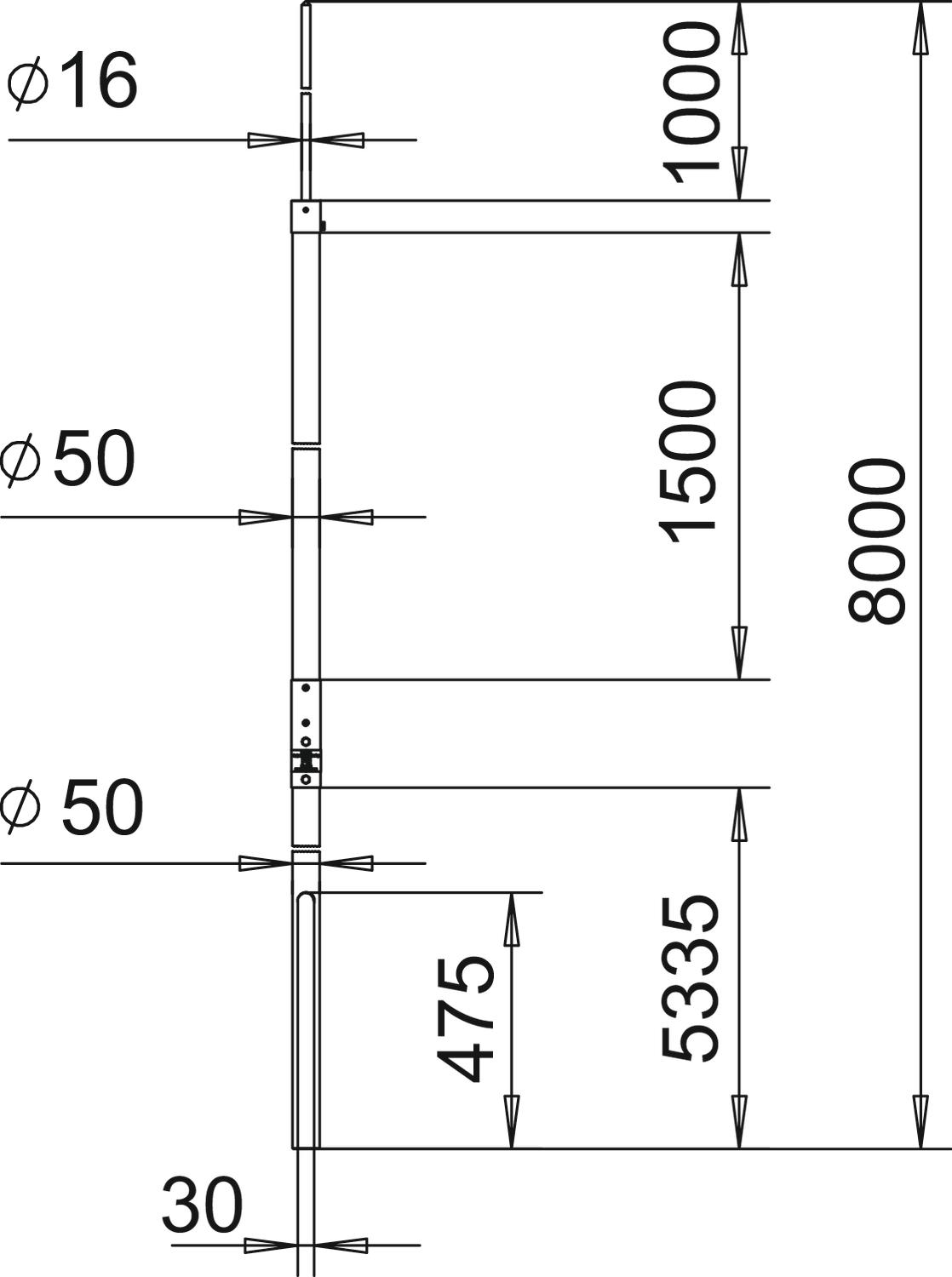

Connection Round conductor Dimension 8000mm Dimension A 5335 mm Dimension B 1000 mm Dimension d min. 50 mm Dimension H 1500 mm Dimension L 8000 mm High voltage-resistant, insulated version yes Length 8000 mm Material Fibre-glass-reinforced plastic Version for Air-termination rod - All types
- Downloads
-
Data sheet isFang IN L8 / 5408858 , 0.18MB , pdfDeclaration of conformity isFang IN L8 / 5408858 , 0.06MB , pdfMounting instructions Mounting instructions, isFang tripod , 0.18MB , pdfMounting instructions Mounting instructions, isFang IN insulated air-termination mast , 0.13MB , pdf
