Insert plate DD 3000 | 200 |
morepic-1 morepic-2 video-1 video-2

Insert plate DD

Item no. 6103352 | EAN 4012196029150

3000 mm
Product description

Product description

Insert plate for use in cable ladders.
For the fastening in wide span cable ladders use truss-head bolts with the combination nut of type FR SB 6x30.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 45 mm
  • Cable ladder, side height 60 mm
  • Cable ladder, side height 110 mm
Technical data

Technical data

Colour zinc

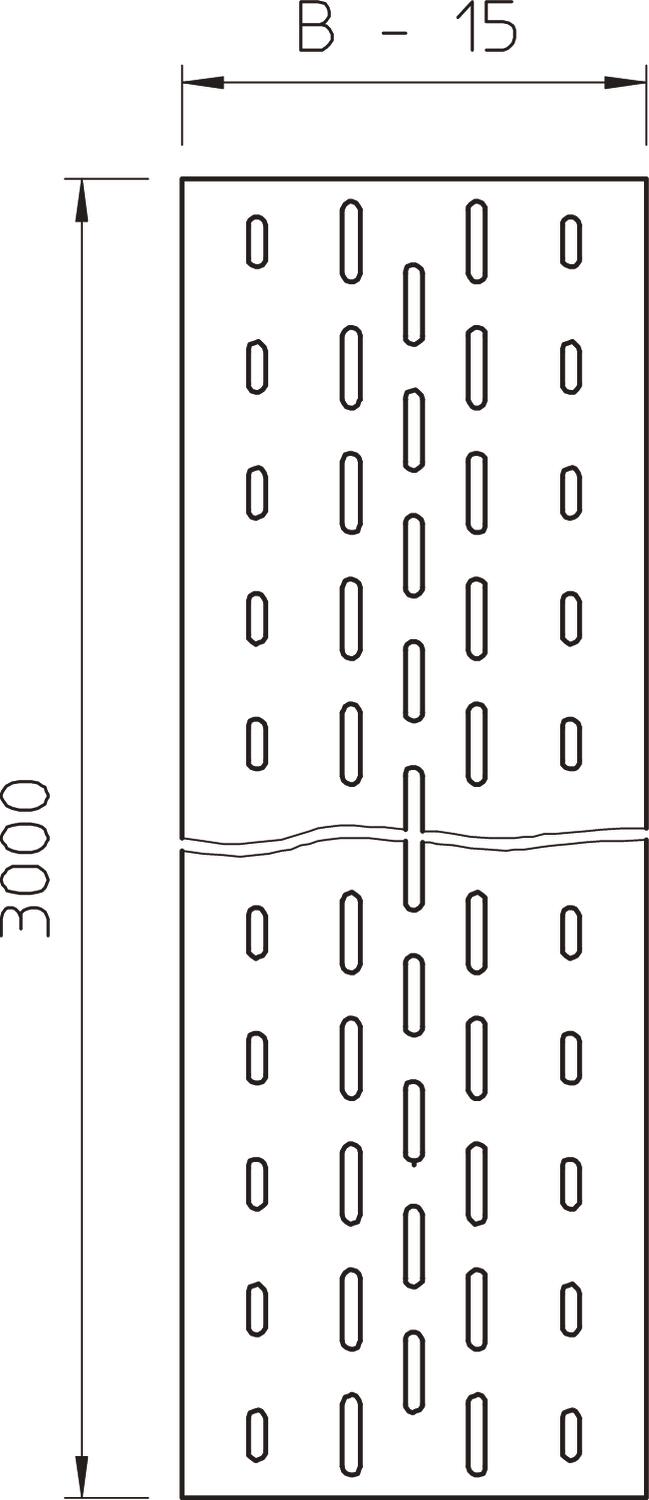

Dimension 200x3000
Dimension B 200 mm
Height 45 mm
Length 3000 mm
Material Steel
Material thickness 1 mm
Surface Strip galvanised zinc/aluminium, Double Dip
Width 200 mm
All types

All types

Types Length Width Item no. Quantity SSU
ELB-L 20 DD 3000 mm 200 mm 6103352
3 m
ELB-L 30 DD 3000 mm 300 mm 6103356
3 m
ELB-L 40 DD 3000 mm 400 mm 6103360
3 m
ELB-L 50 DD 3000 mm 500 mm 6103364
3 m
ELB-L 60 DD 3000 mm 600 mm 6103368
3 m
