HoverCube VH-4, 3x protective contact socket, 1x CEE 16 A 3 | 1 | | Without | Graphite black; RAL 9011

HoverCube VH-4, 3x protective contact socket, 1x CEE 16 A

Item no. 6109804 | EAN 4012195125075

Item no. / Types	6109804 / VH-4 3SD1C16

Number of SCHUKO sockets	3

Number of CEE sockets	1

FI protection switch	Without

Colour	Graphite black; RAL 9011

Product description

Product description

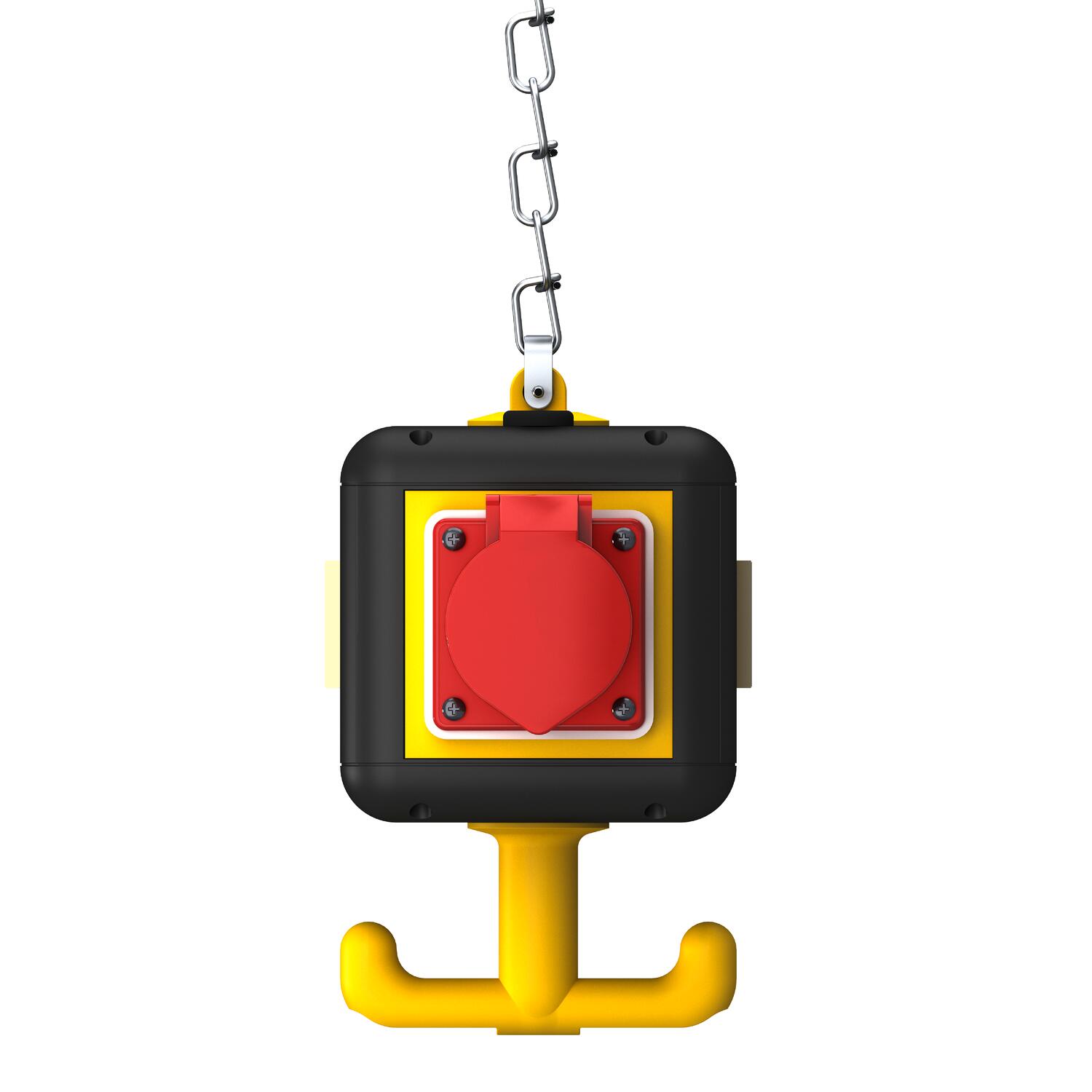

Housing equipped and prewired with suspension lug, grip hook and four cover plates.

Equipped as follows:
3 x single protective contact sockets 16 A/250 V with increased touch protection, prewired for an AC current, connection via 1 x 3-pole terminal, 1 x CEE socket 16 A/415 V, with partition for circuit separation.

- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.

Technical data

Technical data

CEE socket, 125 A	Without
CEE socket, 16 A	1x16A5p400V
CEE socket, 32 A	Without
CEE socket, 63 A	Without
Colour	Graphite black; RAL 9011
Depth	196 mm
Dimension	140x140x252
FI protection switch	Without
Handling	abhängbar

Height	247 mm
Material	Polyamide
Military version	no
Number of CEE sockets	1
Number of SCHUKO sockets	3
Protection rating	IP20
Supply/connection option	Miscellaneous
Width	140 mm
