G mesh cable tray Magic® 75 FT
Item no. 6005523 | EAN 4012195686408
- Product description
-

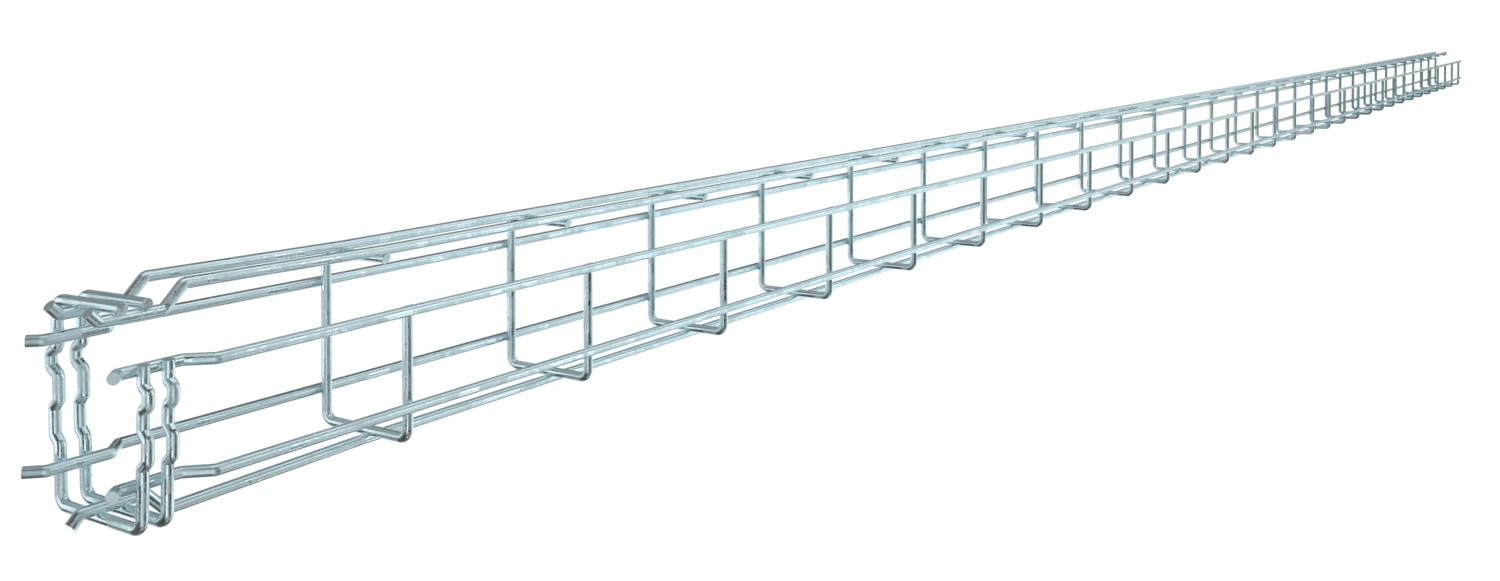

Product descriptionG-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths.
Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.
Magnetic shield insulation 15 dB.
-
- Technical data
-
Technical data
Colour zinc Connector version Integrated connector CO₂ Footprint (GWP) Cradle-to-Gate 1,768 kg CO₂e / 1 Meter Dimension 75x50x3000 Dimension A 53 mm Dimension B 53 mm Dimension C 38 mm Dimension H 73 mm Height 2,95 in Height 75 mm Integrated partition Without Length 3000 mm Load test type according to IEC 61537 Type II Maintain electrical functions yes Material Steel Profile shape G-shaped Rustproof steel, pickled no Screwless connector yes Surface Hot-dip galvanised Type of connector, cable support system Click fastening Usable cross-section 22 cm² Usable cross-section 2200 mm² Wide-span version no Width 1,97 in Width 50 mm Wire diameter 3,9 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Joint connector FT
GSV 34 FT 6016634 20 piece
Wall clamp and central hanger FT
WB GR FT 6017160 20 piece - Downloads
-
Data sheet G-GRM 75 50 FT / 6005523 , 0.23MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity G-GRM 75 50 FT / 6005523 , 0.13MB , pdfREACH Declaration of conformity G-GRM 75 50 FT / 6005523 , 0.12MB , pdfRoHS Declaration of conformity G-GRM 75 50 FT / 6005523 , 0.12MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfSelection aid GR-Magic® , 2.00MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
