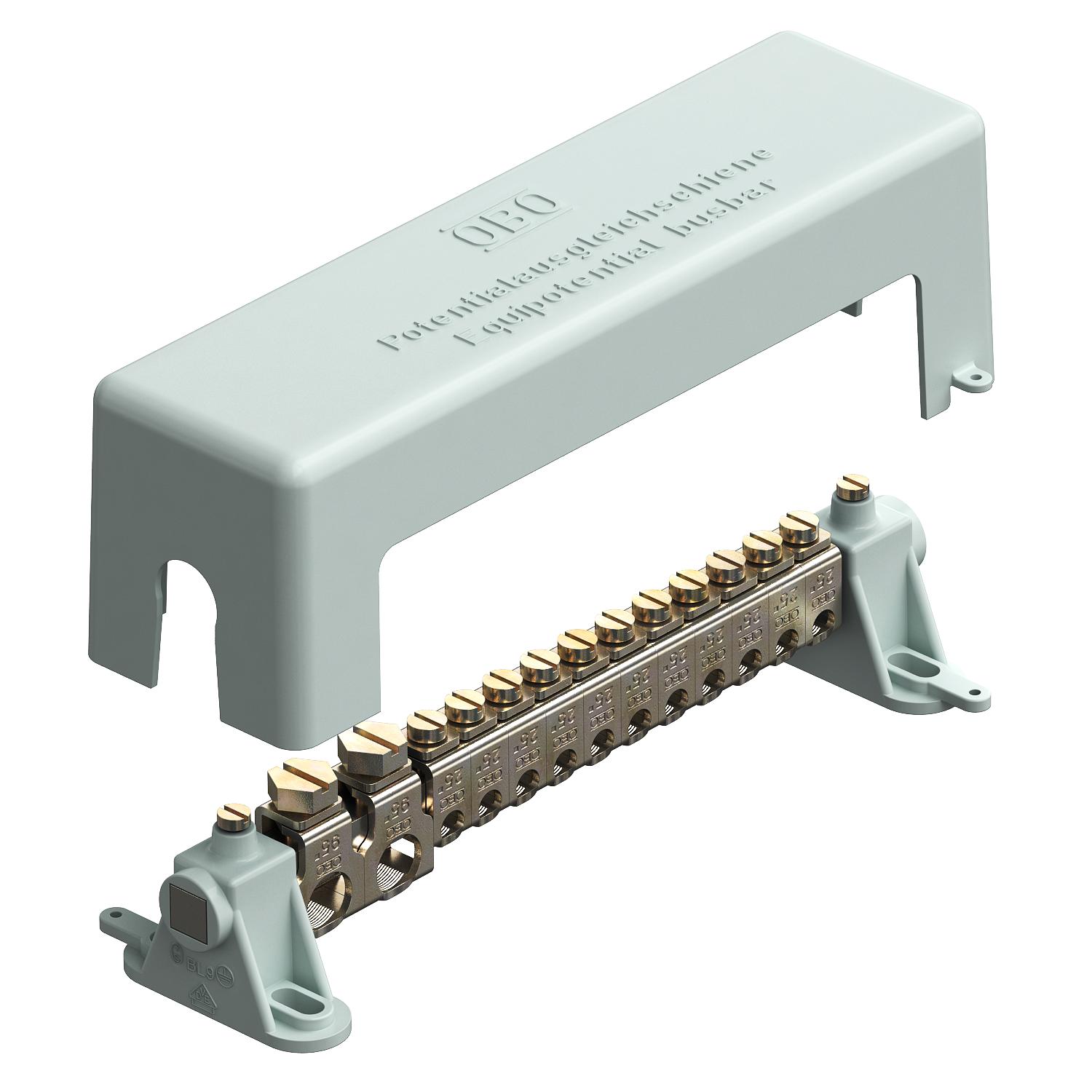

Equipotential busbar for indoors

Item no. 5015680 | EAN 4012195313021

Item no. / Types

Length

Width

Height

Colour

Product description

Product description

Equipotential busbar for equipotential bonding to DIN VDE 0100-410/-540 as well as lightning protection equipotential bonding to DIN VDE 0185-305

• According to VDE 0618, Part 1
• With 10 x 10 mm clamping rail made of nickel-plated brass
• With contact-secure series terminals made of electrogalvanised steel
• Cover and rail stands made of grey polystyrene
• Sealable / labellable cover
• Lightning current carrying capacity 100 kA (10/350)
• Tension clamp with screw lock against self-loosening (e.g. required in industry)

Connection options:
• 11 single or multi-wire cables 2.5–25 mm² or fine-wire cables to 16 mm² (max. Ø 7 mm)
• 2 single or multi-wire cable 25–95 mm² or fine-wire cable to 70 mm² (max. Ø 13.5 mm)

Technical data

Technical data

Dimension	188mm
Insulator	yes
Material	Brass
Material of the contact rail	Brass
Material of the terminal	Steel
Quantity of cable connections up to 25 mm², rigid	11

Quantity of cable connections up to 95 mm², rigid	2
Surface of the contact rail	Nickel-plated
Surface of the terminal	Electrogalvanised
Type	Modular structure
Version for	With cover hood
