Empty housing X 02 85x85x57 | | IP67 | | Light grey; RAL 7035

Empty housing X 02

Item no. 2005454 | EAN 4012196577606

Item no. / Types

Clear internal dimensions	85x85x57 mm

Protection rating	IP67

Colour

Product description

Product description

Junction box for the connection of cables and lines indoors and in outdoor areas. Square design without entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.

Junction box according to EN 60670. Impact resistance IK09 according to EN 50102. Protection rating IP67 according to EN 60529.

Technical data

Dimensions

Clear internal dimensions	85x85x57 mm
Colour	Light grey; RAL 7035
Cover fastening	Screwed

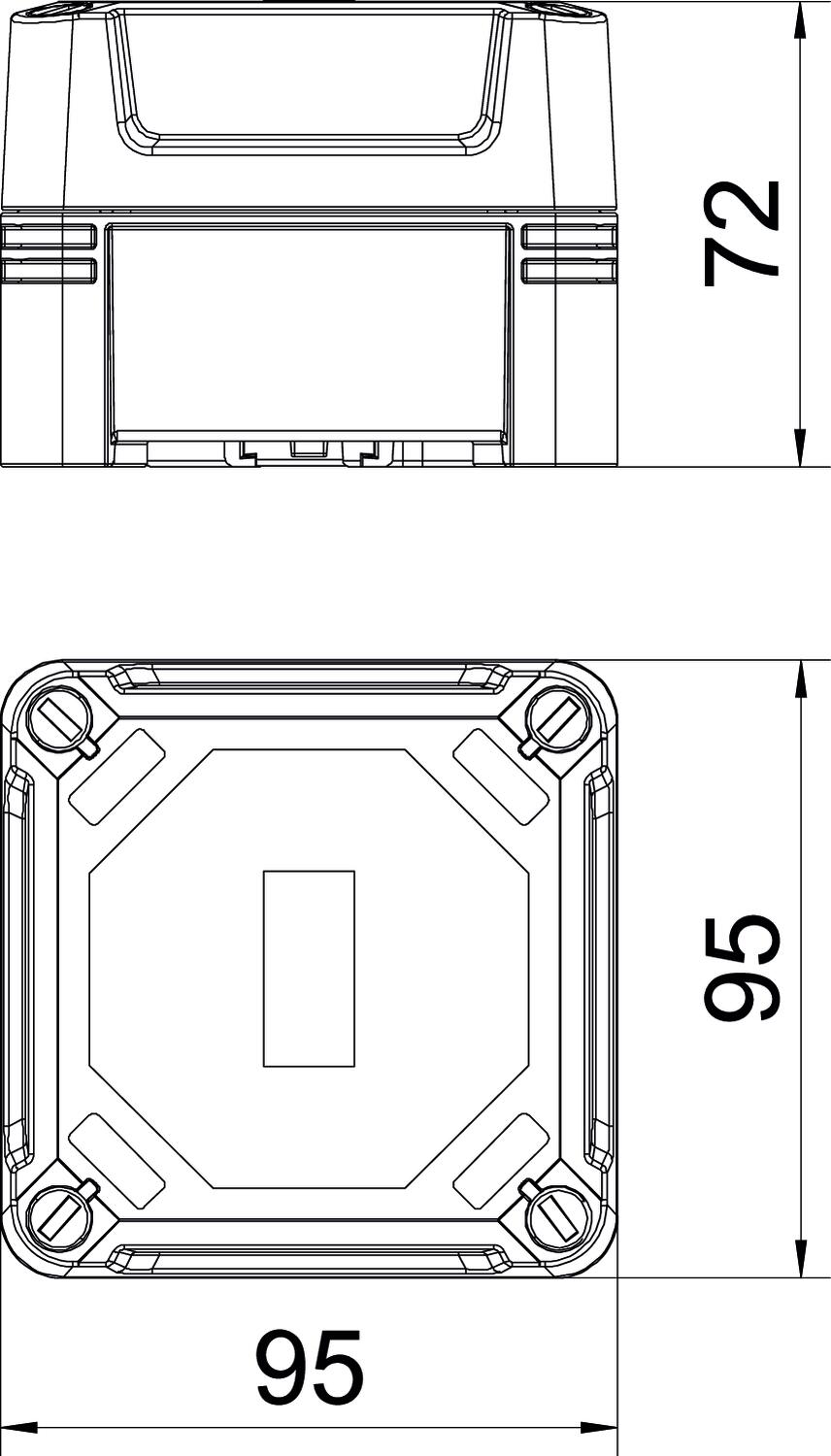

Dimension	95x95x72
Height	72 mm
Length	95 mm
Material	Polycarbonate
Permitted temperature range, max.	60 °C

Permitted temperature range, min.	-5 °C
Protection rating	IP67
Protection rating IK code	IK09
Shape	Square
Suitable for outdoor use	yes
Weatherproof	yes
Width	95 mm
with lid	yes

All types

All types

Types	Clear internal dimensions	Protection rating	Colour	Item no.	Quantity	SSU
X02C LGR	85x85x57 mm	IP67	Light grey; RAL 7035	2005454	piece	1 piece
X02C LGR-TR	85x85x57 mm	IP67	Grey / transparent	2005524	piece	1 piece
X02C SW	85x85x57 mm	IP67	Graphite black; RAL 9011	2005594	piece	1 piece
