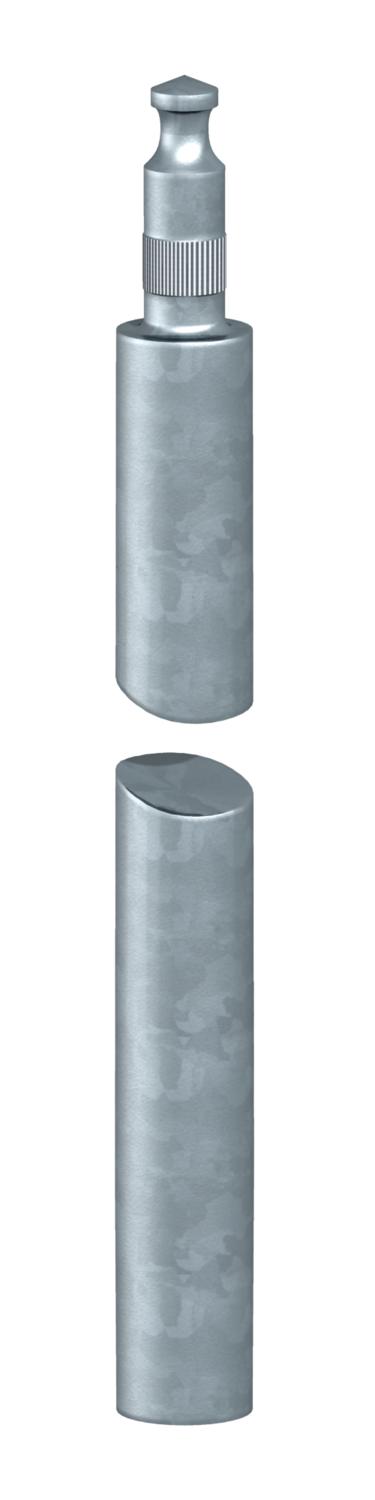

Earth rod BP

Item no. 5000955 | EAN 4012195371953

Item no. / Types

Length	1500 mm

External diameter

Material	Steel

Product description

Product description

• "BP" system (Bundespost)
• Very good contacting properties with soft metal inlay in the bore hole
• With peg and bore for linking together
• FT version with zinc coating approx. 130 µm
• Conforms to the requirements according to VDE 0185-305 (IEC 62305) and DIN EN 62561-2

Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate	0,925 kg CO₂e / 1 Meter
Dimension	1,5m

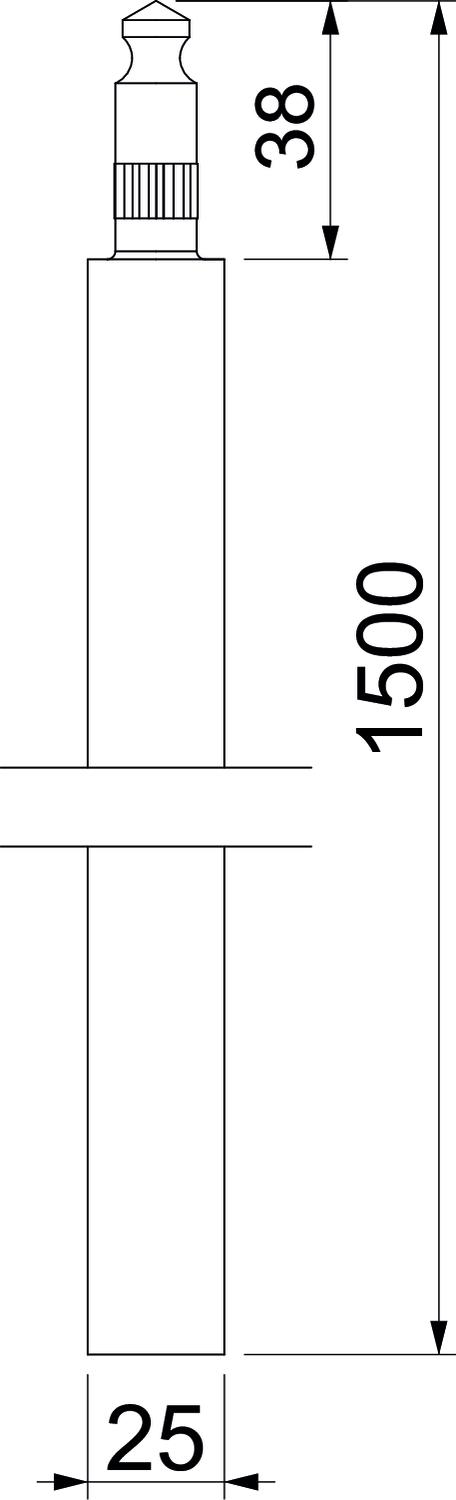

Dimension L	1500 mm
External diameter	25 mm
Length	1500 mm

Lightning current carrying capacity	H/100 kA
Material	Steel
Profile type	Round D=20 mm
Short-circuit current (50 HZ)(1 s;≤300°C)	12,3
Surface	Hot-dip galvanised

All types

All types

Types	Length	External diameter	Material	Item no.	Quantity	SSU
219 20 BP FT	1500 mm	20 mm	Steel	5000947	piece	5 piece
219 25 BP FT	1500 mm	25 mm	Steel	5000955	piece	5 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Driving spike for ST and BP earth rod	1819 25BP	3041956	piece	5 piece
Driving head for ST, BP and OMEX earth rods	1820 25	3042251	piece	1 piece
Connection clip for earthing rod to round cables Rd 8−10	2710 25 FT	5001226	piece	5 piece
Connection clamp for earth rod on flat conductor FT	2730 25 FT	5001412	piece	5 piece
Connection clamp for earth rod, universal FT	2760 25 FT	5001668	piece	5 piece
