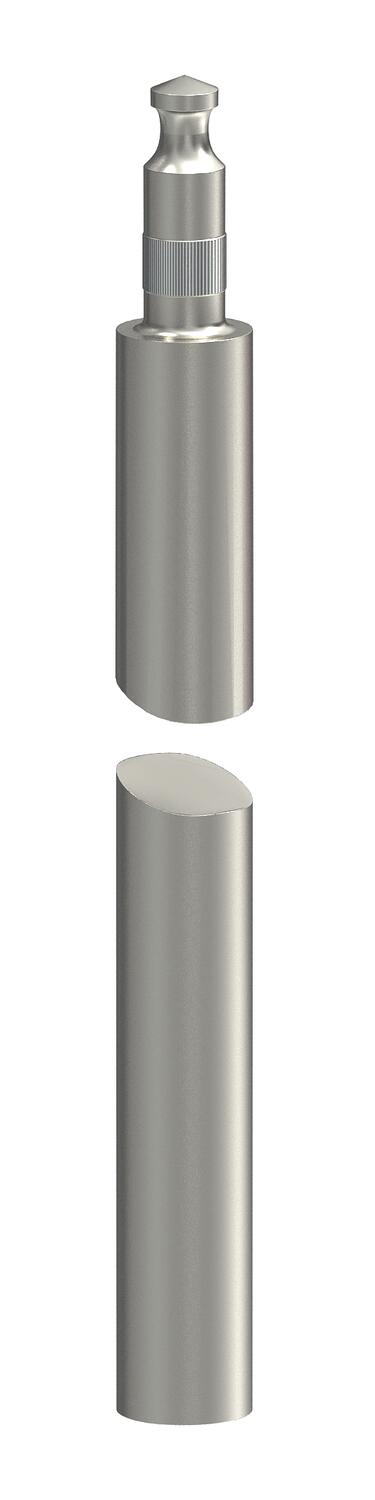

Earth rod BP 1000 | 20 | Stainless steel

Earth rod BP

Item no. 5000858 | EAN 4012195740650

Item no. / Types

Length

External diameter	20 mm

Material	Stainless steel

Product description

Product description

• "BP" system (Bundespost)
• Very good contacting properties with soft metal inlay in the bore hole
• With peg and bore for linking together
• Conforms to the requirements according to VDE 0185-305 (IEC 62305) and DIN EN 62561-2
• Short circuit current Ik (50 Hz), time 1 s, max. temp. 300 °C: 4.5 kA (219 20 BP V4A)

Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate	0,925 kg CO₂e / 1 Meter

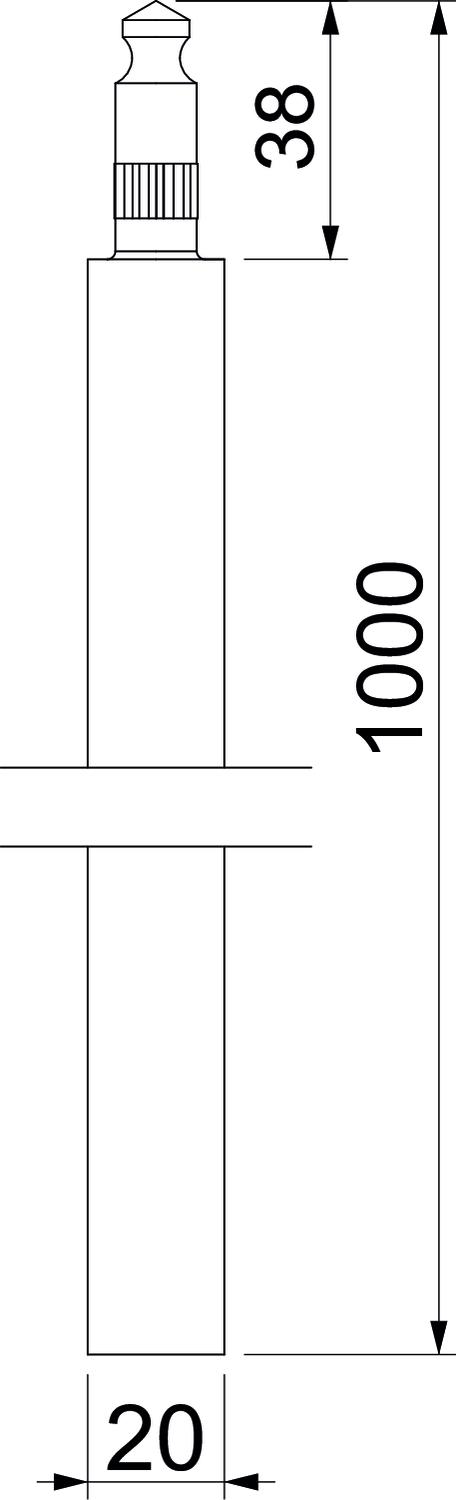

Dimension	1m
Dimension L	1000 mm
External diameter	20 mm
Length	1000 mm

Lightning current carrying capacity	H1/150 kA
Material	Stainless steel
Profile type	Round D=20 mm
Short-circuit current (50 HZ)(1 s;≤300°C)	4,2

All types

All types

Types	Length	External diameter	Material	Item no.	Quantity	SSU
219 20 BP V4A	1000 mm	20 mm	Stainless steel	5000858	piece	5 piece
219 20 BP V4A	1500 mm	20 mm	Stainless steel	5000866	piece	5 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Driving spike for ST and BP earth rod	1819 20BP	3041212	piece	5 piece
Driving head for ST, BP and OMEX earth rods	1820 20	3042200	piece	1 piece
Connection clip for earth rod, universal A4	2760 20 V4A	5001633	piece	5 piece
