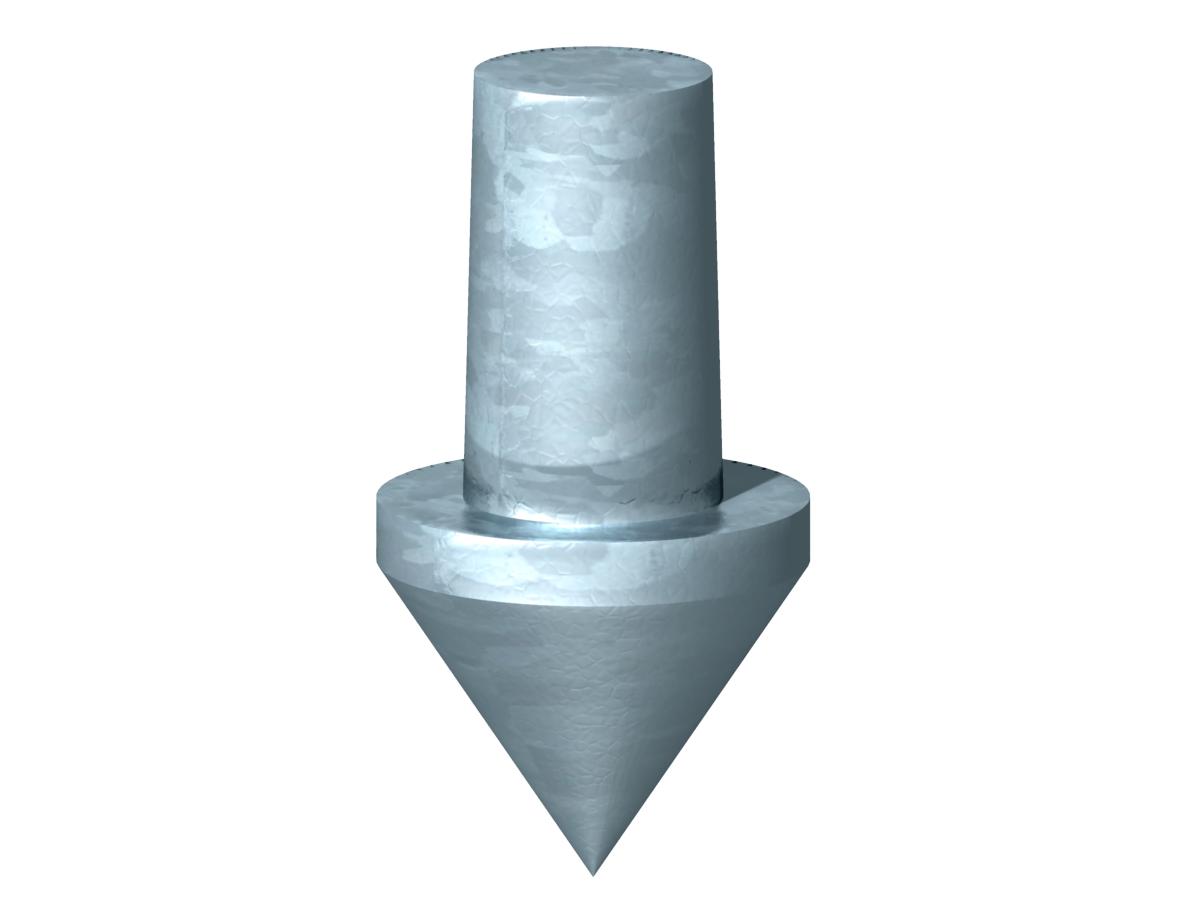

Driving spike for ST and BP earth rod

Item no. 3041212 | EAN 4012195242772

Item no. / Types

Earther diameter

for earth rods

Product description

Product description

• Suitable for ST and BP system

Technical data

Technical data

Dimension	20mm
Earther diameter	20 mm
for earth rods	20 mm

Material	cast steel
Surface	Hot-dip galvanised

All types

All types

Types	Earther diameter	for earth rods	Item no.	Quantity	SSU
1819 20BP	20 mm	20 mm	3041212	piece	5 piece
1819 25BP	25 mm	25 mm	3041956	piece	5 piece

Downloads

Data sheet 1819 20BP / 3041212 , 0.15MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Guide Guide, earthing systems , 2.10MB , pdf

Catalogue Equipotential bonding and earthing , 16.24MB , pdf

EU declaration of conformity 1819 20BP / 3041212 , 0.06MB , pdf

Download

REACH Declaration of conformity 1819 20BP / 3041212 , 0.12MB , pdf

Download

RoHS Declaration of conformity 1819 20BP / 3041212 , 0.12MB , pdf

Download

Selection aid Selection aid for foundation and ring earthers according to DIN 18014 , 0.19MB , pdf

Product graphic 1819 20BP / 3041212, 30.94 kB, jpg

Scale drawing 1819 20BP / 3041212, 38.73 kB, jpg

1819 20BP / 3041212

Tiefen_und_Plattener_Schlagspitze_für_Staberder_ST_und_BP.rfa, 348.00 kB
