Deskbox DBV, 2 sockets

Item no. 6116858 | EAN 4012195875369

Product description
Product description

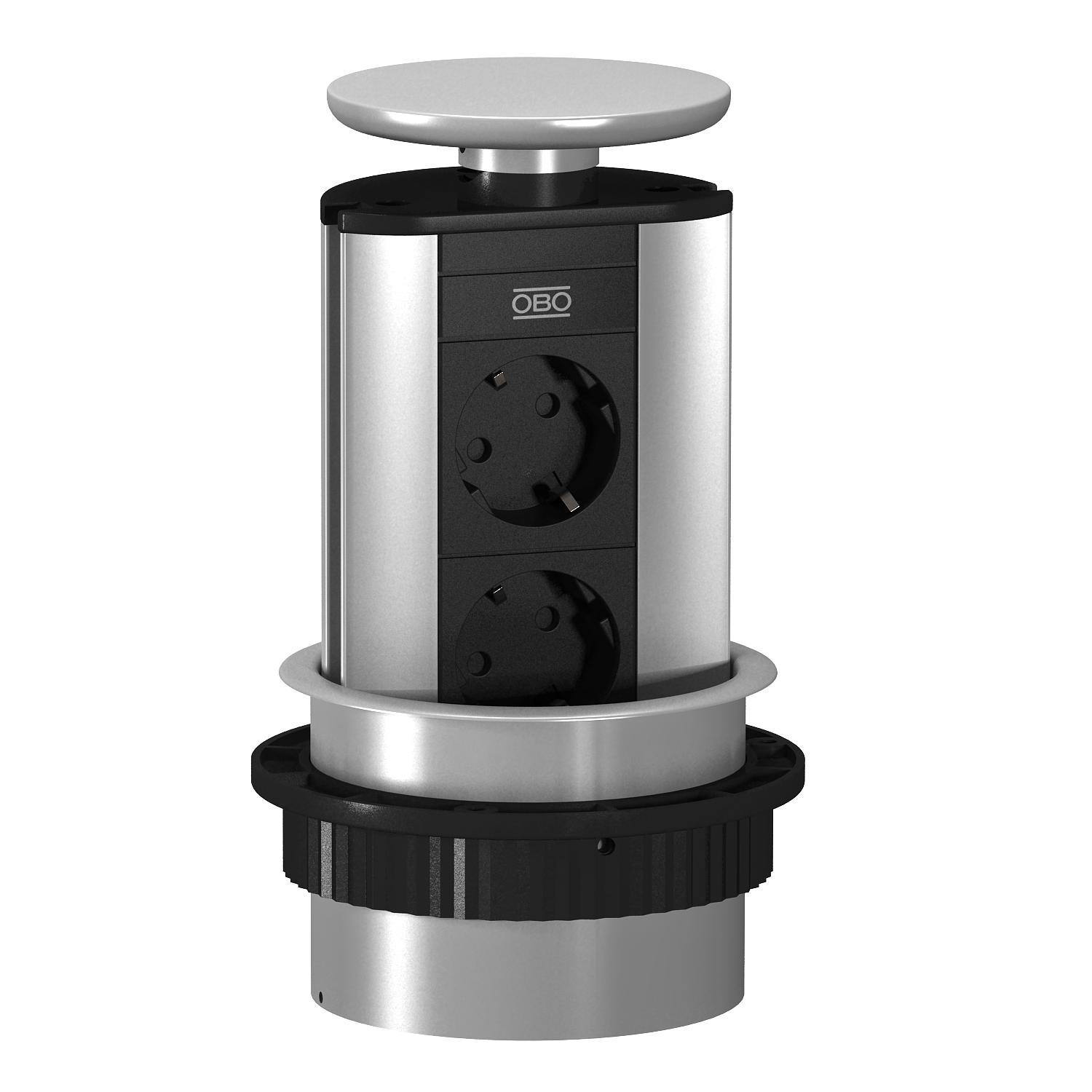

Lowerable Deskbox with connection cable for fixed installation on a tabletop, plastic fastening sleeve, painted accordingly in cover shade. It is mounted using a drill hole (Ø102 mm) in the tabletop.

Equipment:
- Two black protection contact sockets in 60° connection direction, incl. 3.0 m power cable with angular connector CEE 7/7.

Note: Can be used in tabletops of up to 50 mm thickness.
The ready-for-connection type DBV Deskbox is particularly suitable for the direct supply of workstations with energy, communication and data technology connections.


Technical data

Technical data

Colour aluminium
Extendable yes

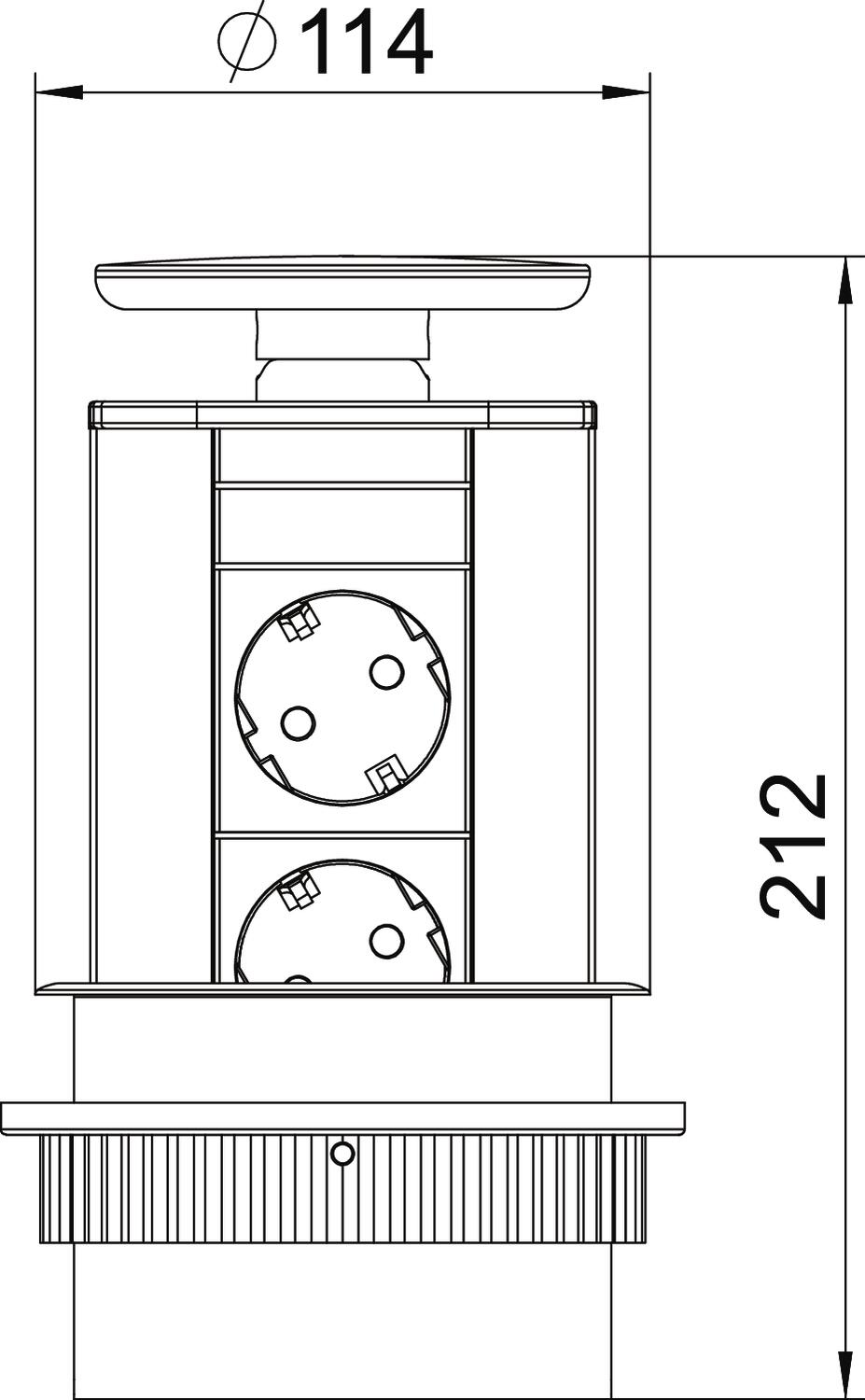

External diameter 114 mm
Foldable no
Length 212 mm
Length of the supply cable 3 m
Material Aluminium
Number of SCHUKO sockets 2
Surface Anodised
Surge protection no
Version for Stainless steel lid
All types

All types

Types Version for Item no. Quantity SSU
DBV-A3A D2S Lid, painted silver 6116854
1 piece
DBV-A3E D2S Stainless steel lid 6116858
1 piece
Downloads

Download

No invitation to tender text is available for this product.
