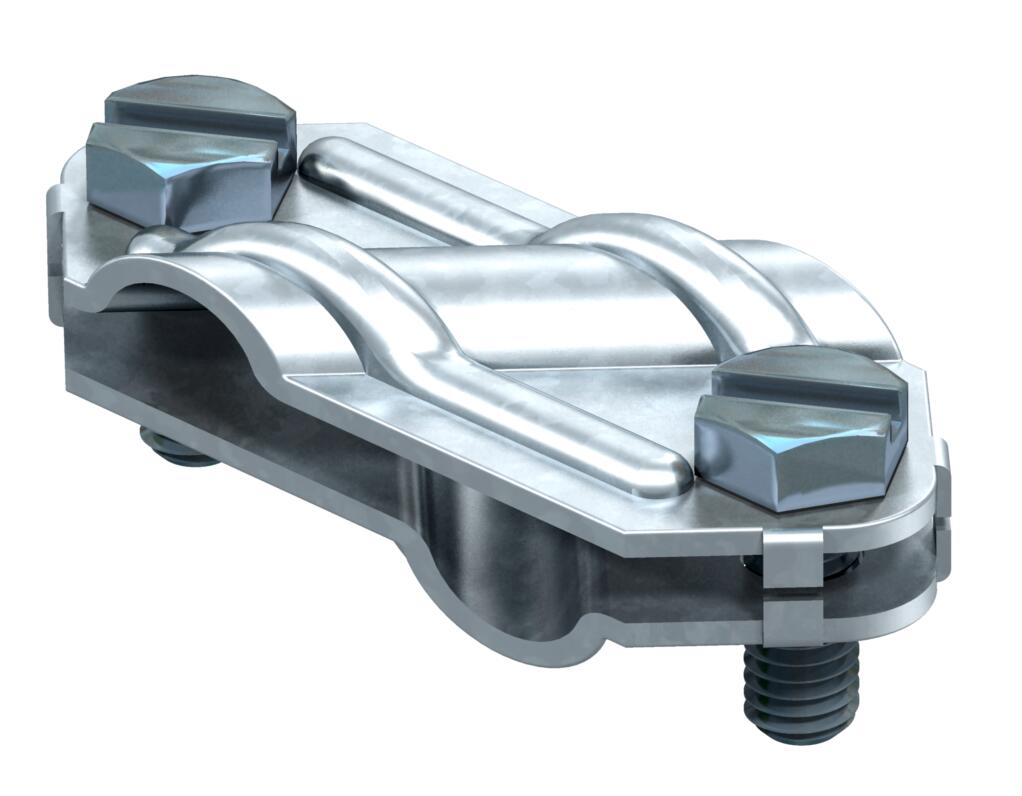

Cross-connector for flat conductors and round conductors FT Rd 8-10/FL30 | Hot-dip galvanised

Cross-connector for flat conductors and round conductors FT

Item no. 5312906 | EAN 4012195418696

Item no. / Types	5312906 / 250

Fit	Rd 8-10/FL30 mm

Surface	Hot-dip galvanised

Product description

Product description

• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)

• Fit: Rd 8-10 x Rd 8-10

• Fit: Rd 8-10 x FL 30

• Fit: FL 30 x FL 30

• Mounted with 2 hexagonal bolts M8 x 20 (F)

Technical data

Technical data

Dimension	8-10mm
Fit	Rd 8-10/FL30 mm
Intermediate plate	no
Lightning current carrying capacity	N/50 kA
Material	Steel

Short-circuit current (50 HZ)(1 s;≤300°C)	5,6
Suitable for connection	Round conductor Rd 8-10 / flat conductor Fl 30
Surface	Hot-dip galvanised
Type of connector	Cross-connectors
Type of fastening screw	Hexagonal bolt
