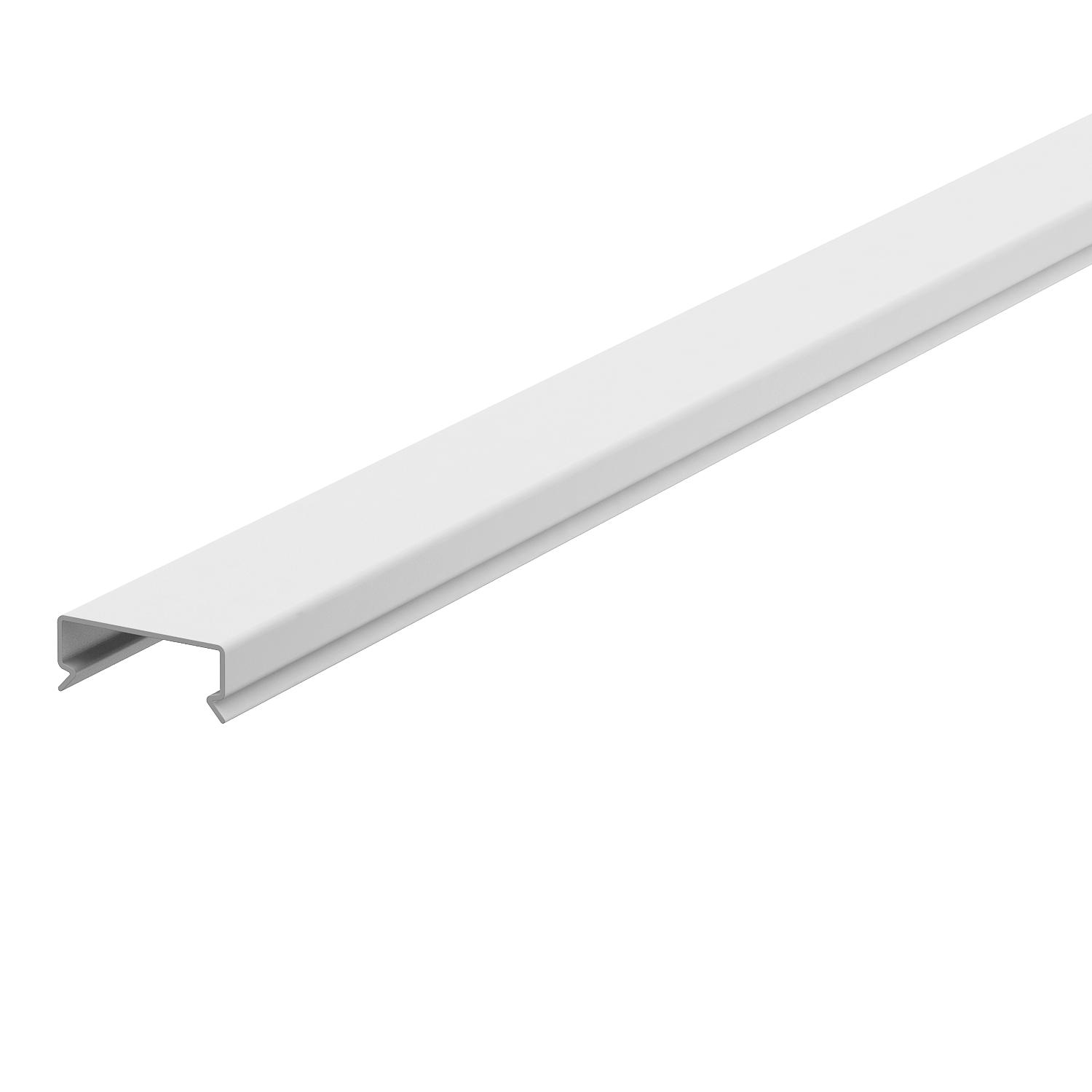

Cover LKVH D 37
Item no. 6178670 | EAN 4012195981459
- Product description
-
Product description
Trunking cover for replacement requirements.
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Dimension 37,5x2000 Halogen-free yes Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 90 °C Permitted temperature range, min. -25 °C Self-extinguishing yes Dimensions

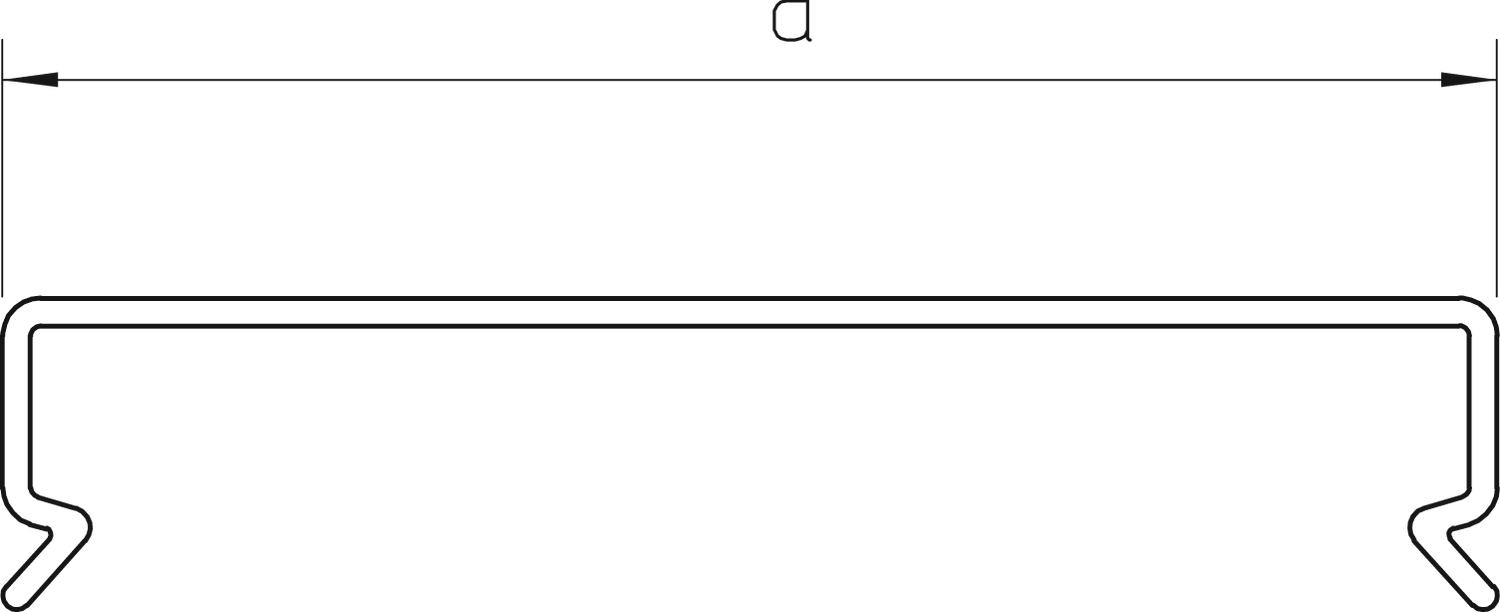

Dimension a 37,5 mm Length 2000 mm Width 37,5 mm - All types
- Downloads
-
Data sheet LKVH D 37 / 6178670 , 0.20MB , pdfBrochure Wiring trunking , 2.79MB , pdfCatalogue Cable routing systems , 17.62MB , pdfDeclaration of conformity LKVH D 37 / 6178670 , 0.13MB , pdfUK Declaration of Conformity LKVH D 37 / 6178670 , 0.14MB , pdfLabel approval VDE symbol approval LKVH , 0.55MB , pdfMounting instructions Mounting instructions, LK4/LK4H/LKV/LKVH wiring duct , 5.49MB , pdfNo invitation to tender text is available for this product.
