Cover for mesh cable tray, latchable A2
Item no. 6001874 | EAN 4012196687862
- Product description
-

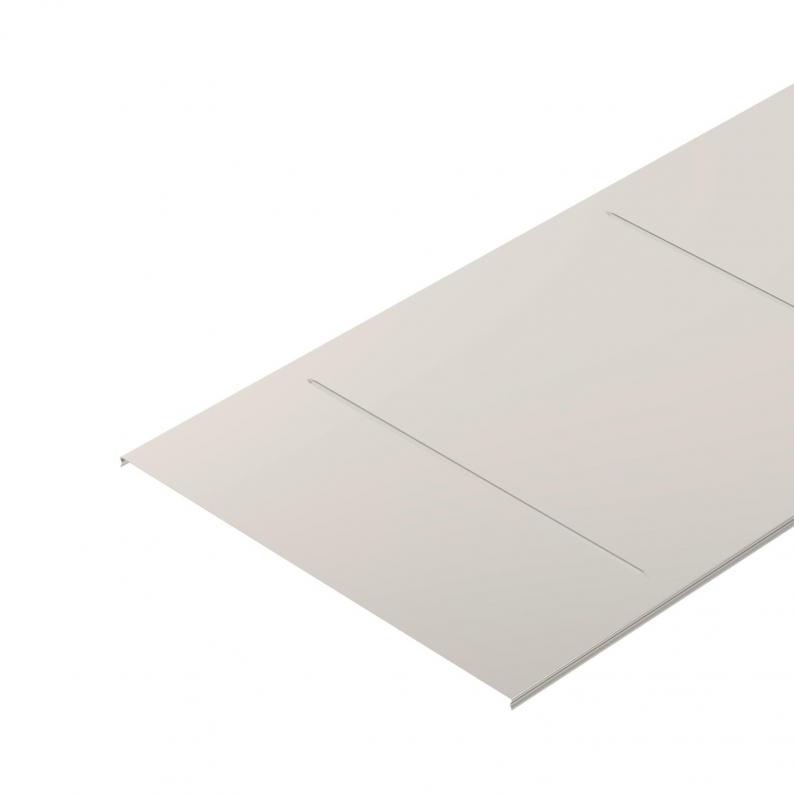

Product descriptionLockable cover for mesh cable trays of type GR and GRM. Protects cables from damage, contamination and moisture from above. Suitable for the foodstuffs or chemicals industries.
When using covers outdoors, additional measures against the influence of wind may need to be taken.
-
- Technical data
-
Technical data

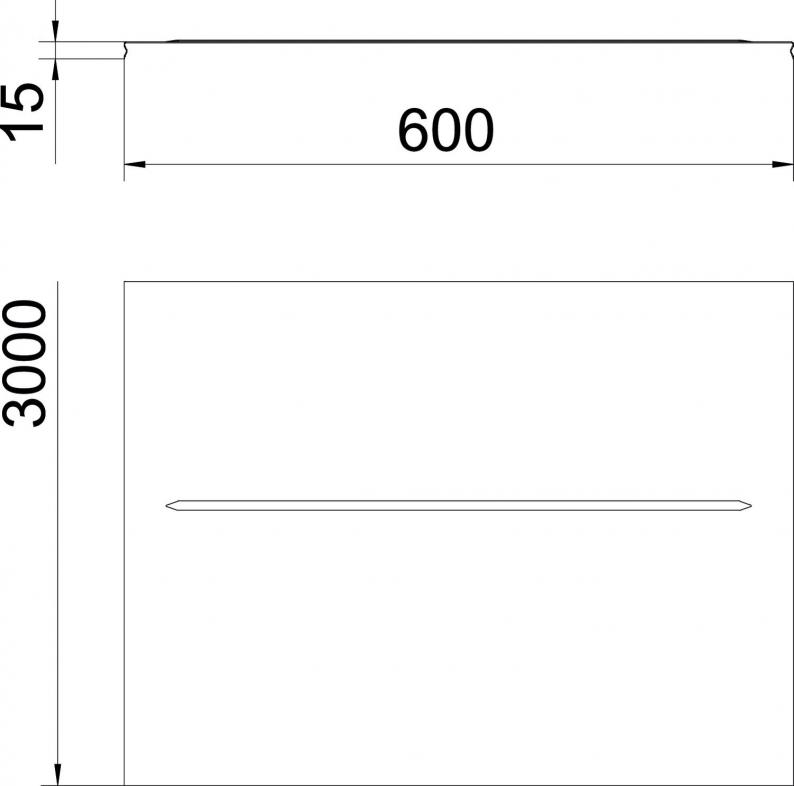

Colour stainless steel Dimension 600x3000 Dimension B 598 mm Fastening type Locking Height 0,59 in Height 15 mm Length 3000 mm Maintain electrical functions no Material Stainless steel Plate thickness 0,8 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Surface Bright, treated Width 23,54 in Width 598 mm - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Cover clamp, universal A2
DKU A2 6065600 20 piece - Downloads
-
Data sheet DGRR 600 A2 / 6001874 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity DGRR 600 A2 / 6001874 , 0.10MB , pdfREACH Declaration of conformity DGRR 600 A2 / 6001874 , 0.12MB , pdfRoHS Declaration of conformity DGRR 600 A2 / 6001874 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
