Cover for mesh cable tray, latchable A2
Item no. 6001872 | EAN 4012196687855
- Product description
-
Product description
Lockable cover for mesh cable trays of type GR and GRM. Protects cables from damage, contamination and moisture from above. Suitable for the foodstuffs or chemicals industries.
When using covers outdoors, additional measures against the influence of wind may need to be taken.
-
- Technical data
-
Technical data

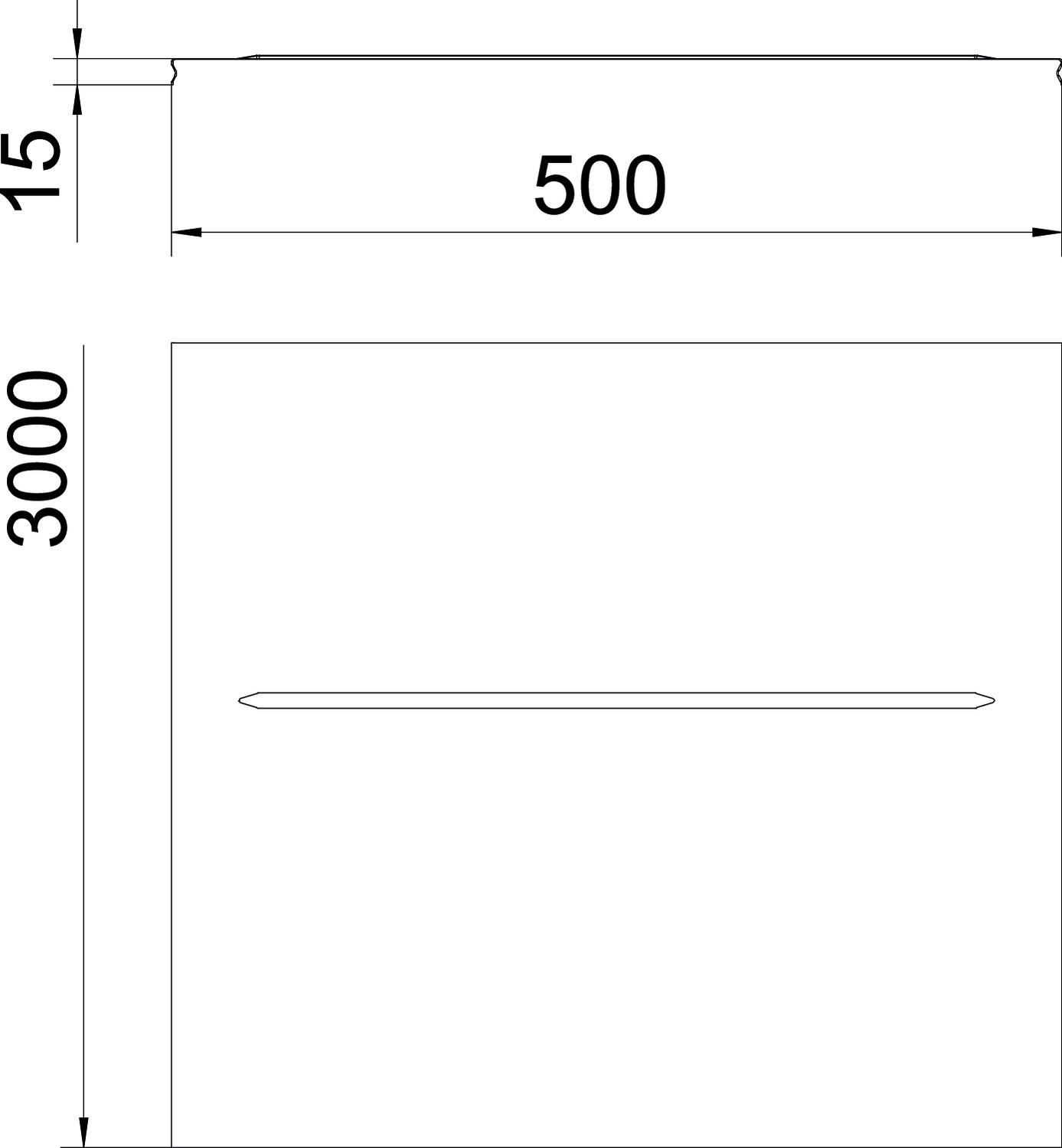

Colour stainless steel Dimension 500x3000 Dimension B 498 mm Fastening type Locking Height 0,59 in Height 15 mm Length 3000 mm Maintain electrical functions no Material Stainless steel Plate thickness 0,8 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Surface Bright, treated Width 498 mm Width 19,61 in - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Cover clamp, universal A2
DKU A2 6065600 20 piece - Downloads
-
Data sheet DGRR 500 A2 / 6001872 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity DGRR 500 A2 / 6001872 , 0.10MB , pdfREACH Declaration of conformity DGRR 500 A2 / 6001872 , 0.12MB , pdfRoHS Declaration of conformity DGRR 500 A2 / 6001872 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
