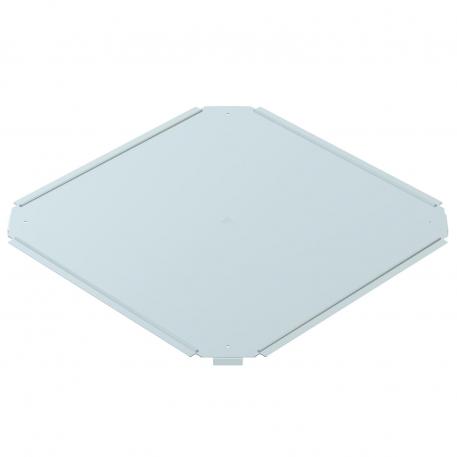

Cover, cross-over DD
Item no. 7027846 | EAN 4012197408572
- Product description
-
Product description
Cover for cross-over fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening through attachment of the section cover. Suitable for all side heights.
-
- Technical data
-
Technical data
Dimension B400mm Fastening type On top Material Steel Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 1 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Surface Strip galvanised zinc/aluminium, Double Dip Dimensions
Dimension B 400 mm Width 400 mm - All types
- Downloads
-
Data sheet RKD 400 DD / 7027846 , 0.17MB , pdfDeclaration of conformity RKD 400 DD / 7027846 , 0.15MB , pdfUK Declaration of Conformity RKD 400 DD / 7027846 , 0.14MB , pdfREACH Declaration of conformity RKD 400 DD / 7027846 , 0.12MB , pdfRoHS Declaration of conformity RKD 400 DD / 7027846 , 0.13MB , pdfSustainability report Sustainability report, cable support systems , 2.00MB , pdfSelection aid Auswahlhilfe Kabelrinnen, schraubbar , 2.17MB , pdfSelection aid Auswahlhilfe Kabelrinnen, Magic , 0.25MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdf
