Cover, cross-over DD
Item no. 7027844 | EAN 4012197408558
- Product description
-

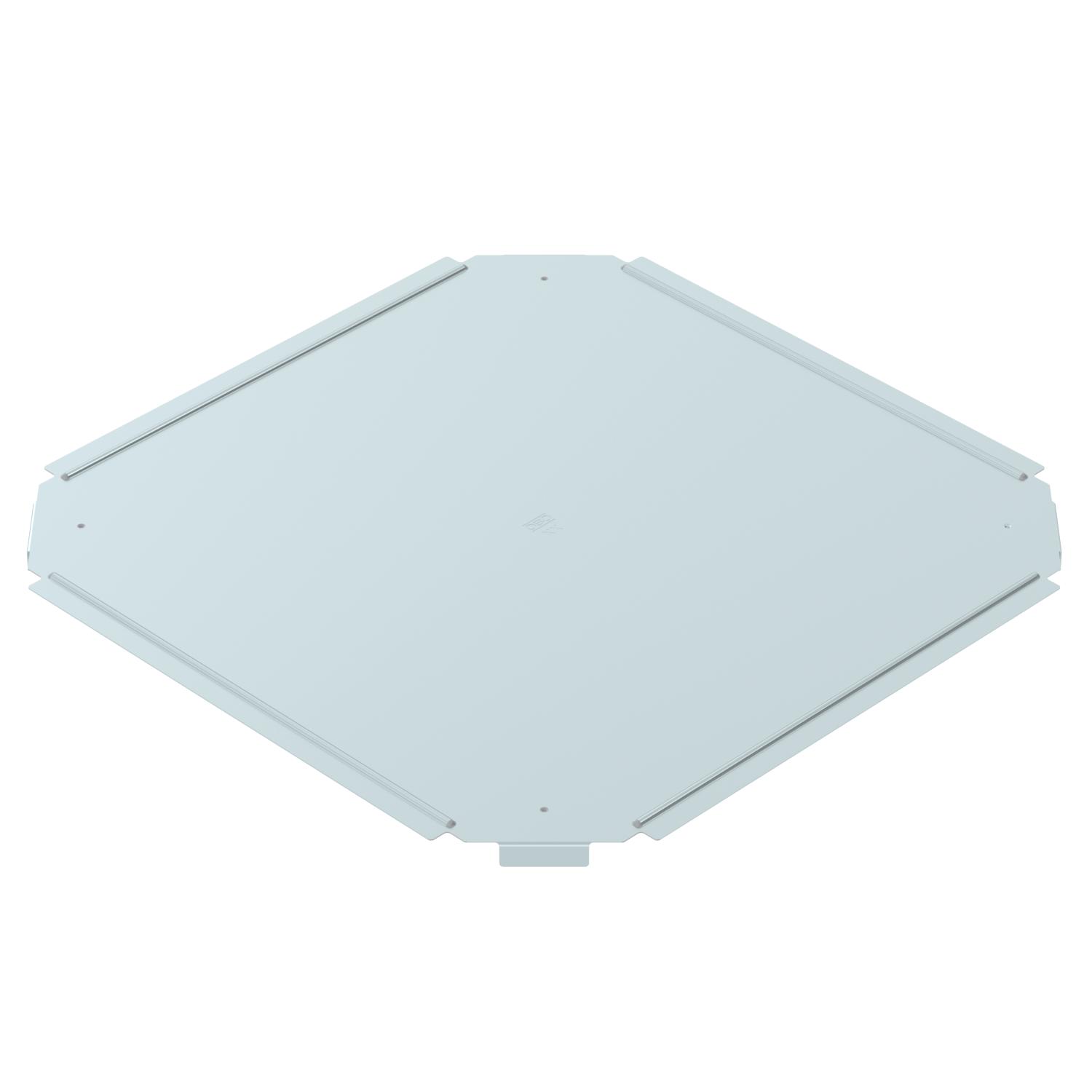

Product descriptionCover for cross-over fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening through attachment of the section cover. Suitable for all side heights.
-
- Technical data
-
Technical data

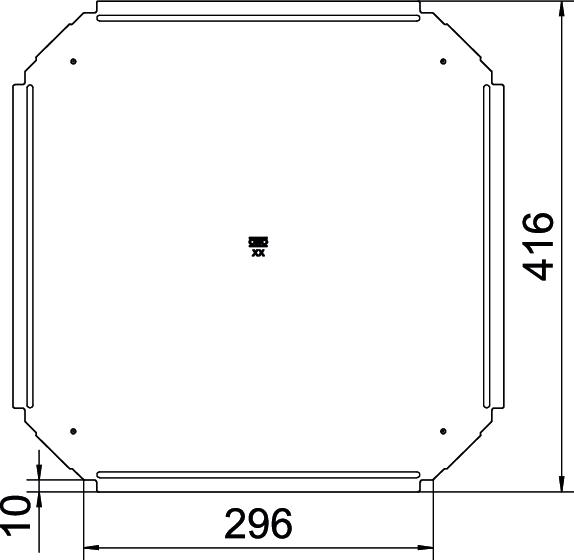

Colour zinc Dimension B300mm Dimension B 300 mm Fastening type On top Material Steel Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 0,75 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Surface Strip galvanised zinc/aluminium, Double Dip Width 300 mm - All types
- Downloads
-
Data sheet RKD 300 DD / 7027844 , 0.19MB , pdfEU declaration of conformity RKD 300 DD / 7027844 , 0.15MB , pdfUK Declaration of Conformity RKD 300 DD / 7027844 , 0.14MB , pdfREACH Declaration of conformity RKD 300 DD / 7027844 , 0.12MB , pdfRoHS Declaration of conformity RKD 300 DD / 7027844 , 0.13MB , pdfSelection aid Auswahlhilfe Kabelrinnen, schraubbar , 2.17MB , pdfSelection aid Auswahlhilfe Kabelrinnen, Magic , 0.25MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdfMounting instructions Schraubbare Kabelrinnen mit Formteilen zum Schrauben und Klemmen , 5.42MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
