Coupling KUPP 133
morepic-1 morepic-2 video-1

Coupling KUPP

Item no. 6288680 | EAN 4012195149071

6288680 / KUPP
133 mm
Product description
Product description

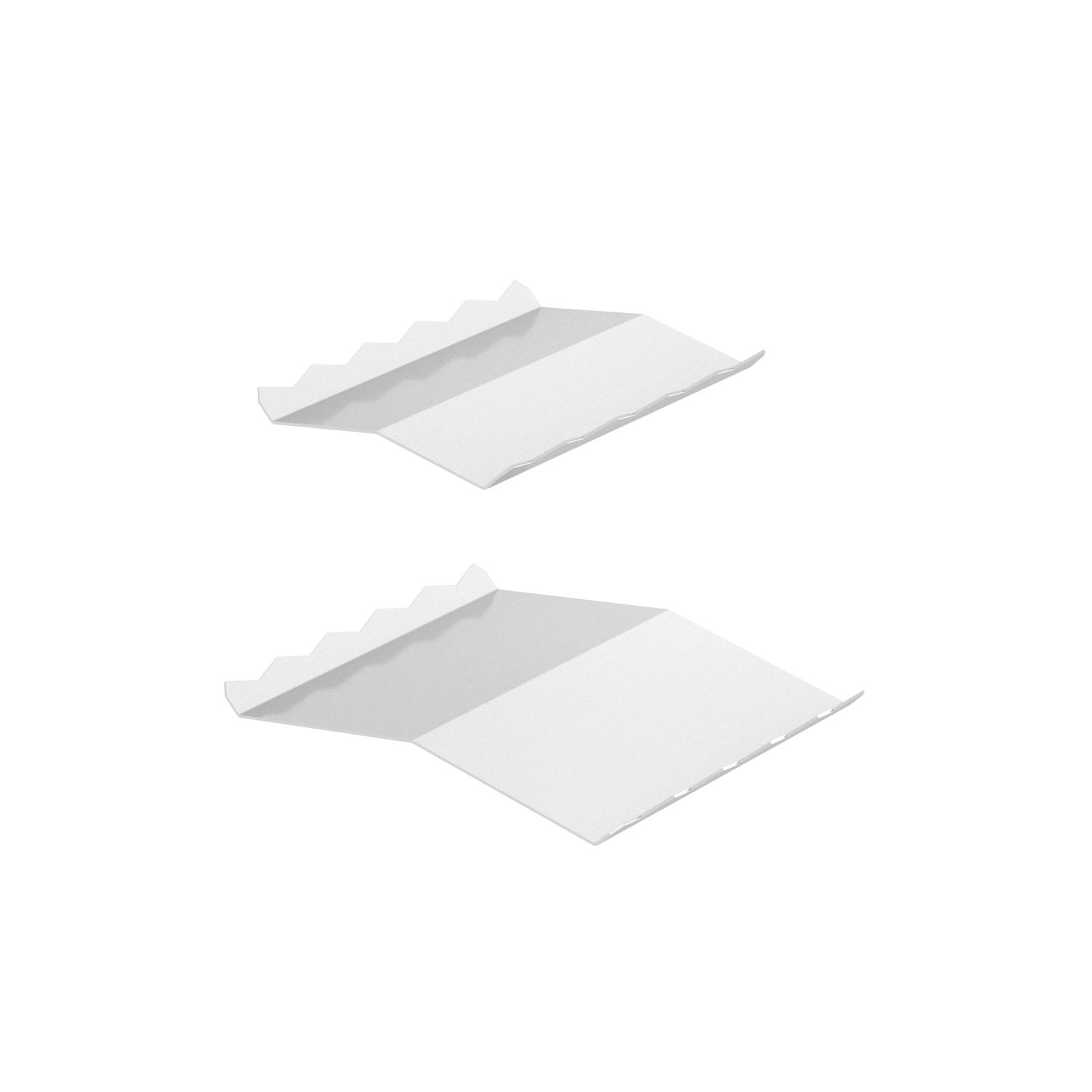

Coupling for connecting the trunking bases. This creates the equipotential bonding between the trunking bases.

The scope of delivery of a coupling includes 2 connection plates.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Dimension 133x105
Dimension a 105 mm
Dimension b 133 mm
Halogen-free yes
Length 133 mm
Material Stainless steel
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -25 °C
Protection rating IP30
Protection rating IK code IK10
Trunking depth 133 mm
Type coupling
Version for Universal
Width 105 mm
With equipotential bonding yes
All types

All types

Types Length Item no. Quantity SSU
KUPP 133 mm 6288680
1 piece
Downloads

Download

Download

EU declaration of conformity KUPP / 6288680 , 0.13MB , pdf
Download
UK Declaration of Conformity KUPP / 6288680 , 0.14MB , pdf
Download
REACH Declaration of conformity KUPP / 6288680 , 0.12MB , pdf
Download
RoHS Declaration of conformity KUPP / 6288680 , 0.12MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
