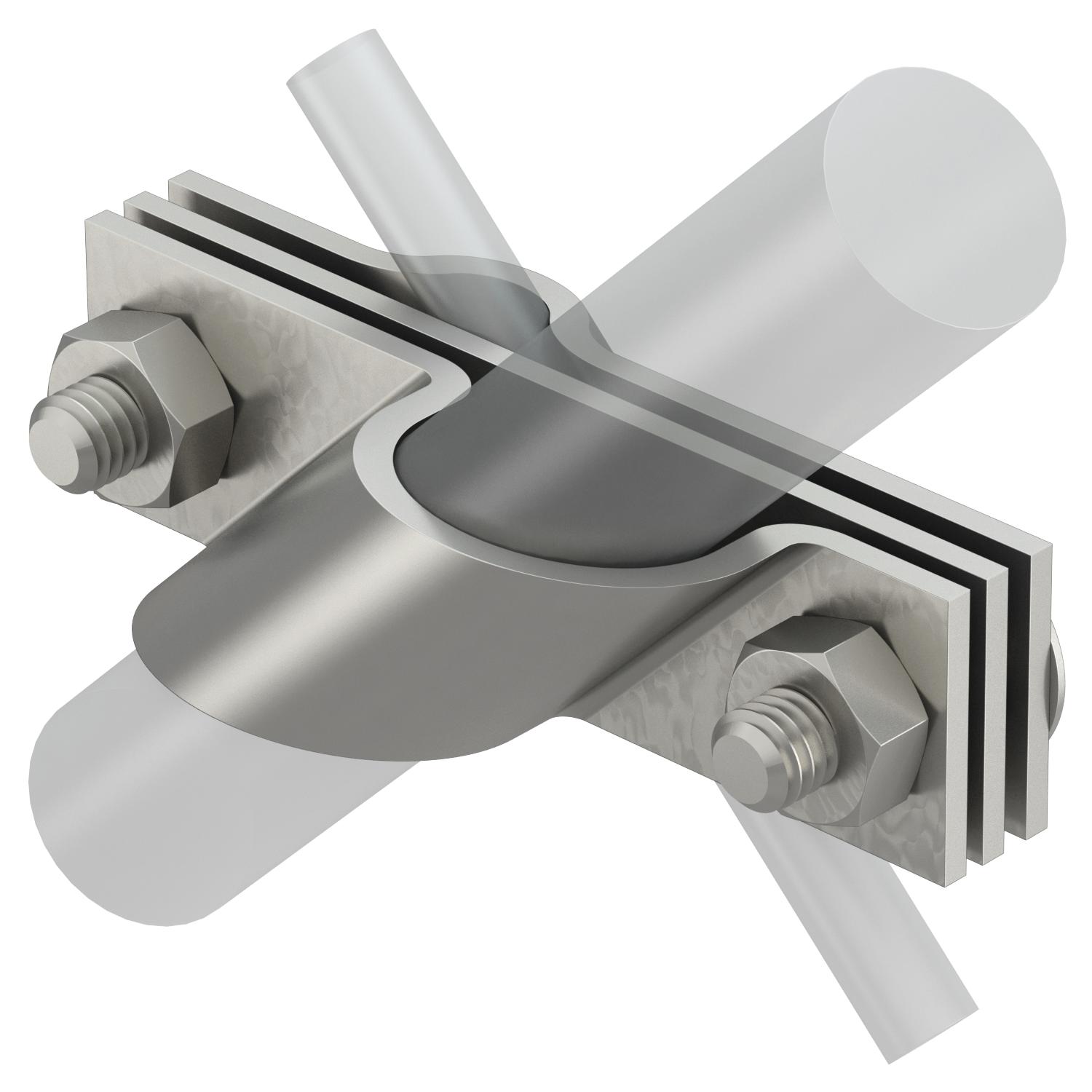

Connection clamp for earth rod, universal A4
Item no. 5001672 | EAN 4012195901259
- Product description
-
Product description• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• Suitable for connecting round conductors Rd 8-10 or flat conductors to FL 40
• With adapter plate
• Mounted with 2 hexagonal bolts M10 x 30 and 2 hexagonal bolts M10
-
- Technical data
-
Technical data

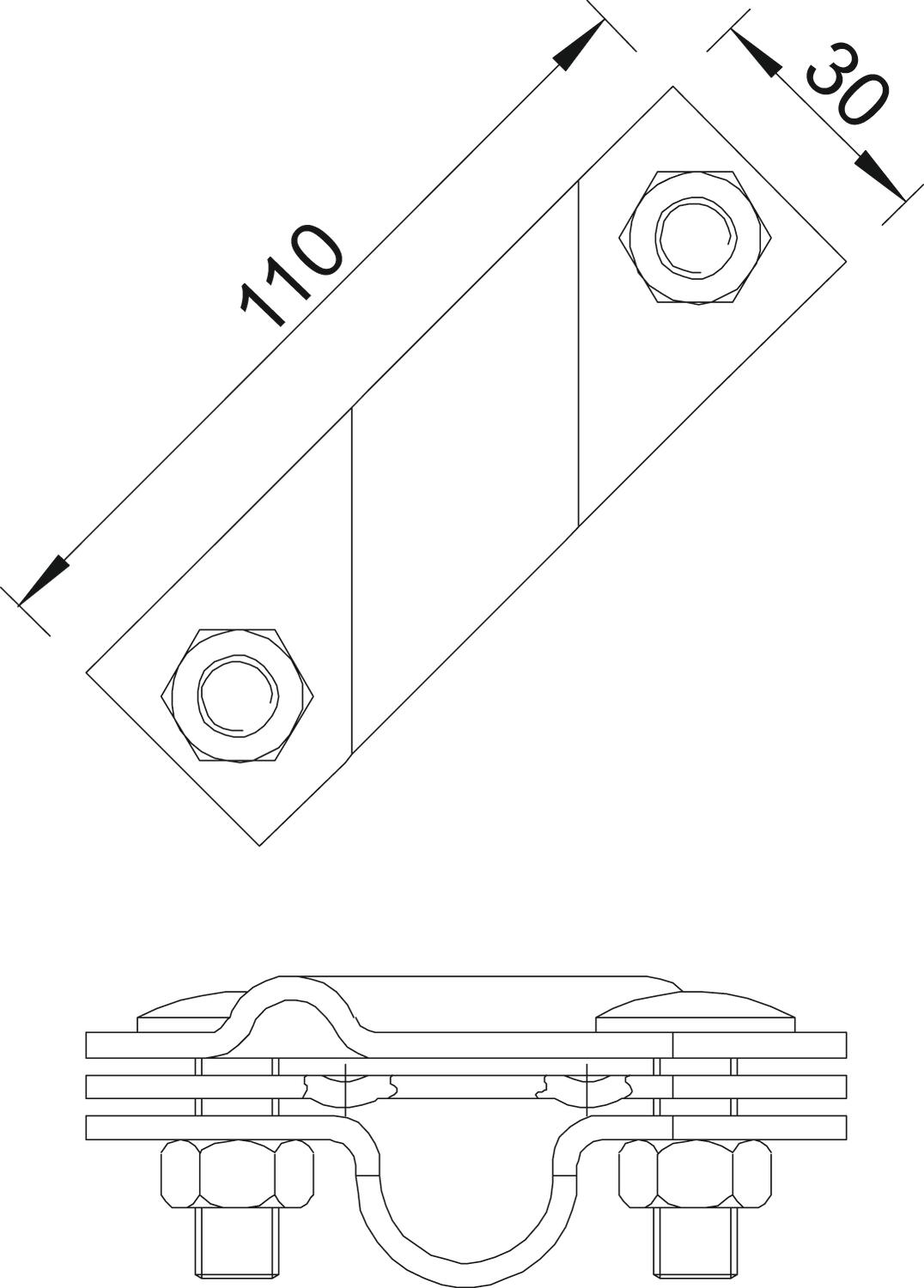

Clamping range, max. 10 mm Clamping range, min. 8 mm Dimension 25mm Dimension A 110 mm Earthing connection diameter 25 mm Fit Rd 8-10/FL40 mm for earth rods 25 mm Intermediate plate yes Material Stainless steel Suitable for flat conductor width max. 10 mm Suitable for flat conductor width min. 8 mm Suitable for round conductor diameters, max. 10 mm Suitable for round conductor diameters, min. 8 mm Type Connection clip - All types
- Downloads
-
Data sheet 2760 25 V4A / 5001672 , 0.21MB , pdfEU declaration of conformity 2760 25 V4A / 5001672 , 0.06MB , pdf
