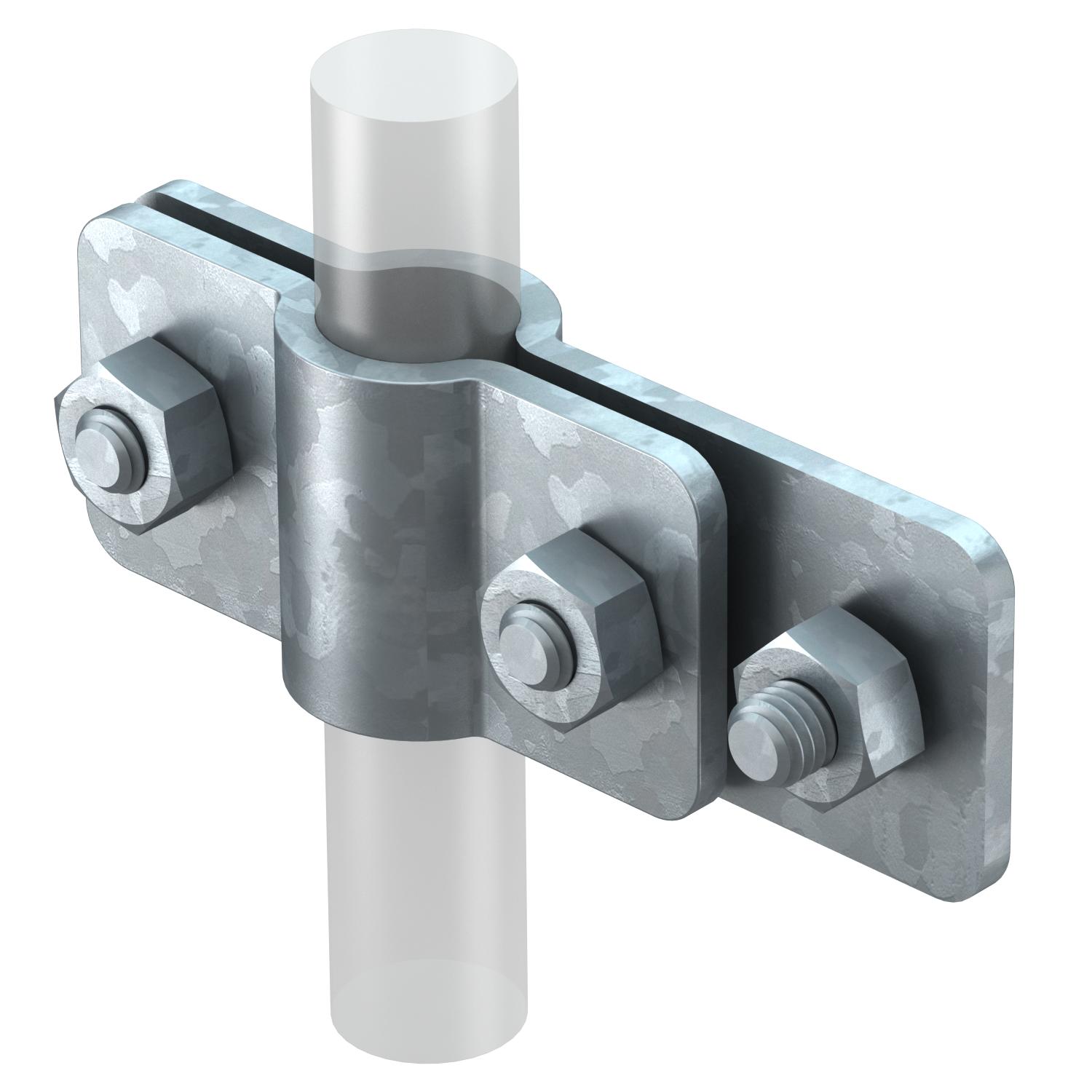

Connection clamp for earth rod on flat conductor FT
Item no. 5001416 | EAN 4012196560837
- Product description
-
Product description
• ST, BP, OMEX and LightEarth systems
• On flat conductors
• Including hex-head screw for attaching flat conductors
-
- Technical data
-
Technical data
Dimension 25mm Dimension A 89 mm Dimension B 119 mm Earthing connection diameter 25 mm for earth rods 25 mm Intermediate plate no Material Steel Short-circuit current (50 HZ)(1 s;≤300°C) 8,5 Surface Hot-dip galvanised Type Connection clip - All types
- Downloads
-
Data sheet 2730 25 M12 FT / 5001416 , 0.25MB , pdfDeclaration of conformity 2730 25 M12 FT / 5001416 , 0.06MB , pdfREACH Declaration of conformity 2730 25 M12 FT / 5001416 , 0.12MB , pdfRoHS Declaration of conformity 2730 25 M12 FT / 5001416 , 0.12MB , pdf
