Connecting bridge for V10 Compact 200 mm
Item no. 5089650 | EAN 4012195237341
- Product description
-
Product description

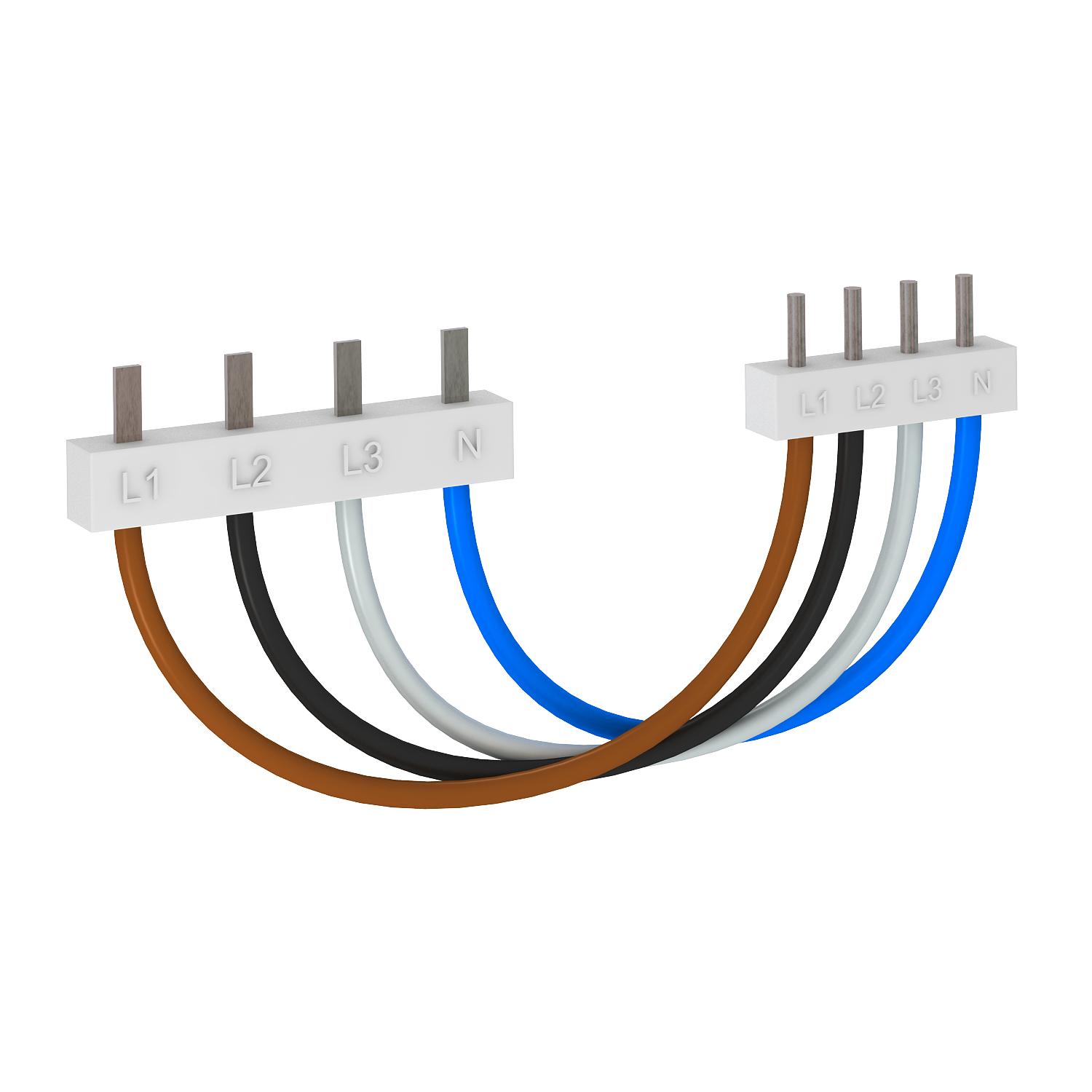

To bridge V10 Compact e.g. to FI protection switches in a 17.5 mm grid.
• 4-pole version (L1; L2; L3; N)
• Conductor: H07V-K 4 mm²
• V10 Compact connection via pin contact (diameter: 2.7 mm)
• FI protection switch connection via flat contact (4 x 1.5 mm)
-
- Technical data
-
Technical data

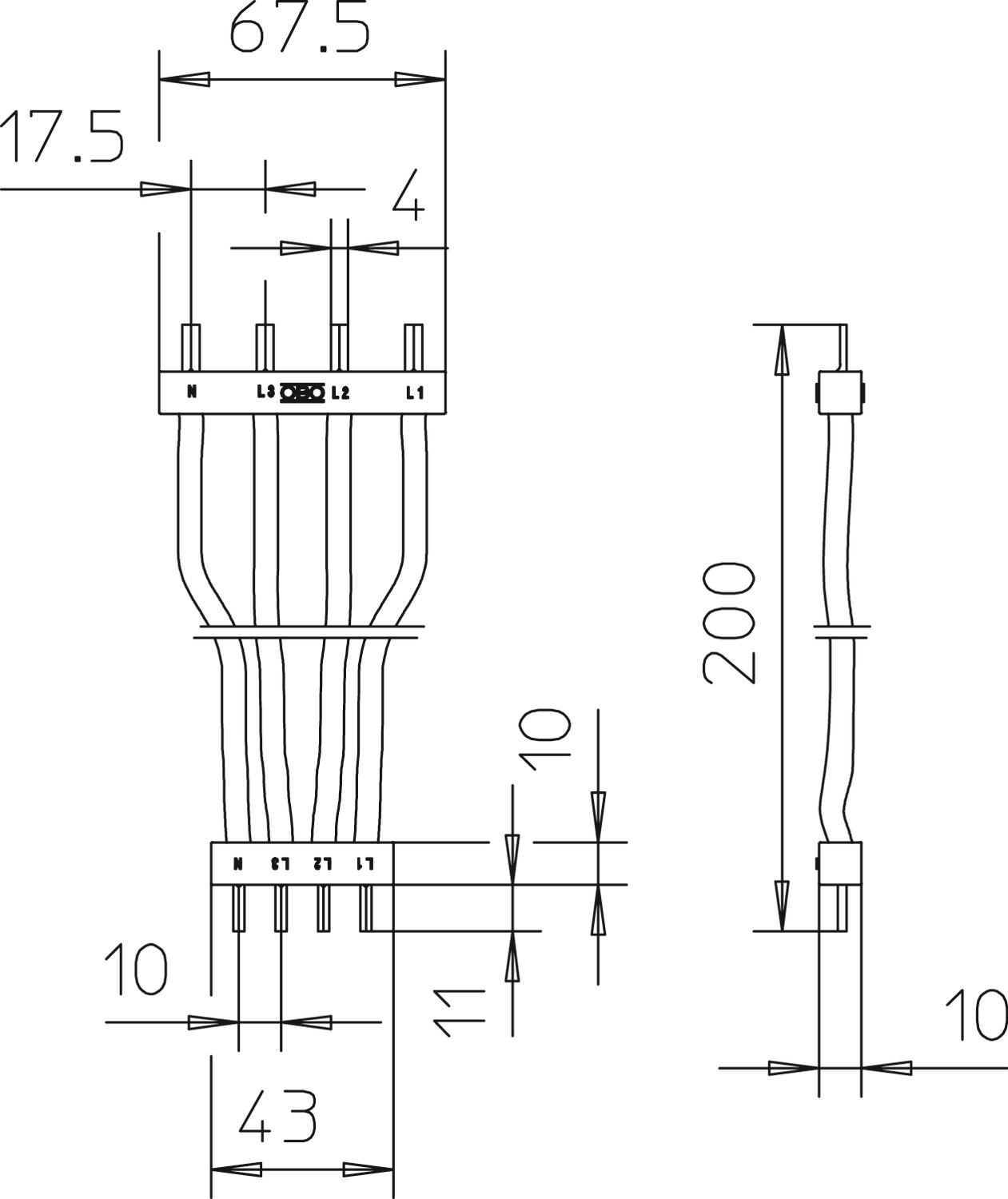

Connecting cable length 0,2 m Dimension 200mm Height 10 mm Length 200 mm Pole version 4 Protection rating IP20 Version for 200 mm Width 67,5 mm - All types
