Combined protection device 2in1 for CCTV camera systems | | | 8 | RJ45 8(8)

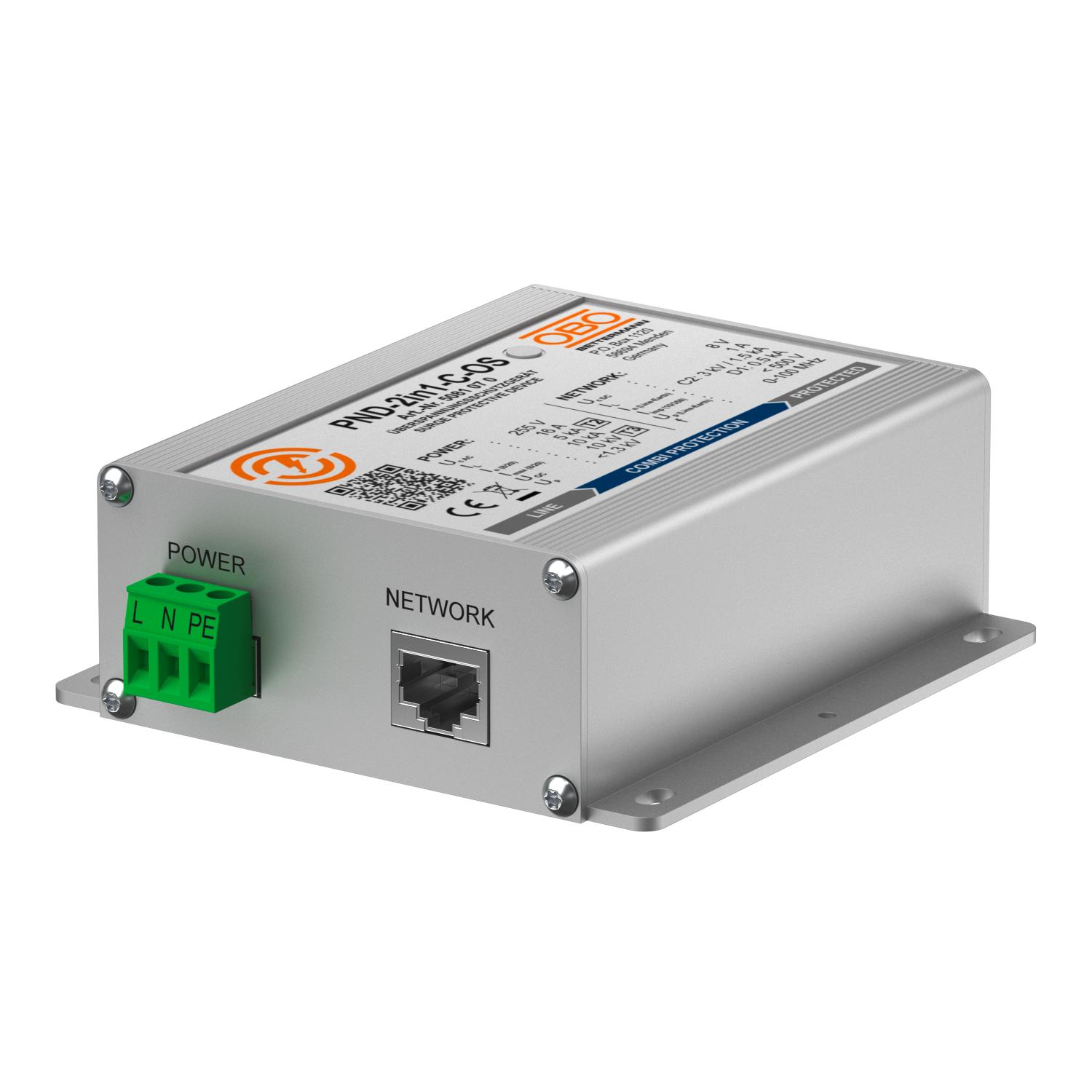

Combined protection device 2in1 for CCTV camera systems

Item no. 5081070 | EAN 4012196676965

Item no. / Types	5081070 / PND-2in1-C-OS

Maximum continuous voltage DC	8 V

Plug-in system	RJ45 8(8)

Product description

Product description

Combination protection device for IP-based TV/camera systems

• Protection of power and data interface in a single device

• In aluminium housing

• Simple mounting with adapter plug

• Two-stage protection circuit

• Three-pole power connection for the power interface

• RJ45 connection for the data interface

• With LED operation display (OS)

• Incl. DIN rail fastening set

Application: Protection of CCTV, video signals, (IP) cameras and/or TV systems

Technical data

Technical data

Cut-off frequency	100 MHz
Dimension	230V
Earthing via:	Connection cable / DIN rail
Height	37,1 mm
Impulse durability wire-earth	C2: 3 kV / 1,5 kA (8/20µs)
Impulse durability wire-wire	C1: 0,3 kV / 0,15 kA (8/20µs)
Kategorie	Type 1+2+3 / D1+C2+C1
Length	122,5 mm
Lightning protection zone LPZ	1→3
Maximum continuous voltage (L-N)	255 V
Maximum continuous voltage AC	5,65 V
Maximum continuous voltage DC	8 V
Maximum discharge current (8/20 μs)	10 kA
Nominal discharge current (8/20 µs)	5 kA
Permitted temperature range, max.	80 °C

Permitted temperature range, min.	-20 °C
Plug-in system	RJ45 8(8)
Protection level	<1,3 kV
Protection level wire-earth	<450 V
Protection level wire-wire	<40 V
Protection rating	IP20
Rated current	16 A
Screening	Direct
Shielding connection available	yes
SPD to EN 61643-11	Type 2+3
SPD to IEC 61643-1	Class II+III
SPD to IEC 61643-21	Class I+II+III / D1+C2+C1
Testing standard	IEC 61643-21
Width	100 mm
